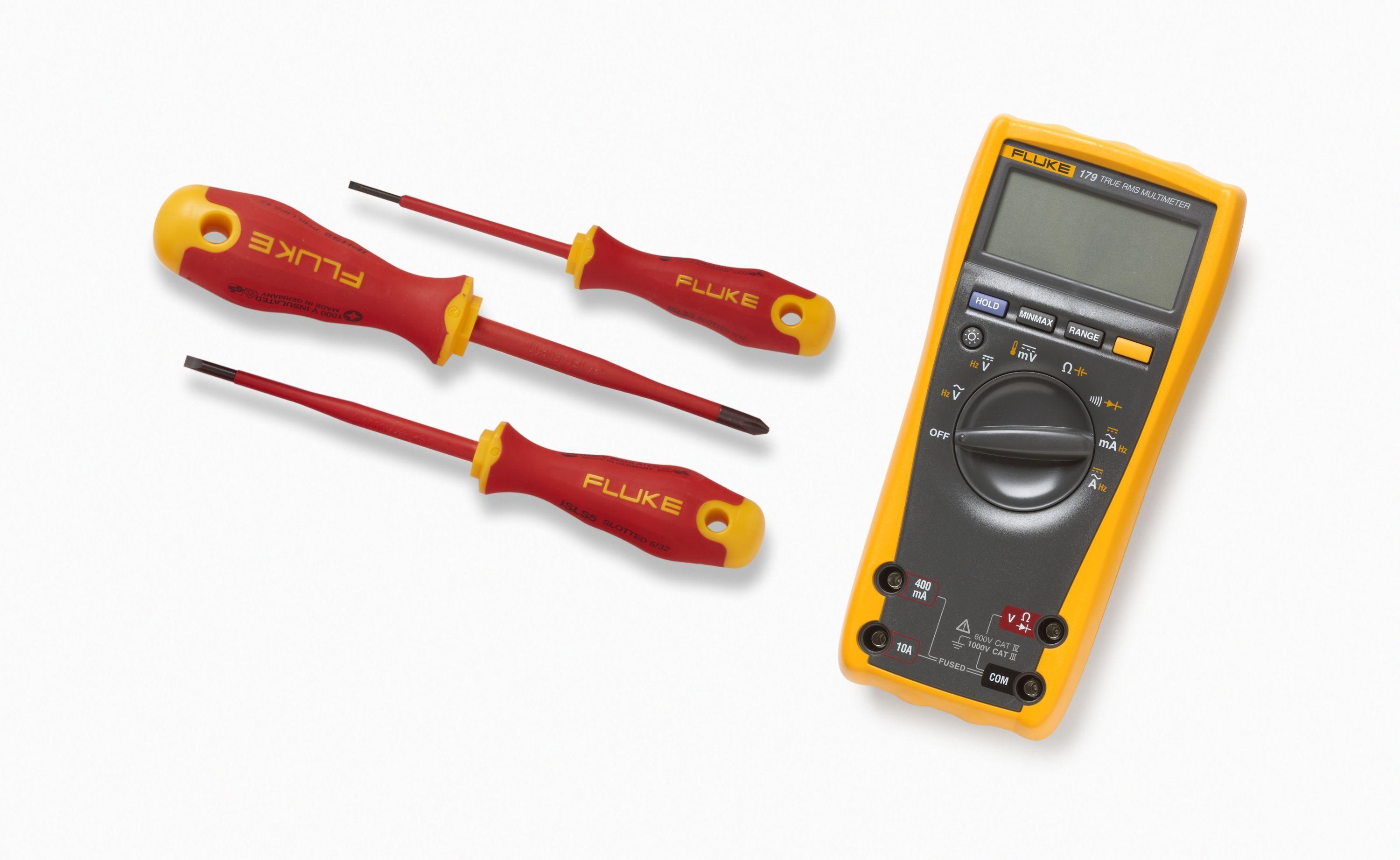

Fluke® FLUKE-179-ESFP Digital Multimeter, 1000 VDC/VAC, 10 A, 50 MOhm Measuring, 1000 V AC/DC, 10 A, 50 MOhm, Digital Display
Fluke® 179 True-RMS digital multi-meter is the preferred solution for professional technicians around the world. With all the features you need to troubleshoot and repair in electrical and electronic systems, the Fluke® 179 also offers a digital display with analog bar graph and built-in temperature measurements. Works when you need it, where you need it. You can trust the Fluke® 179 to get the job done in all of the messy, loud, high energy and high places you work. Backed by a lifetime warranty the Fluke® 179 is independently tested for safe use in CAT IV 600 V/CAT III 1000 V environments. The Fluke® 179 just one of Fluke® trusted tools.
-
BrandFluke®
-
UPC095969095204
-
Manufacturer Part NumberFLUKE-179-ESFP
-
CountryUSA
-
Capacitance10000 uF
-
Temperature Rating-10 to 50 deg C
-
MaterialHard Plastic
-
Measuring Range1000 VDC/VAC, 10 A, 50 MOhm
-
Frequency Rating100 kHz
-
Resistance50 MOhm
-
Accuracy2% + 3 (500 Hz to 1 kHz)
-
Voltage Rating1000 V AC/DC
-
Safety RatingEN 61010-1 to CAT IV 600 VAC/VDC, CAT III 1000 VAC/VDC
-
Amperage Rating10 A
-
Battery Type9 VDC Alkaline NEDA 1604/1604A
-
Dimensions7.28 in H x 3.54 in W x 1.7 in D
-
Diode TestYes
-
Display TypeDigital
-
Peak HoldNo
- Manual and automatic ranging
- Display hold and auto hold
- Frequency and capacitance measurements
- Minimum maximum/average recording
- Closed case calibration through front panel
- Ergonomic case with integrated protective holster
- Digital 6000 count, update 4/s, bar graph 33 segments, update 40/s
- Resistance range - 600 Ohm with accuracy of +/-(0.9% 2), 6 kOhm, 60 kOhm, 600 kOhm, 6 MOhm with accuracy of +/-(0.9% 1), 50 MOhm with accuracy of +/-(1.5% 3)
- Capacitance range 1000 nF, 10 uF, 100 uF with accuracy of +/-(1.2% 2), 9999 uF with accuracy of +/-10% typical
- Frequency range 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz with accuracy of (0.1% 1)
- 200 hr typical alkaline
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 6MR09 |
-
Alternative Part Number1564549|9652552
-
UNSPSC41113630
-
IDEA Index ID9652552
-
Package DescriptionBOX
-
Standards/ApprovalsCSA Certified|TUV File No. EN 61010|Australian N10140 Registered|EN 61010-1|UL Listed|ECCN: 3A992|PROP65: This product is in compliance with Prop65, it is not known to contain any chemicals associated with this regulation
-
Specification Sheet
