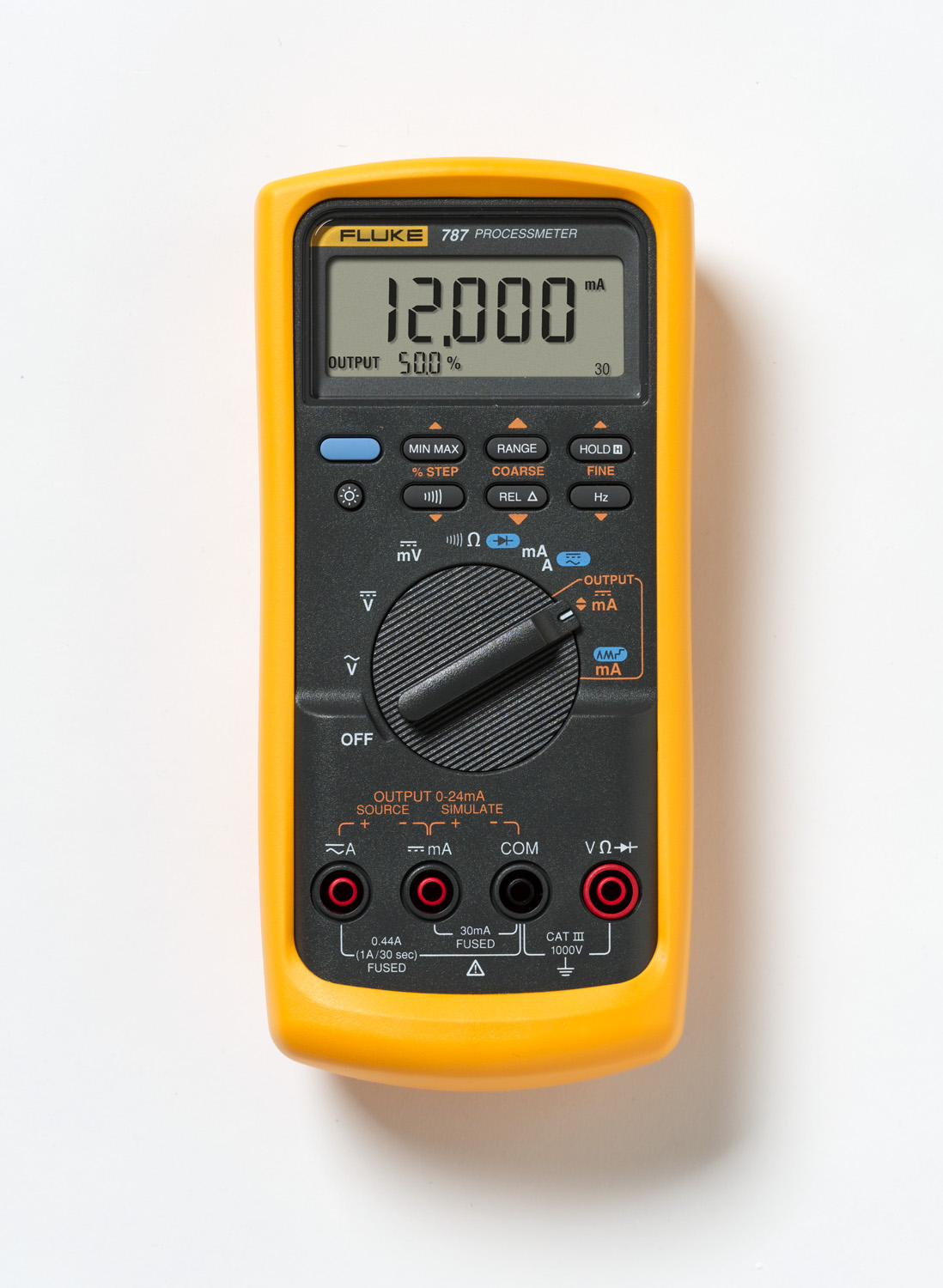

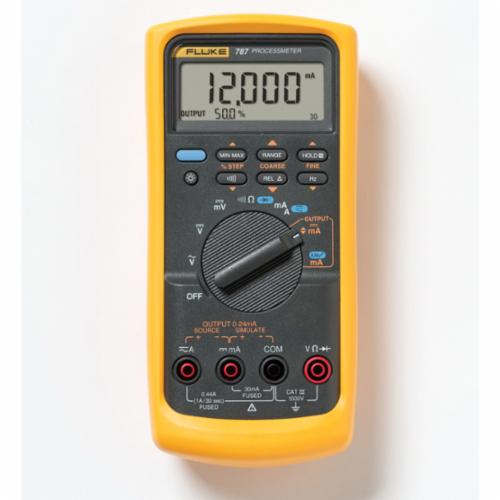

Fluke® ProcessMeter® FLUKE-787 Digital Multimeter, 1000 VDC/VAC, 1 A, 40 MOhm Measuring, 0 to 1000 VAC/VDC, 0 to 1 A, 40 MOhm, Backlit LCD Display
Fluke® 787 ProcessMeter®. Double your power. A maintenance and calibration tool that will be at home in every instrumentation technician's tool box, the Fluke® 787 ProcessMeter® combines a DMM and a Loop Calibrator in one rugged, handheld tool, for about what you would expect to pay for a loop calibrator alone. Based on the trusted Fluke® 87 DMM, the 787 adds the ability to measure, source, and simulate dc loop current with 0.05 accuracy and 1 microamp resolution.
-
BrandFluke®
-
UPC095969048323
-
Manufacturer Part NumberFLUKE-787
-
CountryUSA
-
Temperature Rating-20 to 55 deg C
-
MaterialPlastic
-
Measuring Range1000 VDC/VAC, 1 A, 40 MOhm
-
Frequency Rating19.999 kHz
-
Resistance40 MOhm
-
Accuracy0.1% rdg + 1 LSD VDC
-
Voltage Rating0 to 1000 VAC/VDC
-
Safety RatingCAT III
-
Amperage Rating0 to 1 A
-
Battery Type9 VDC Type ANSI/NEDA 1604A or IEC 6LR61 V
-
Dimensions6-1/4 x 3-1/2 x 9-1/2 in
-
Diode TestYes
-
Display TypeBacklit LCD
- DMM and loop calibrator in one tool
- Externally accessible battery for easy battery changes
- 1000 V overload protection on voltage, Ohm, frequency
- 150 V overload protection on mA, backed up by 440 mA 1000 V fuse
- 25% manual step plus auto step and auto ramp on mA output
- Simultaneous mA and% of scale readout
- Min/max/average/touchhold/relative modes
- Diode test and continuity beeper
- IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No. 1010.1-92, IEC 1010-1 CAT III
- 0.1% rdg + 1 LSD ( VDC) V accuracy
- Resistance range - 400 Ohm, 4 kOhm, 40 kOhm, 400 kOhm, 4 MOhm, 40 MOhm with accuracy of +/-(0.2% + 1 LSD)
- Frequency range 199.99 Hz, 1999.9 Hz, 19.999 kHz with accuracy of +/-(0.005% + 1 LSD)
- 50 hr typical (measurement), 12 hr typical (sourcing 12 mA)
- Clear LCD with backlight, 4000 count (30000 count for DC current) display
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 4KF01 |
-
Alternative Part Number619913
-
UNSPSC41113630
-
Package DescriptionBOX
-
Standards/ApprovalsECCN EAR99|CE Certified|CSA Certified|IEC 1010-1|ANSI/ISA S82.01-1994|CAN/CSA C22.2 No. 1010.1-92|IEC 1010-1
-
