Fluke® FLUKE-374/FC Wireless Clamp Meter, 600 A, 6000 Ohm, 10 to 100/100 to 500 Hz, 34 mm Jaw
The Fluke® 374 FC offers advanced troubleshooting performance and is now part of the Fluke® Connect® family of wireless test tools.
-
BrandFluke®
-
UPC095969798532
-
Manufacturer Part NumberFLUKE-374/FC
-
CountryUSA
-
Power Source(2) AA NEDA 15A IEC LR6 Batteries
-
Resistance6000 Ohm
-
TypeWireless
-
AC Current Accuracy2% +/-5 Digits, 2.5% +/-5 Digits, 3% +/-5 Digits
-
Voltage Accuracy1.5% +/-5 Digits, 1% +/- 5 Digits
-
Safety RatingCAT IV 600 VAC, CAT III 1000 VAC
-
Dimensions249 mm L x 85 mm W x 45 mm H
-
Display TypeBacklit
-
Jaw Capacity34 mm
-
Operating Temperature14 to 122 deg F
-
Electrical Ratings600 A
-
Frequency Rating10 to 100/100 to 500 Hz

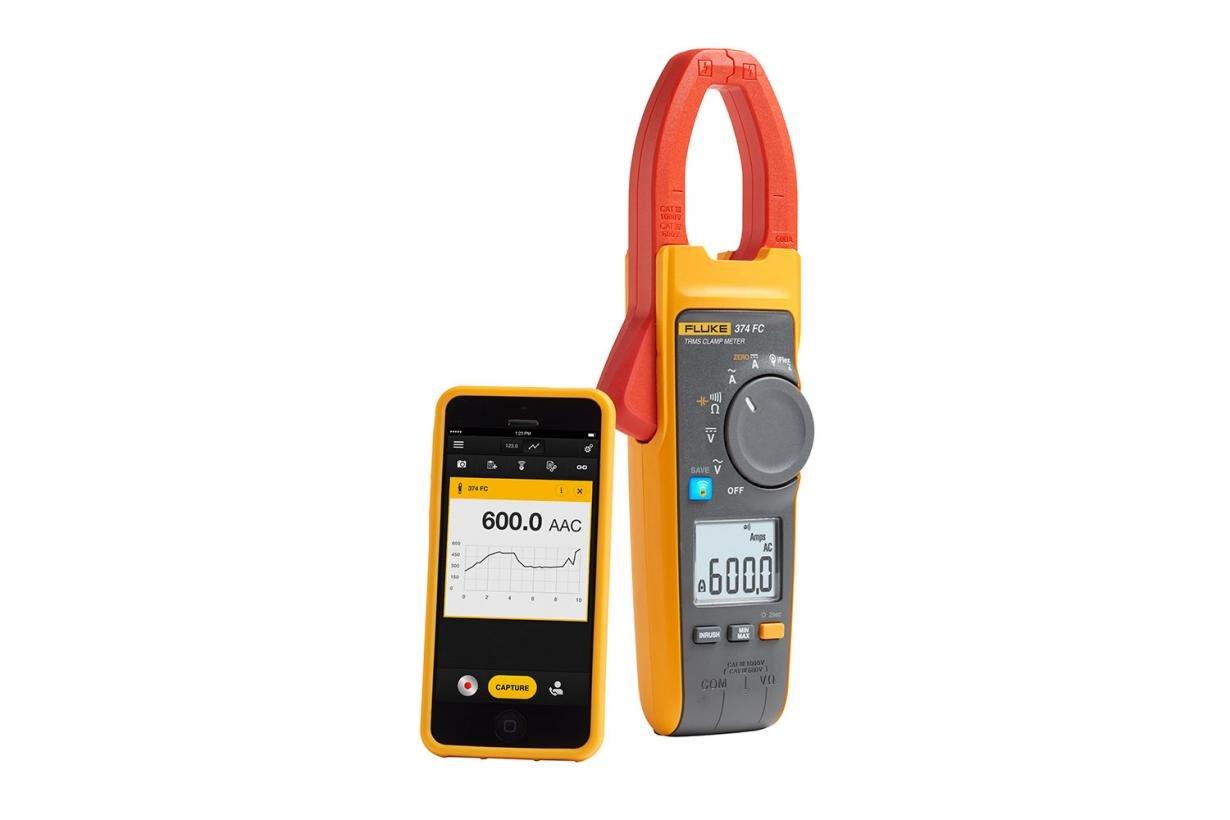

- Connect your meter to your smartphone with Fluke® connect measurements

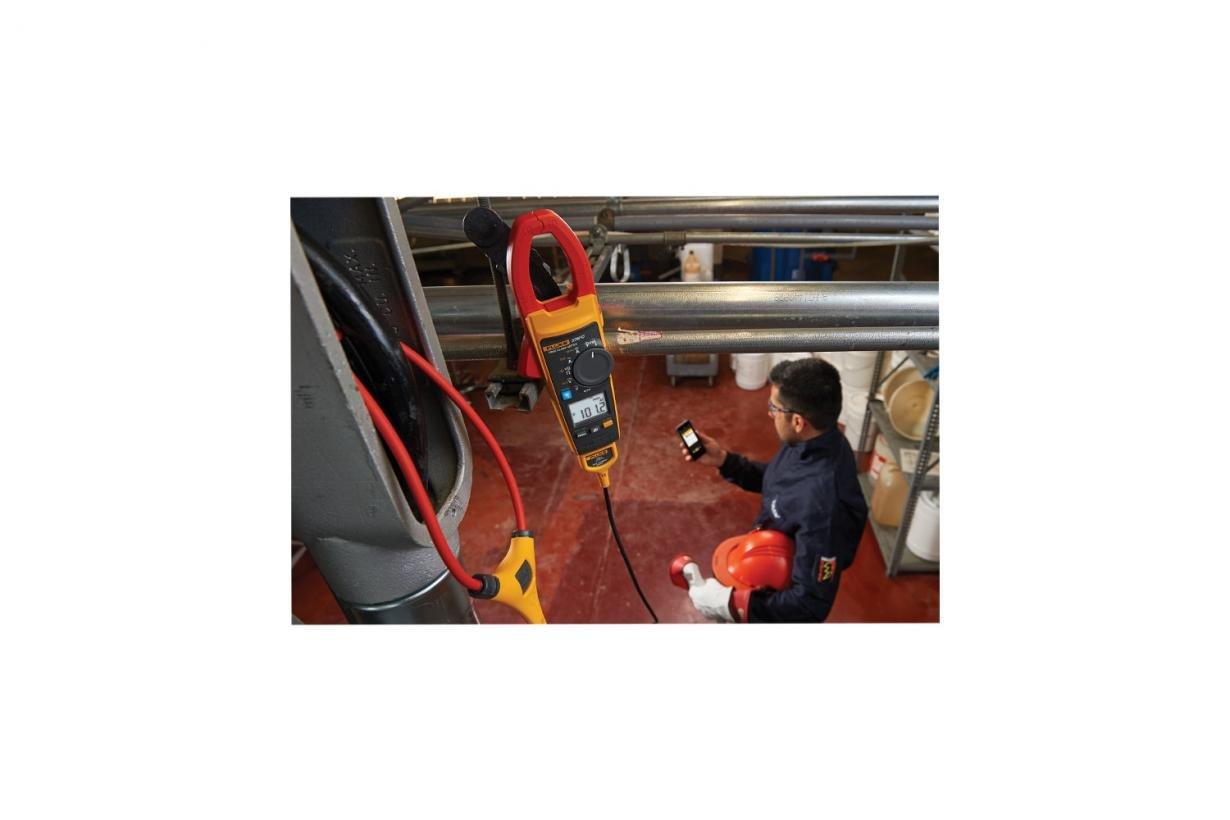

- Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
- Record results directly to your phone and the cloud
- Create and share reports from the field via email or converse in real time with share live video calls
- Compatible with iFlex® flexible current probe, use to expand the measurement range to 2500 A AC, provides access to large conductors in tight spaces
- Compatible with TPAK magnetic hanging strap
- Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees It
- -40 to 60 deg C storage temperature
- IP30 protection rating
- 600 A AC and DC current measurement
- 2500 A AC current measurement with iFlex® flexible current probe
- 1000 VAC/VDC voltage measurement
- True-RMS voltage and current for accurate measurements on non-linear signals
- Resistance measurement to 6000 Ohm with continuity detection
- 600 A AC current via jaw/2500 A AC current via flexible current probe
- 0.1 A resolution via jaw/flexible current probe
- 1% +/-5 digits resistance accuracy
- 1000 uF capacitance measurement
- 0.1 uF </=100 uF, 1 u F </=1000 uF resolution capacitance
- Log and trend measurements and pinpoint intermittent faults
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 45MU56 |
-
UNSPSC41113637
-

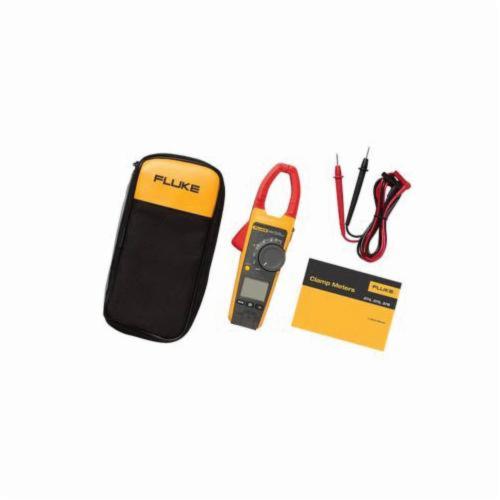

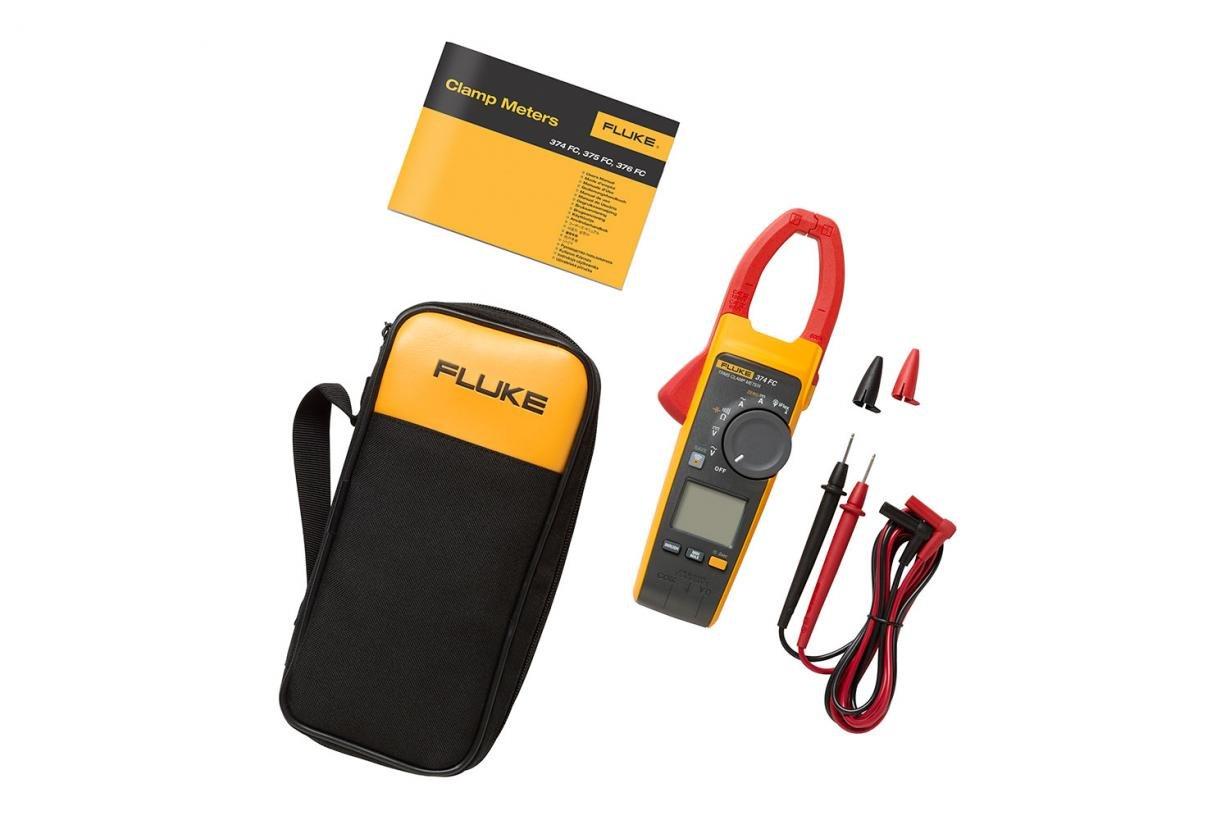

IncludesCoated Instruction Card, Safety Information Sheet, Soft Carrying Case, TL75 Test Leads and (2) AA Alkaline Batteries
-
Standards/ApprovalsCE Marking|CSA Certified|ECCN: 3A992|TUV Approved
-
Warranty3 years Limited
-
Alternative Part Number4696001
-
Package DescriptionCARTON
-
Owners/User Manual
