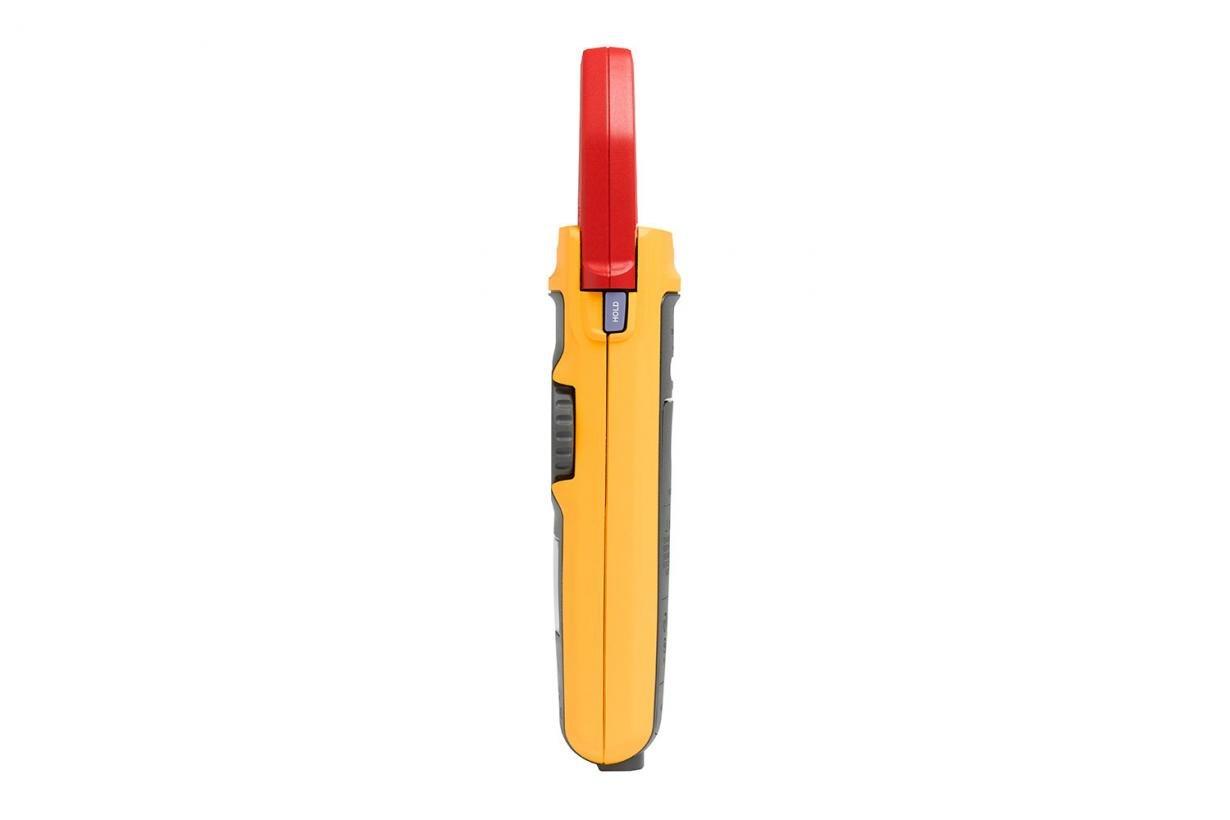

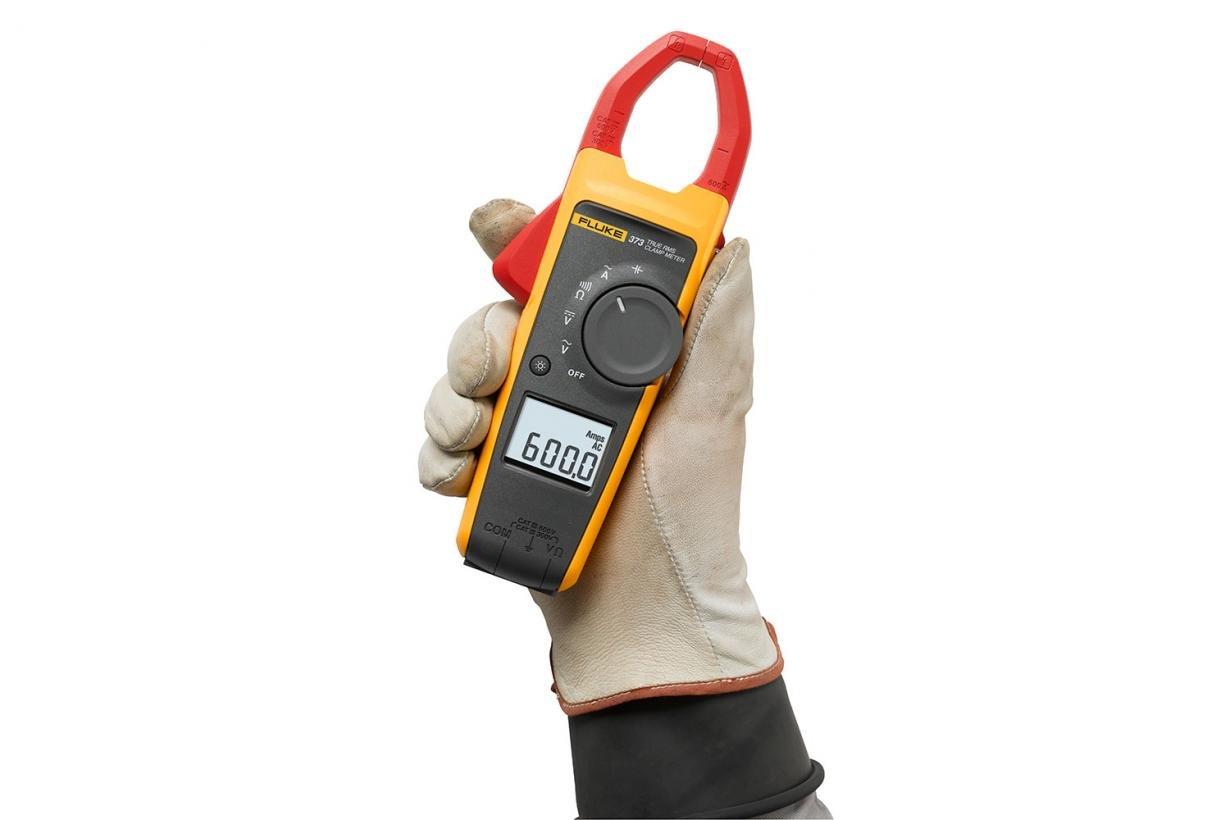

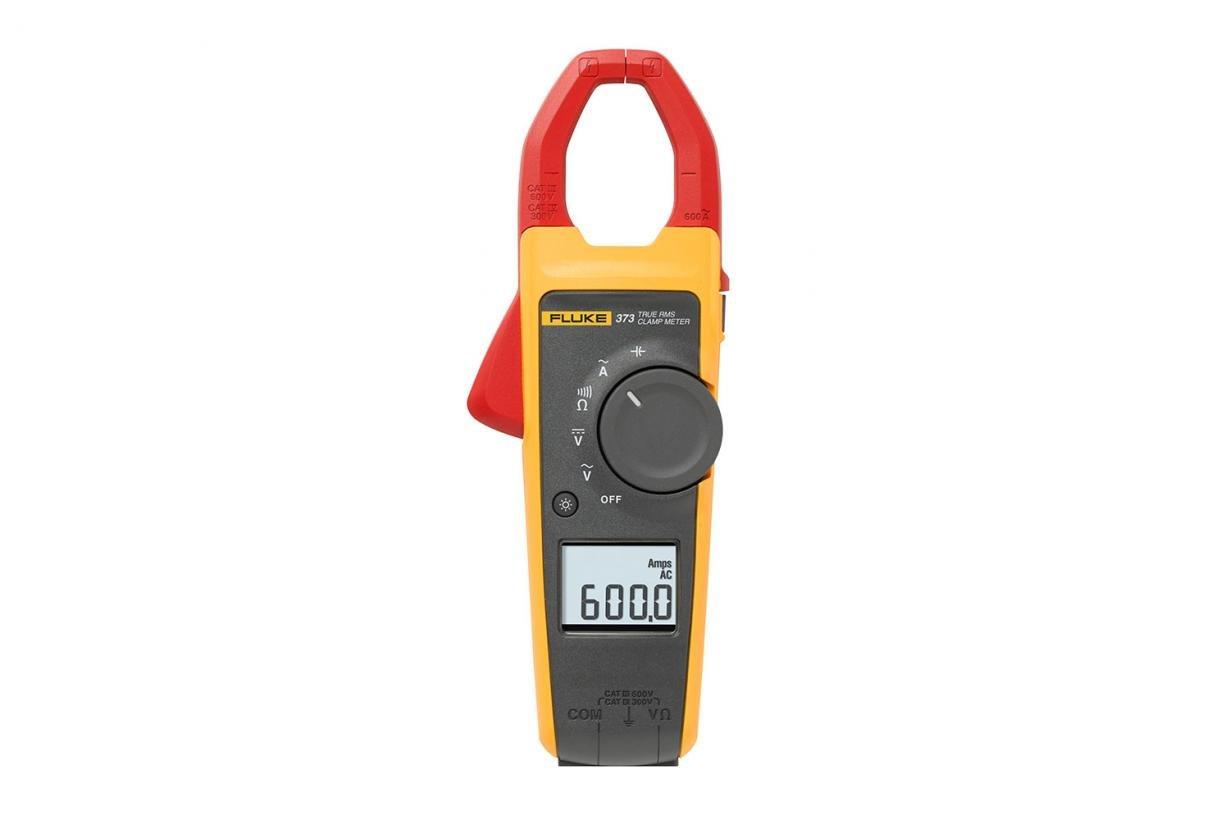

Fluke® FLUKE-373 Clamp Meter, 600 A, 600 VAC/VDC, 6000 Ohm, Dual Backlit Display
The new Fluke® 373 clamp meter offers improved performance perfect for any AC only current measurement situations. Featuring True-RMS AC voltage and current measurements and resistance measurement up to 6000 Ohm with continuity detection, the Fluke® 373 is everything you need, plus a little more.
-
BrandFluke®
-
UPC095969557832
-
Manufacturer Part NumberFLUKE-373
-
CountryUSA
-
MaterialHard Plastic
-
Resistance6000 Ohm
-
AC Current Accuracy2% +/-5 Digits at 600 A
-
Voltage Accuracy1% +/-5 at 600 VAC, 1% +/- 5 at 600 VDC
-
Safety RatingCAT III 600 VAC, CAT IV 300 VAC
-
Dimensions9.13 in L x 3.35 in W x 1.77 in H
-
Display TypeDual Backlit
-
Operating Temperature-10 to 50 deg C
-
Electrical Ratings600 A, 600 VAC/VDC
- True-RMS AC voltage and current for accurate measurements on non-linear signals, hard plastic enclosure type
- State-of the art signal processing allows for use in noisy electrical environments while providing stable readings
- Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
- With True-RMS AC voltage and current measurements, the Fluke® 373 clamp meter reads up to 600 A AC and 600 VAC/VDC
- 2 deg pollution
- 6000 Ohm at 1% +/-5 digits accuracy
- <=30 Ohm continuity, 10 uF to 1000 uF capacitance
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 6FXH7 |
| Grainger | 6FXH7 |
-
Alternative Part Number3780249
-
UNSPSC41113637
-

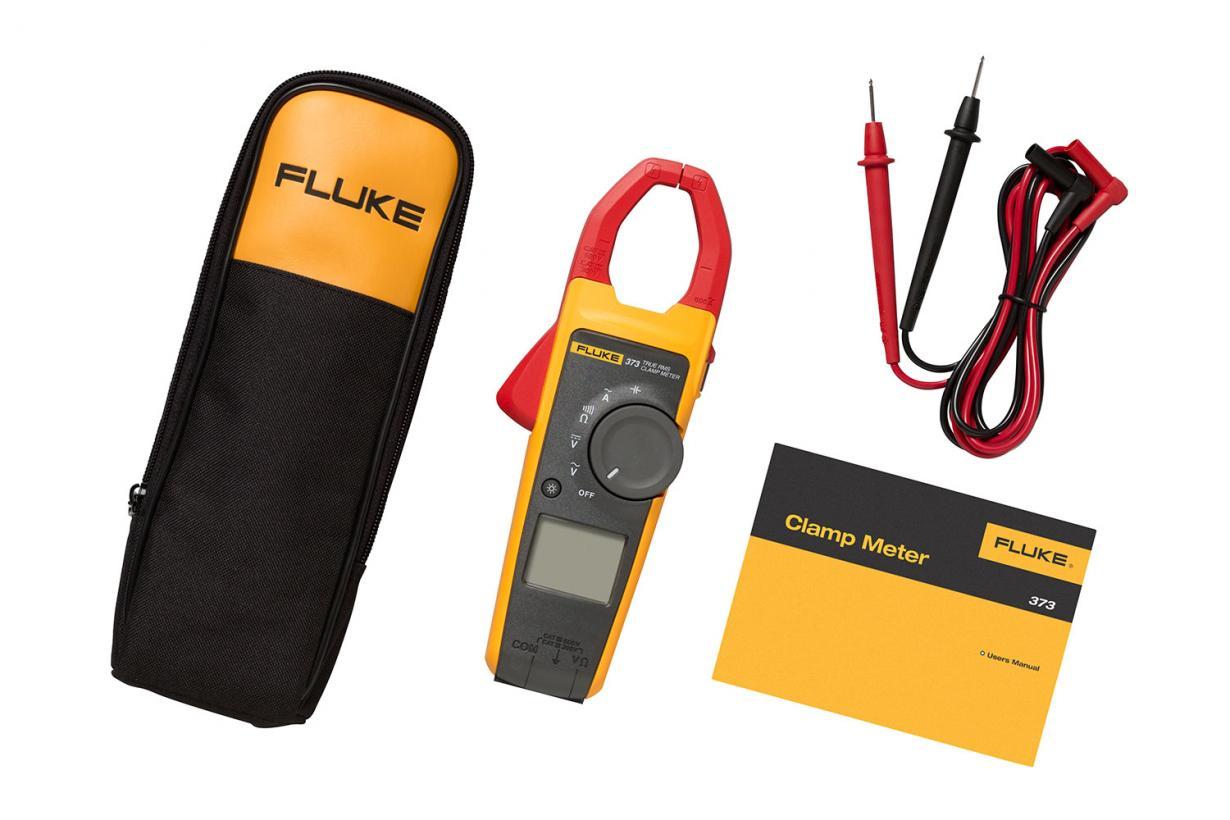

IncludesSoft Carrying Case
-
Standards/ApprovalsANSI/ISA S82.02.01:2004|CAN/CSA C22.2 No. 61010-1-04|CSA C22.2 No 61010-1-04|ECCN 3A992|EN/IEC 61010-031-2002/A1-2008|EN/IEC 61010-2-32:2002|IEC/EN 61010-1-2001
-
Owners/User Manual
