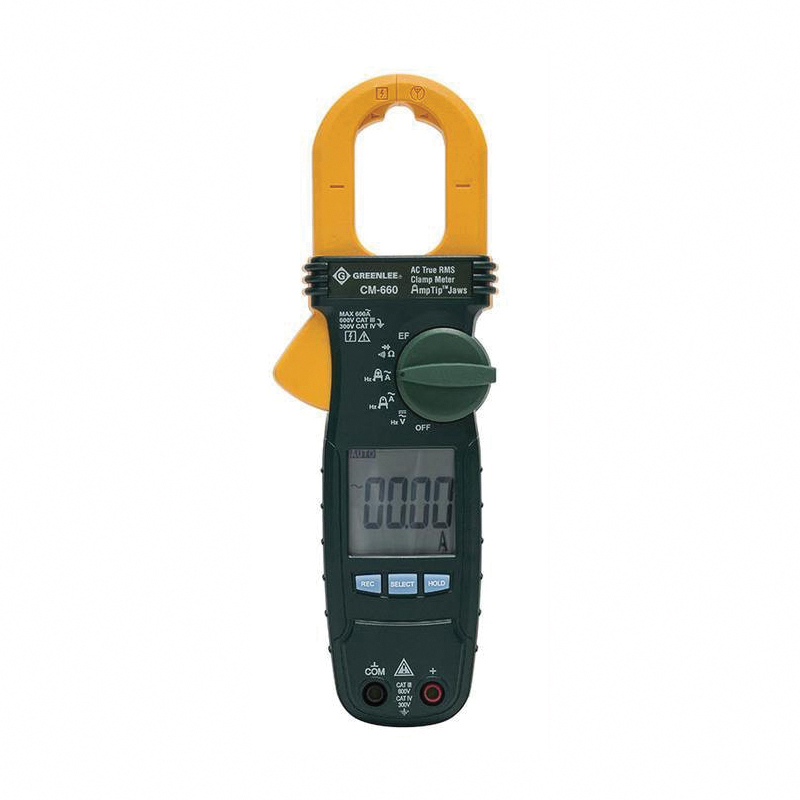

Greenlee® CM-660 AC True RMS Clamp Meter, 600 V AC/DC, 60/600 A, 600 Ohm/6/60 kOhm, 50/60 Hz, 1.18 in Jaw, LCD Display
-
BrandGreenlee®
-
UPC783310022114
-
Manufacturer Part NumberCM-660
-
CountryUSA|Canada
-
Power Source1.5 V DC AAA Battery
-
Frequency Rating50/60 Hz
-
Resistance600 Ohm/6/60 kOhm
-
TypeAC True RMS
-
Safety RatingCAT III 600 V AC/CAT IV 300 V AC
-
Counts6000
-
Display TypeLCD
-
Jaw Capacity1.18 in
-
Electrical Ratings600 V AC/DC, 60/600 A
- Measures AC current
- AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
- Also allows linemen to measure DC voltage, resistance and frequency
- Tests continuity and diodes
- AmpTip increases accuracy on small wires and low current
- Two voltage detection modes - non-contact or using a single test lead
- Data hold
- Measurement tool accurately records Maximum, Minimum, and Average readings
-
Alternative Part Number13623154
-
UNSPSC41113630
-
IDEA Index ID13623154
-
Standards/ApprovalsARRA Compliant|cULus Listed|CE Certified
-
WarrantyLimited Lifetime
-
