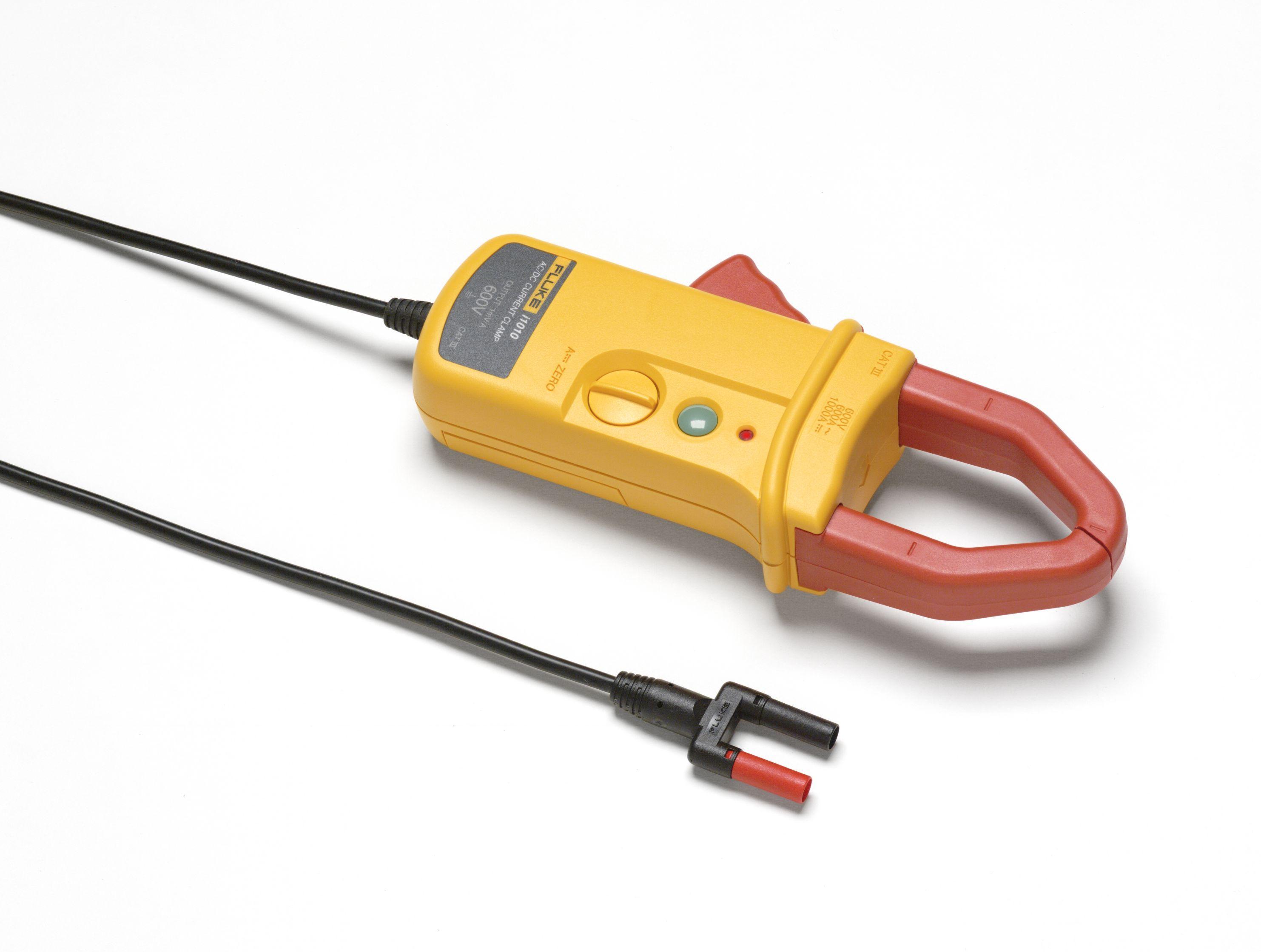

Fluke® I1010 AC/DC Current Clamp, 600/1000 A/600 VAC, 10 kHz
Fluke current clamps extend the current ranges of Fluke tools. The Fluke i1010 AC/DC current clamp is highly reliable, measures 1A to 1000A and provides accurate current reading without breaking the circuit. This clamp measures both ac and dc current with a large jaw, battery-powered Hall-effect probe that gives access to difficult to reach areas. Compatible with most Fluke multimeters.
-
BrandFluke®
-
UPC095969048200
-
Manufacturer Part NumberI1010
-
CountryUSA
-
Power Source9 VDC Alkaline Battery
-
Frequency Rating10 kHz
-
TypeAC/DC
-
AC Current Accuracy2% + 0.5 A at 45 to 400 Hz/3 % + 0.5 A at 400 Hz to 2 kHz
-
Safety RatingCAT III 600 VAC
-
Dimensions8.21 in L x 1.87 in W x 3.09 in H
-
Operating Temperature14 to 122 deg F
-
Electrical Ratings600/1000 A/600 VAC
- 1 to 600 A AC, 1 to 1000 A DC continuous current
- 1000 A maximum non-destructive current
- 0.5 A lowest measurable current
- DC to 10 kHz useable frequency
- 1 mV/A output levels
- 60 hr battery life
- 30 mm maximum conductor diameter
- 2 x 25 mm maximum conductor size
- 1.6 m output cable length
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 4KF11 |
-
Alternative Part Number617735|9652393
-
UNSPSC41111905
-
IDEA Index ID9652393
-
Package DescriptionBOX
-
Standards/ApprovalsCAN/CSA C22.2 No 61010-1/No 61010-2-032|CE IEC-61010-1/IEC-61010-02-032
-
Warranty1 Year
-
