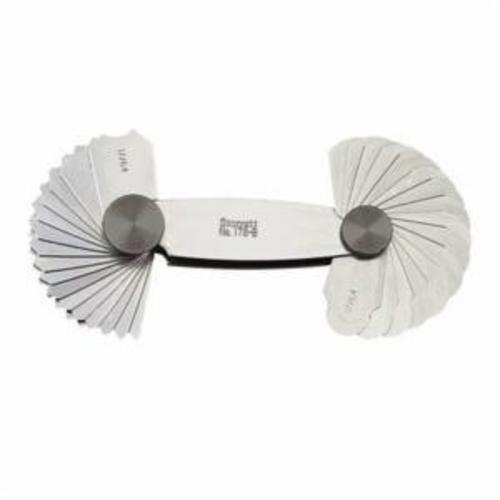

Starrett® 178B Fillet/Radius Gage With Locking Device, 17/64 to 1/2 in, 32 Leaves, Stainless Steel
The Starrett 178 Series Fillet or Radius Inch Reading Gages are very useful for tool and diemakers, machinists, screw machine operators, patternmakers and other mechanics to lay out and check radii of tools, dies, patterns, and more. 32 Leaves, 17/64-1/2" Range, 64ths increments.
-
BrandStarrett®
-
UPC049659506662
-
Manufacturer Part Number178B
-
CountryUSA
-
MaterialStainless Steel
-
Measuring Range17/64 to 1/2 in
-
Graduations64ths
-
Series178
-
Number of Leaves32
-
Dimensions2-43/64 in H x 41/64 in W
- Made of nicely finished, high quality steel
- 17/64-1/2 in concave and convex reading
- Any one of the leaves can be securely locked in position by a locking device
- Each gage has leaves for measuring both concave and convex radii, with each leaf stamped with the radius size
- Millimeter system of measurement
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 30A738 |
| Fastenal | 3123844 |
-
Alternative Part Number50666
-
UNSPSC41111600
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
-
Full Engineering Drawing
