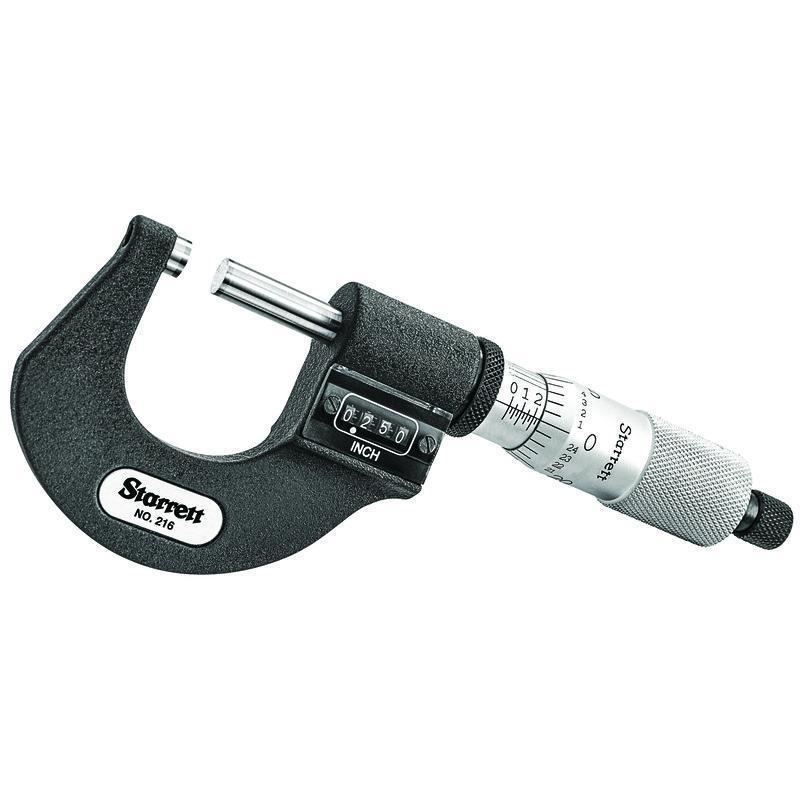

Starrett® T216XRL-1 Mechanical Digital Outside Micrometer, 0 to 1 in, Graduations: 0.0001 in, Carbide Tip, Black Frame/Satin Chrome Thimble
The Starrett 216 Digital Micrometer is a mechanical digital micrometer - simple to use even by the inexperienced. The anvil and spindle are sized at .250" (6.35mm). 1", .0001" Grad, Carbide Faces, Ratchet Stop, Lock Nut.
-
BrandStarrett®
-
UPC049659559590
-
Manufacturer Part NumberT216XRL-1
-
CountryUSA
-
FinishBlack Frame/Satin Chrome Thimble
-
Thimble TypeRatchet
-
MaterialCarbide Tip
-
Measuring Range0 to 1 in
-
Resolution0.0001 in
-
TypeMechanical Digital
-
Graduations0.0001 in
-
Accuracy+/-0.00005 in
-
Anvil TypeFlat
-
Series216
-
Dimensions5-15/32 in L x 23/32 in W x 2-11/64 in H
-
Spindle Diameter1/4 in
-
Spindle TypeFlat
- Clear, easily read numbers reduce errors
- Balanced frame design for comfortable and accurate measuring
- Gracefully designed tapered frame for use in narrow slots and tight places
- Micro-lapped measuring faces
- Ring-type knurled lock nut for quick and sure locking
- The anvil and spindle are sized at .250 in (6.35mm)
- Extremely hard and stable one-piece spindle
- Combination ratchet and speeder for uniform pressure and quicker adjustment
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 2ZTY7 |
| MSC | 86407806 |
| Fastenal | 0324707 |
-
Alternative Part Number55959
-
UNSPSC41111601
-
Standards/ApprovalsPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
-
Package DescriptionEACH
