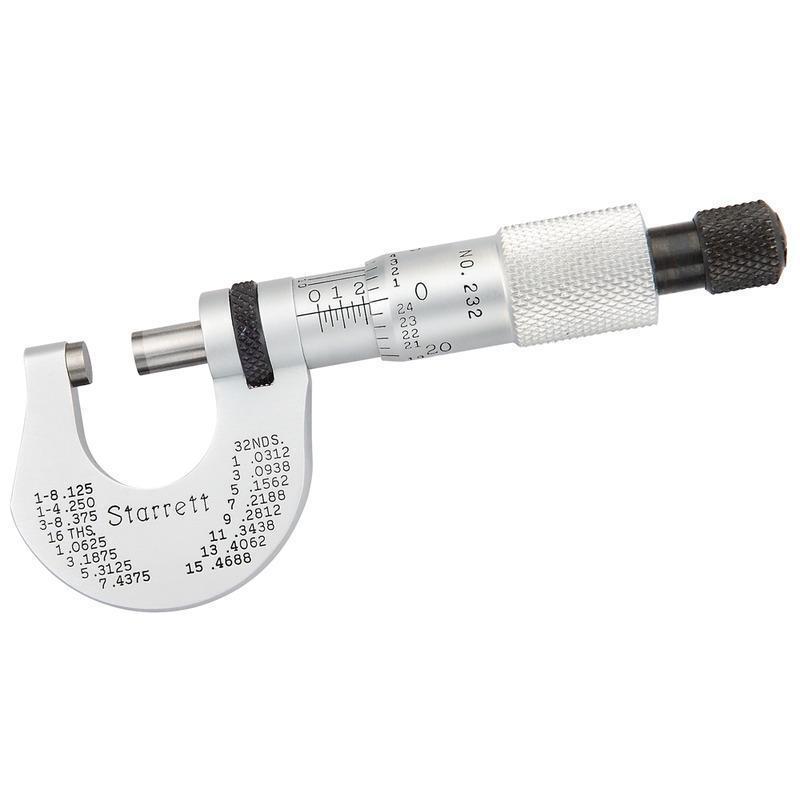

Starrett® T232XRL Mechanical Outside Micrometer, 0 to 1/2 in, Graduations: 0.0001 in, Carbide Tip, Satin Chrome
The Starrett 232 & 232M Outside Micrometer features a ratchet stop, lock nut, and carbide face. 0-1/2", .0001" Grad, Carbide Faces, Ratchet Stop, Lock Nut.
-
BrandStarrett®
-
UPC049659509687
-
Manufacturer Part NumberT232XRL
-
CountryUSA
-
Measurement SystemSAE
-
Graduation Type4R
-
Graduations0.0001 in
-
Head FinishBlack Wrinkle
-
Head MaterialCast Iron
-
Head TypeSquare
-
Series232
-
Number of Pieces2
-
Blade FinishRegular
-
Blade Length4 in
-
Blade MaterialHardened Steel
-
FinishSatin Chrome
-
Thimble TypeRatchet
-
MaterialCarbide Tip
-
Measuring Range0 to 1/2 in
-
Resolution0.0001 in
-
TypeMechanical
-
Accuracy+/-0.00005 in
-
Anvil TypeFlat
-
Dimensions3-11/16 in L x 17/32 in W x 1-25/64 in H
-
Spindle Diameter0.2 in
-
Spindle TypeFlat
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Gracefully designed tapered frame for use in narrow slots and tight places
- Quick and easy adjustment
- Micro-lapped measuring faces
- Ring-type knurled lock nut for quick and sure locking
- Ring-type knurled lock nut for quick and sure locking
- Rigid one-piece frame of drop forged steel
- Extremely hard and stable one-piece spindle
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Features a ratchet stop, lock nut and carbide face
- Convenient decimal equivalents on inch tools
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 30A463 |
| MSC | 86409281 |
| Fastenal | 3123910 |
-
Alternative Part Number50968
-
UNSPSC41111601
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Package DescriptionEACH
-
Full Engineering Drawing
-
Instruction/Installation Manual
