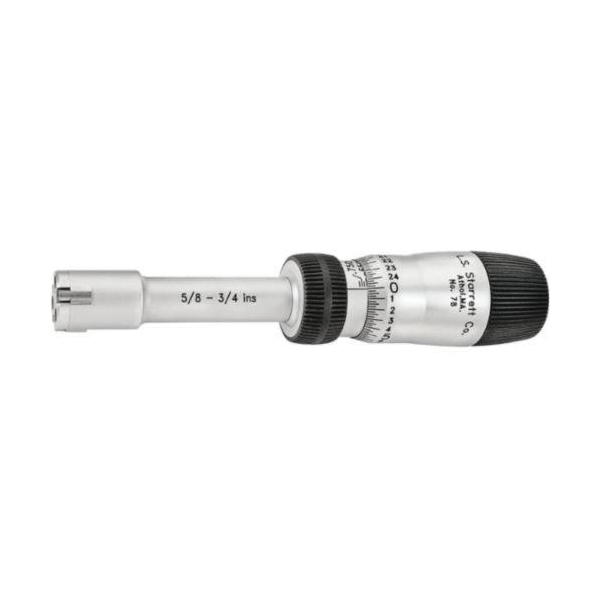

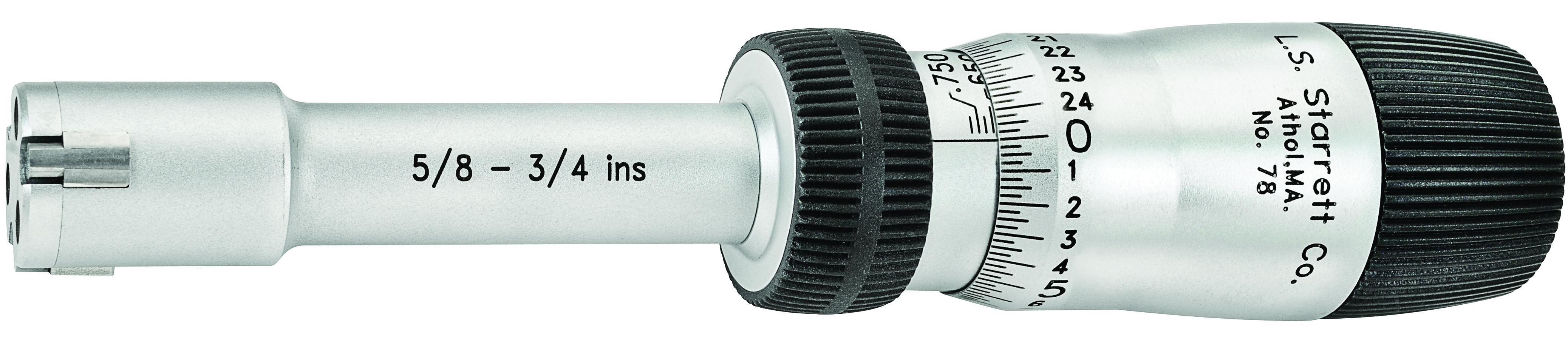

Starrett 5/8"-3/4" BORE GAGE STR 78-XTZ-750
The Starrett 78XT Series Internal Micrometer features extended travel, reducing the need to exchange anvils. The ground contact points seat the internal micrometer faster and more accurately than the spherical contacts found in other gages. The rugged and accurate internal micrometer is available individually or in economical sets from .040-12" (1-300mm). 5/8-3/4" Range, w/3 Point Carbide Contact.
-
BrandStarrett®
-
UPC049659681338
-
Manufacturer Part Number78XTZ-750
-
CountryUSA|Canada
-
MaterialTungsten Carbide
-
Probe Depth2-7/16 in
-
Measuring Range5/8 to 3/4 in
-
Resolution0.0002 in
-
TypeMechanical
-
Graduations0.00025 in
-
Accuracy0.00015 in
-
Series78XT Global Series®
- Wide measurement range without changing anvils
- Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5mm)
- Ratchet stop ensures consistent measurements
- Self-centering contacts for true readings
- Depth stop/collar also available for .080 in-.250 in (1-6mm) range
- Self-centering contacts for true readings
- Blind bore measuring capability above 1/2 in (12.5 mm) diameter
- Extensions available up to 6 in (150mm) for deep hole measuring

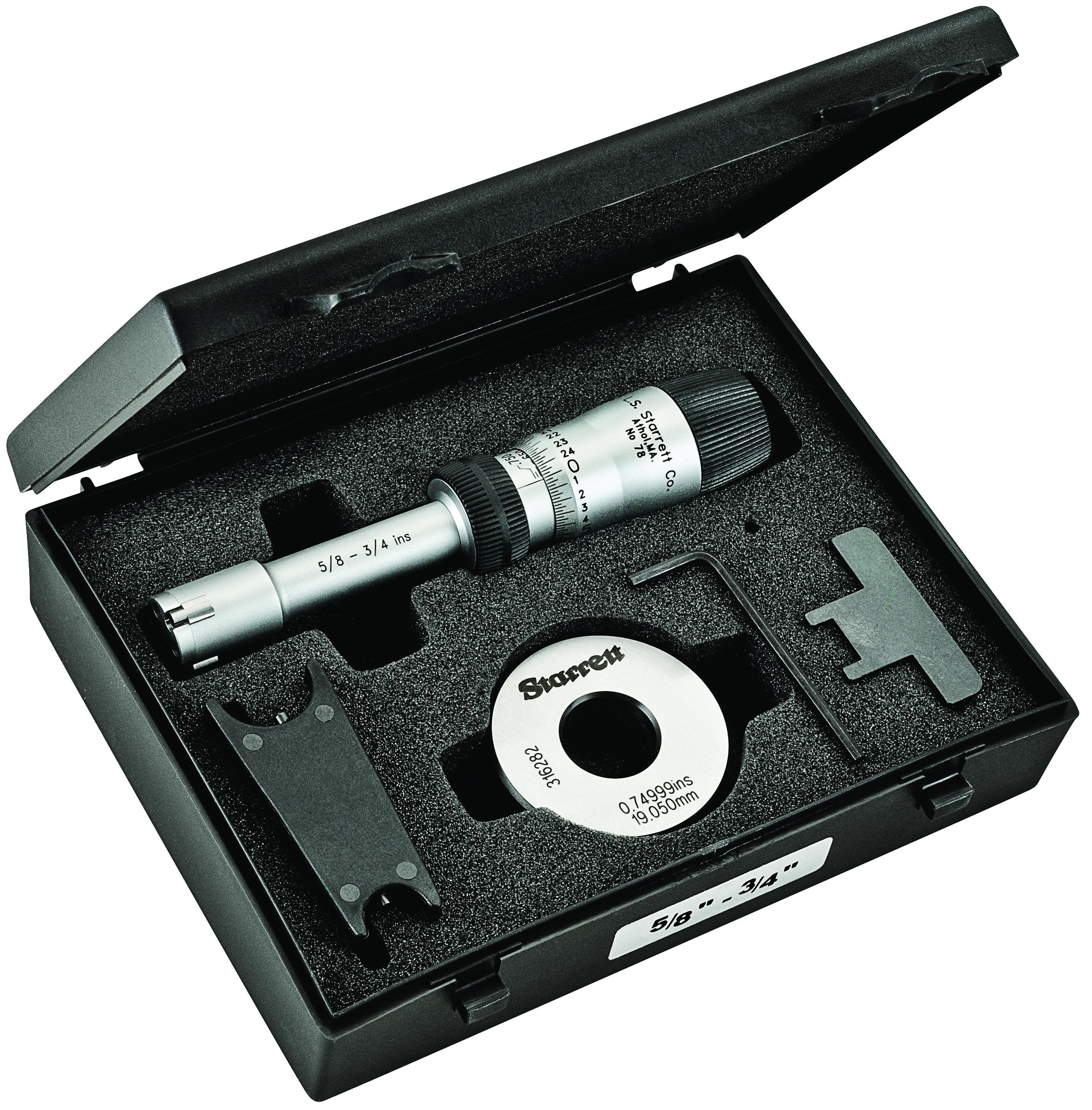

- 3/4 in setting ring diameter
- 3-point contact
| Competitor Name | Cross-Reference Number |
|---|---|
| MSC | 86896206 |
| Grainger | 30A294 |
-
Alternative Part Number68133
-
UNSPSC41111600
-
Package DescriptionEACH
