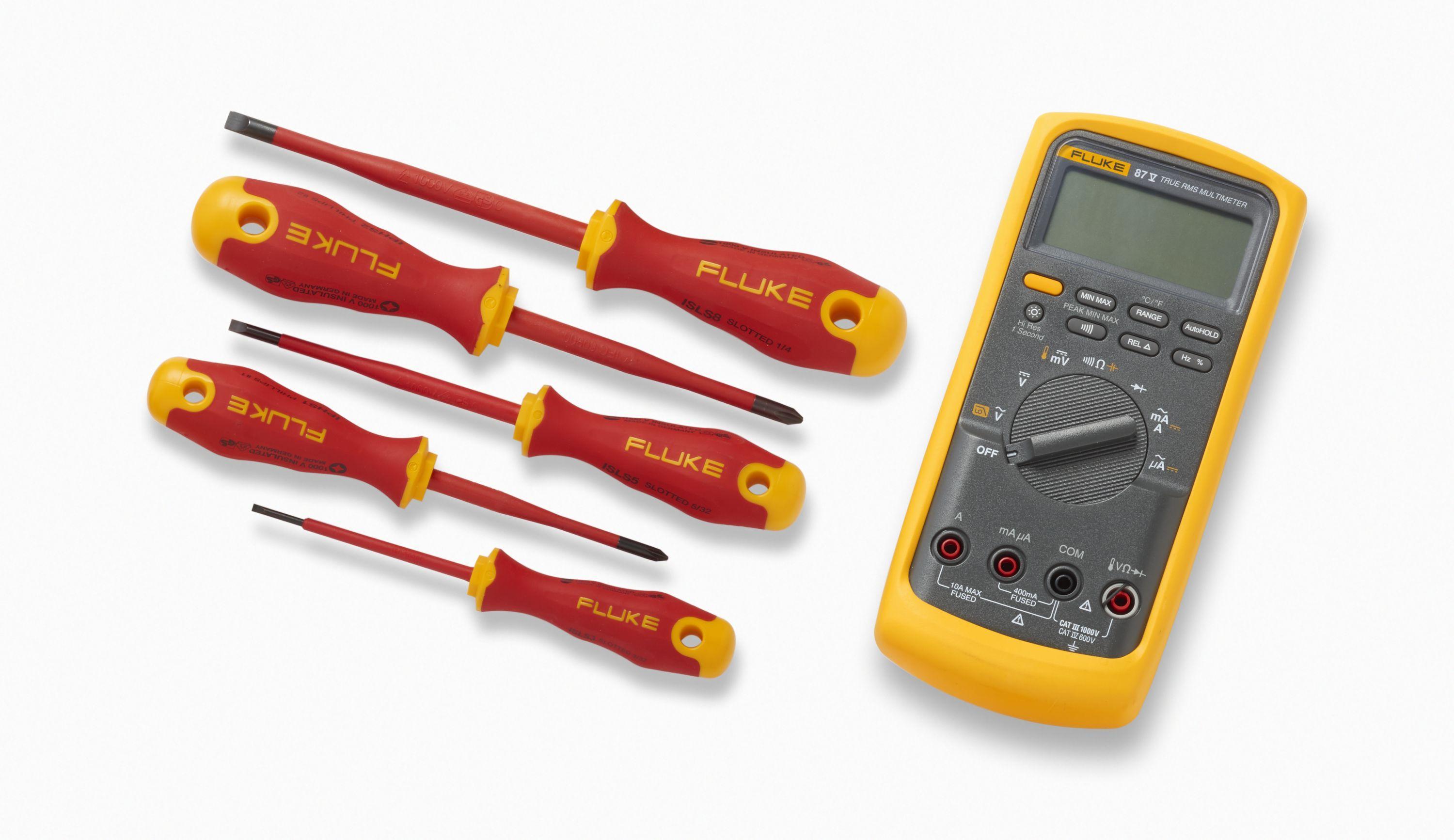

Fluke® FLUKE-87-5/E2-KIT 80 Series Industrial Multimeter Electronic Measuring Probe, 600/1000 V AC, 10 A, 0.7%, 0.05% Accuracy
This new combo kit is based on the Fluke® 87V and Includes special accessories to make industrial troubleshooting even more productive. Save over 15 compared with the individual purchase price of all the accessories.
-
BrandFluke®
-
UPC095969353212
-
Manufacturer Part NumberFLUKE-87-5/E2-KIT
-
CountryUSA
-
TypeIndustrial Multimeter
-
Accuracy0.7%, 0.05%
-
Voltage Rating600/1000 V AC
-
Amperage Rating10 A
-
Series80 Series
-
Diameter7.35 x 3.41 x 1.25 in
-
Enclosure TypeHard Plastic
- Hard plastic enclosure
- 9 VDC zinc, NEDA 1604/6F22/006P battery
- 50 MOhm resistance
- 3.41 x 1.25 in dimensions
- -200 to 1090 deg C temperature rating
- +/-(0.7%+2) True-RMS accuracy for AC voltage, +/-(0.05%+1) accuracy for DC voltage
- Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
- True-rms AC voltage and current for accurate measurements on non-linear signals
- Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
- Measure up to 1000 VAC and DC
- Measure up to 10 A (20 A for 30 seconds)
- 10000 uF capacitance range, frequency to 200 kHz and % duty cycle
- Peak capture to record transients as fast as 250 us, 4-1/2 digit mode
- 59 in (1.5 m) silicone-insulated wire resists heat and cold reinforced strain relief
- 4 mm of exposed metal at the tip
- Reduces the risk of inadvertent shorts between each other and other metal surfaces
- Auto and manual ranging for maximum flexibility
- Resistance, continuity and diode test
- Relative mode to remove test lead resistance from low ohms measurement
- Magnetic strap to hold and position meter on steel panels for hands free use
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1PEK9 |
-
Alternative Part Number2670150|87-5/E2
-
UNSPSC41113630
-
Package DescriptionBOX
-
Standards/ApprovalsCSA Certified|ECCN 3A992|EN 61010-1|TUV Approved|UL Listed|VDE Certified
-
Specification Sheet
