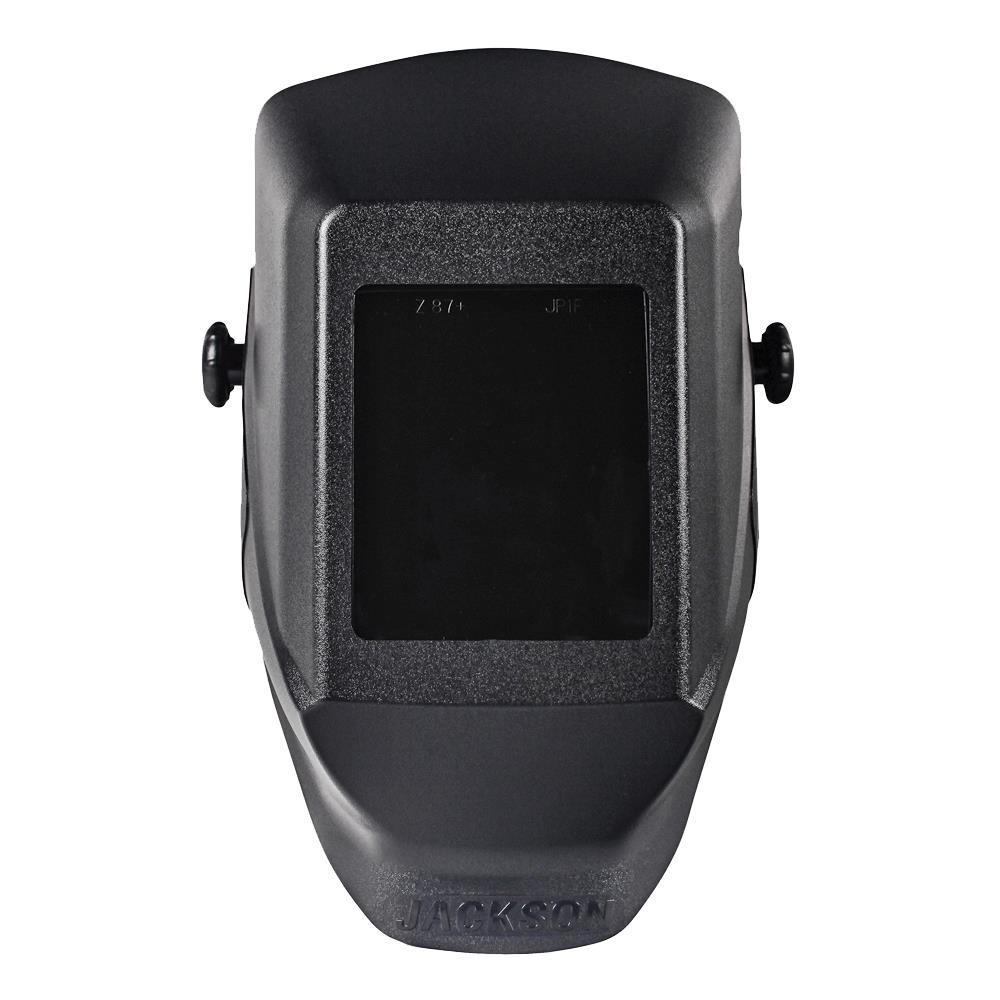

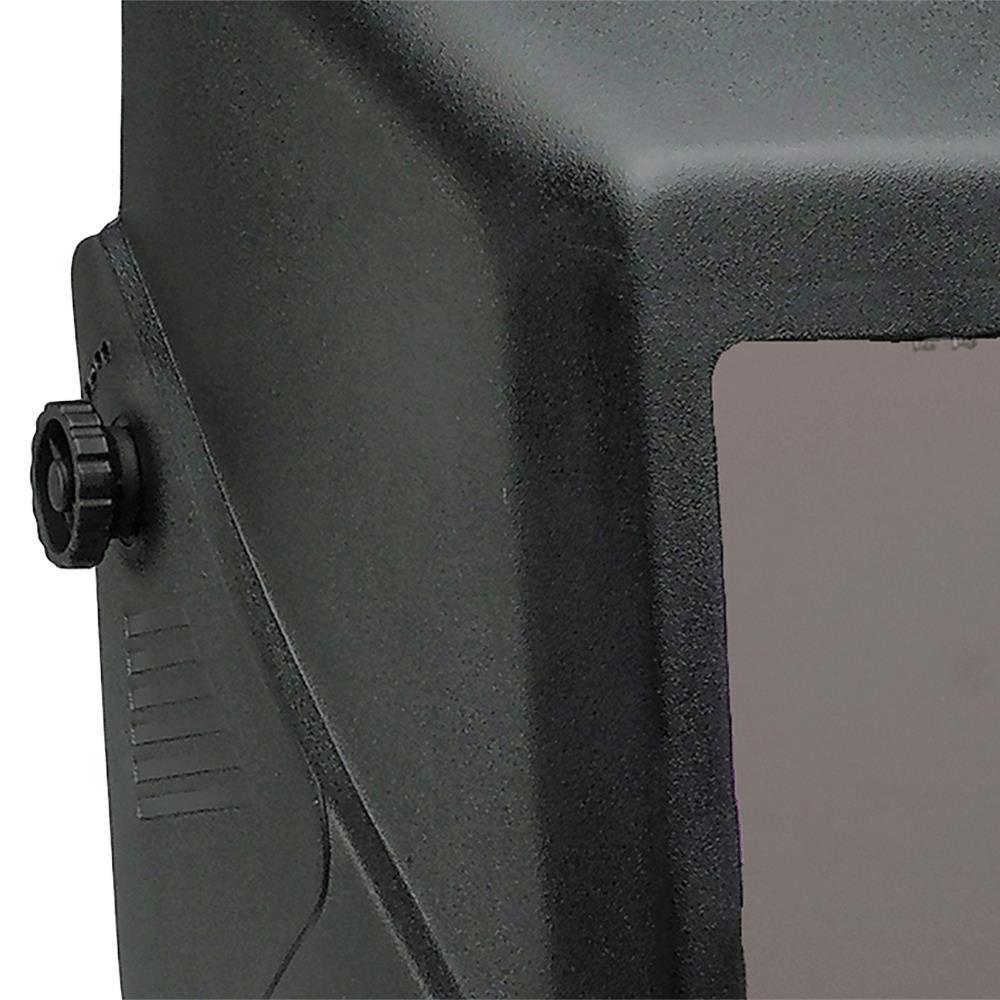

JACKSON SAFETY® 14975 W10 HSL 100 Passive Welding Helmet, 10 Lens Shade, Black, 4-1/2 x 5-1/4 in Viewing Area, ABS/Polycarbonate, ANSI Z87.1, CSA/CE Certified
W10 HSL 100 Passive Welding Helmet, 10 Lens Shade, Black, 4-1/2 x 5-1/4 in Viewing Area, ABS/Polycarbonate, ANSI Z87.1, CSA/CE Certified
-
BrandJACKSON SAFETY®
-
UPC626053606275
-
Manufacturer Part Number14975
-
CountryUSA|Canada
-
MaterialABS/Polycarbonate
-
ColorBlack
-
TypePassive
-
SeriesW10 HSL 100
-
Specifications MetANSI Z87.1, CSA/CE Certified
-
Lens Shade10

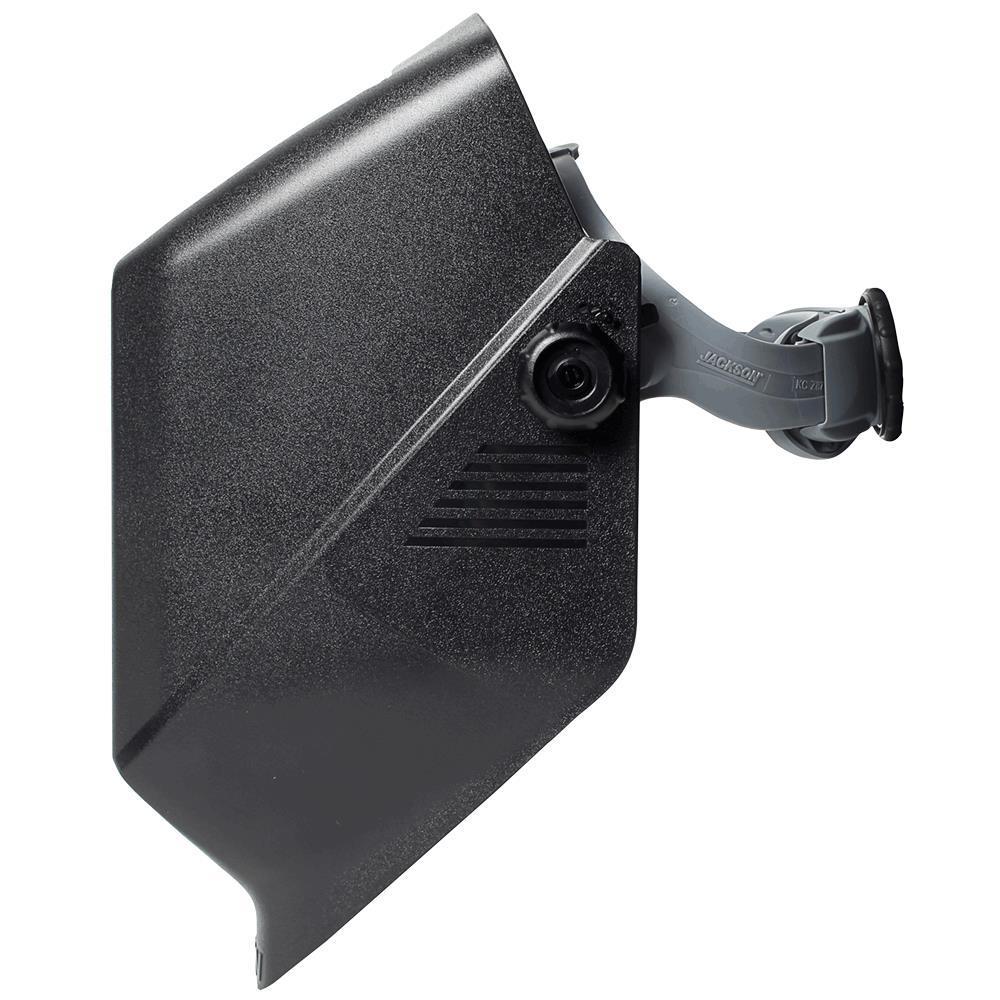

- Features a narrow shell design that's perfect for work in tight spaces
- Extended front increases neck protection from sparks, slag, fumes and other physical hazards

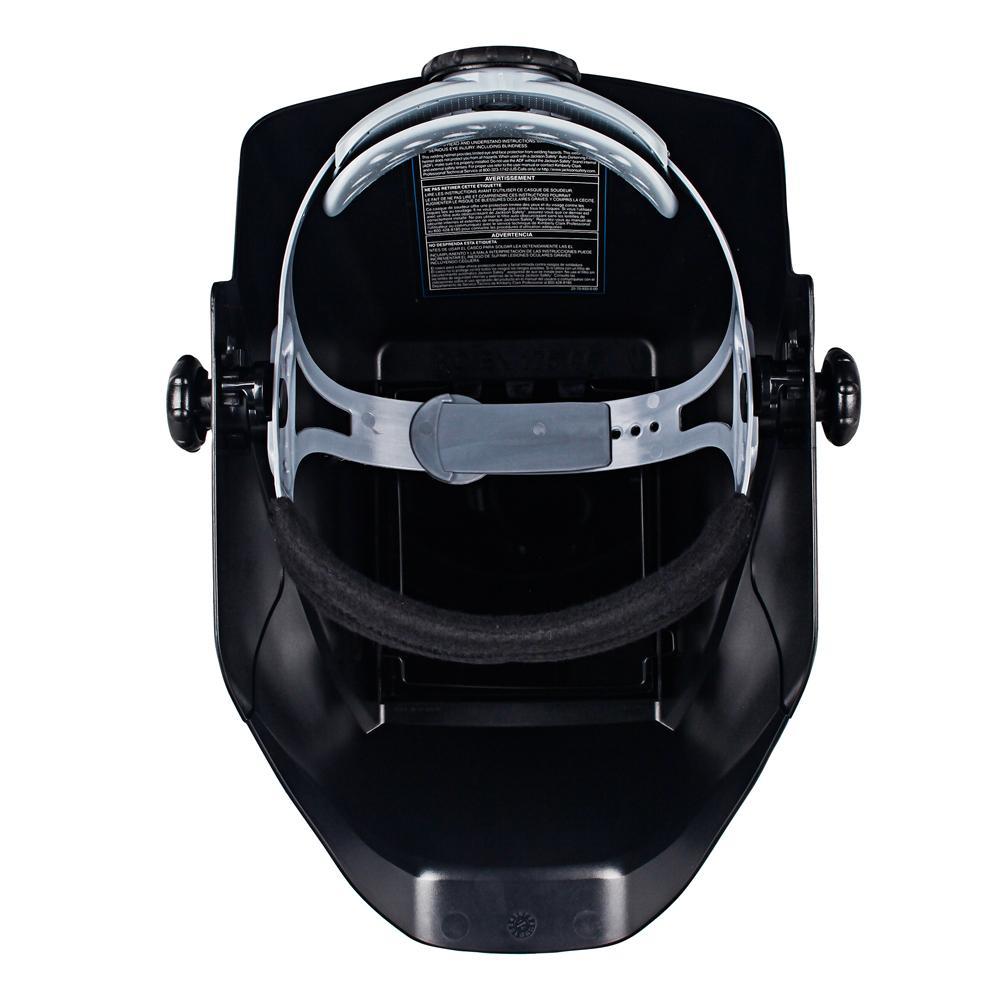

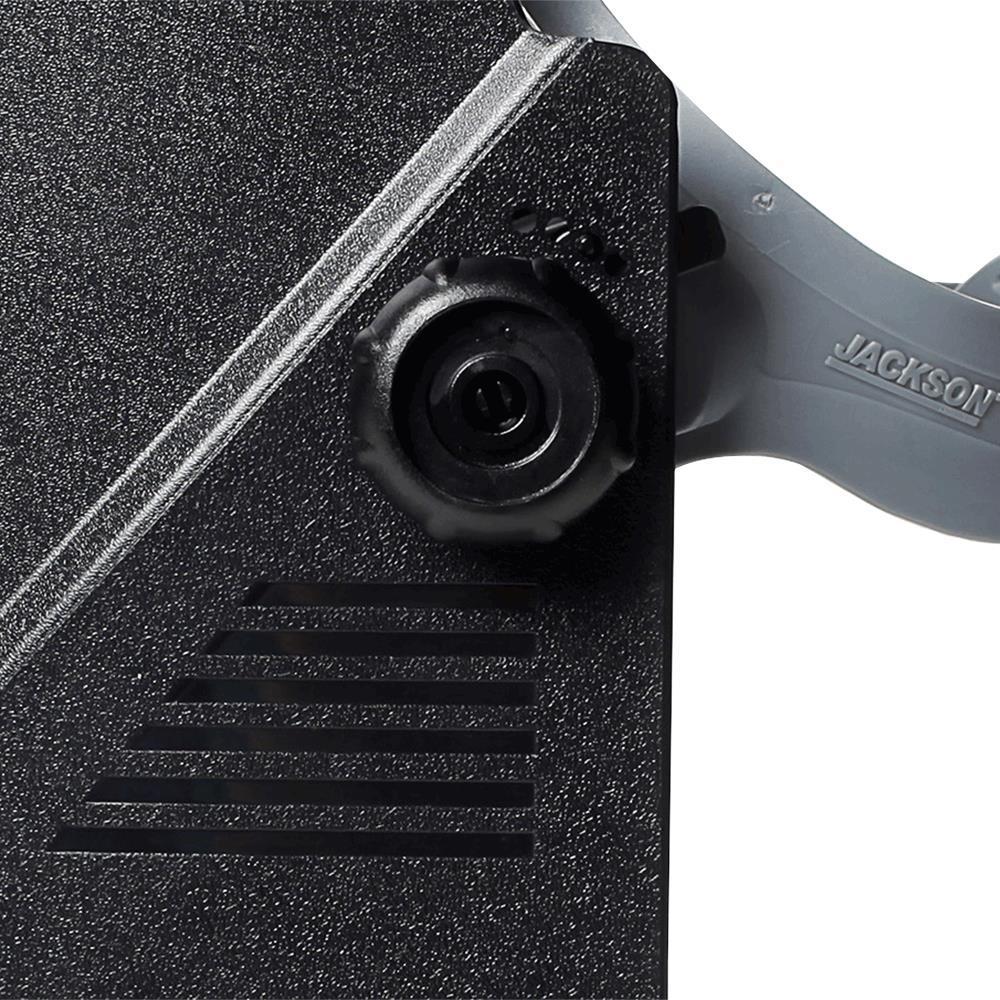

- Choose from 370 Speed Dial ratcheting headgear or slotted hard hat configurations designed to provide a secure fit and compatibility with both cap-style and full-brim hard hats
- Hard hat adaptable using product number 15968
- The welding mask has an extended front, which increases throat protection from sparks, slag, fumes and other physical hazards
- The standard shade 10 filter plate and cover plates installed at factory, but it's adaptable to upgraded Jackson Safety* ADFs like INSIGHT*, NexGen and TrueSight* II
- They offer a clear, unobstructed view of the weld puddle and come equipped with a shade 10 polycarbonate filter
- The Jackson Safety* fixed shade welding helmet (W10 HSL 100) features a narrow shell design that's perfect for work in tight spaces
-
UNSPSC46181711
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov|ANSI Z87.1|CSA/CE Certified
-
Warranty1 year
-
Specification Sheet
