Brady® 65965 1-Pole Clamp-On Circuit Breaker Switch Lockout Device, For Use With 120/277 V AC Single Pole and Internal-Trip Multi-Pole Breaker, 1 Padlocks, 0.31 in Dia Max Padlock Shackle, LOTO-14 Polypropylene, Red
Brady® 65965 1-Pole Clamp-On Circuit Breaker Switch Lockout Device, For Use With 120/277 VAC Single Pole and Internal-Trip Multi-Pole Breaker, 1 Padlocks, 0.31 in Dia Max Padlock Shackle, LOTO-14 Polypropylene, Red
-
BrandBrady®
-
UPC754473659653
-
Manufacturer Part Number65965
-
CountryUSA|Canada
-
MaterialLOTO-14 Polypropylene
-
Maximum Number of Padlocks1
-
ColorRed
-
Type1-Pole Clamp-On
-
Height2.205 in
-
Width0.95 in
-
Depth0.65 in
-
Suitable For Use With120/277 V AC Single Pole and Internal-Trip Multi-Pole Breaker
-
Padlock Shackle Maximum Diameter0.31 in

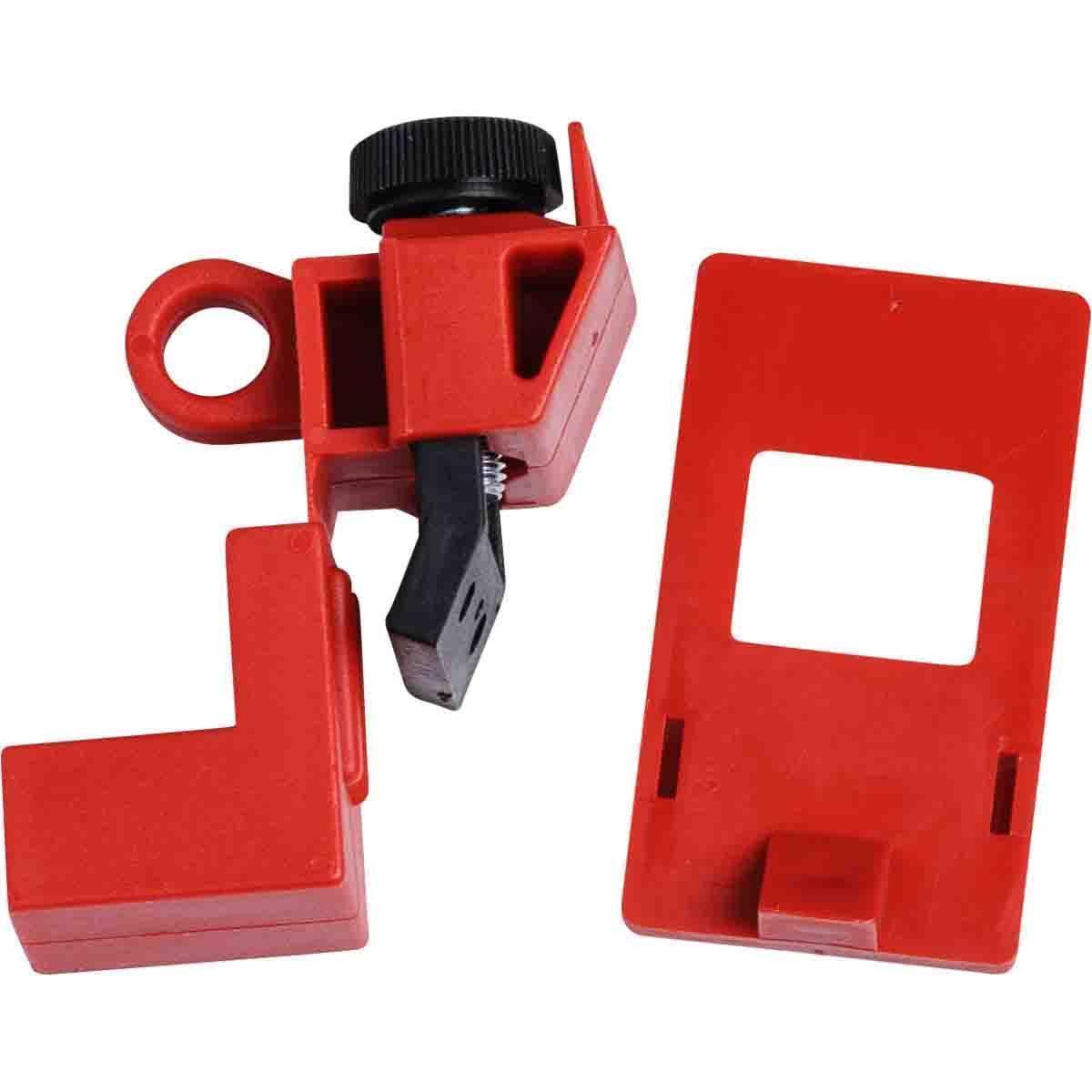

- Clamp on breaker lockouts are versatile and easy to install using proprietary thumbscrew design no screwdrivers needed
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time and cut insurance costs
- Brady is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy to use lockout devices
- For use on breakers that do not have a hole in the switch tongue, including multi-pole breakers with tie bars

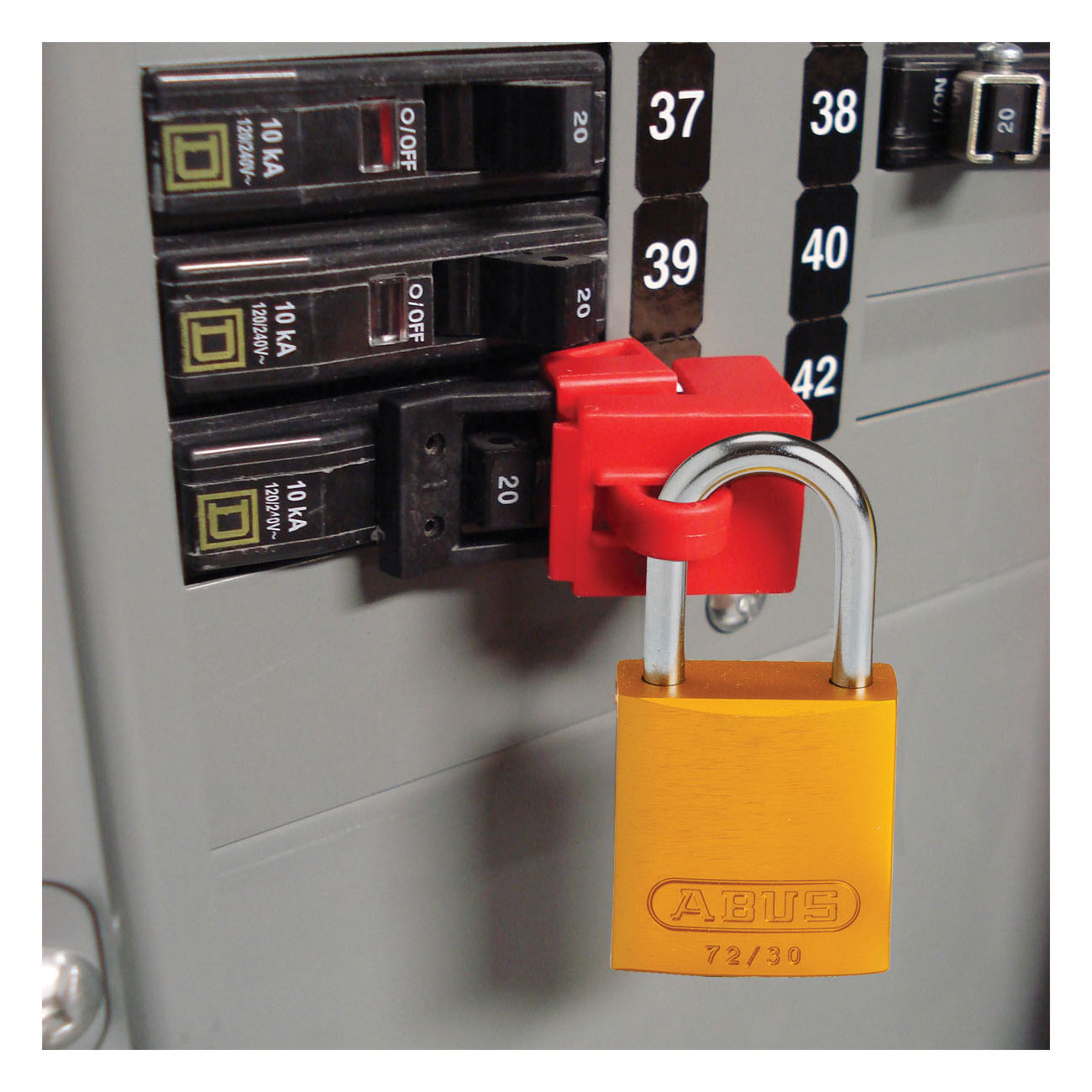

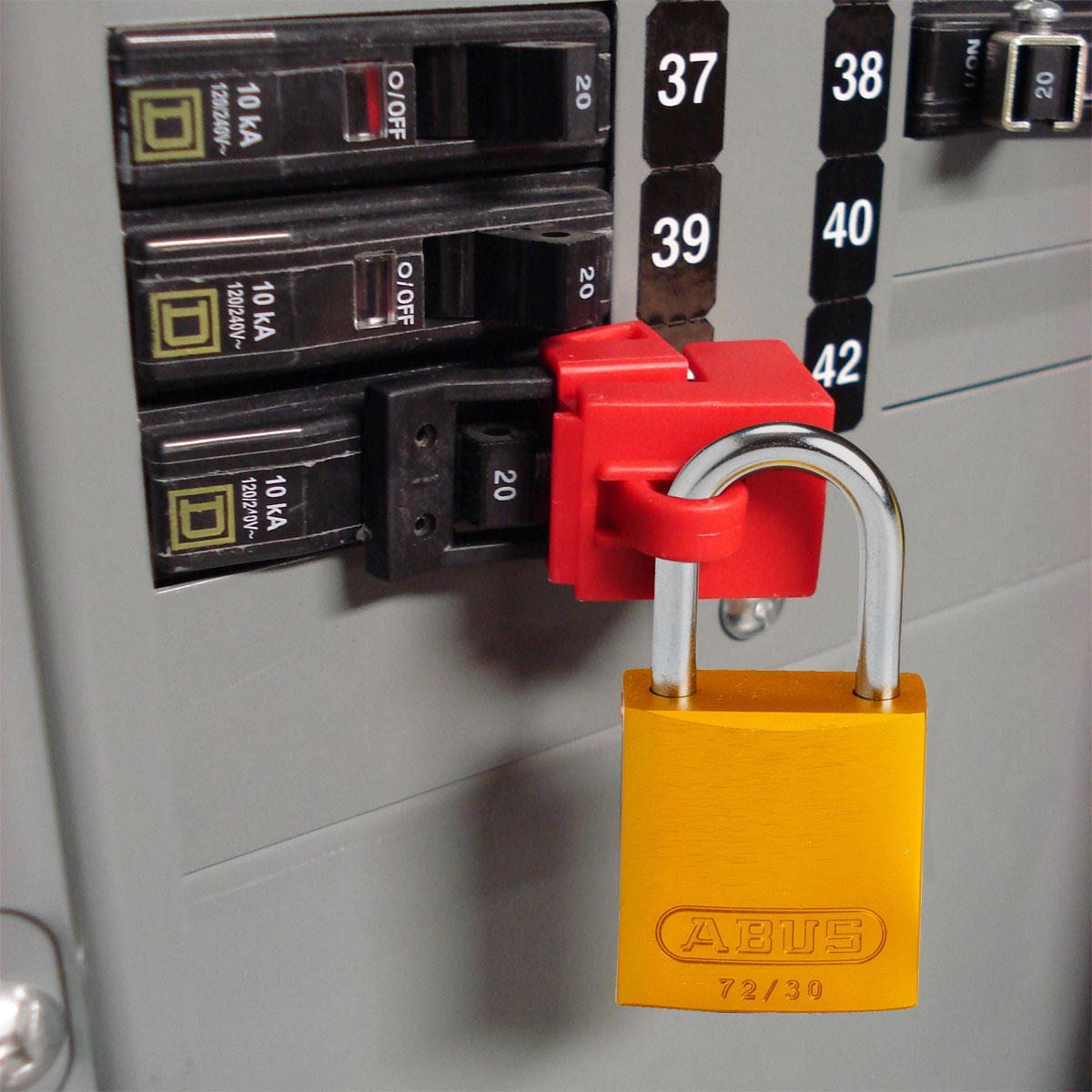

- Turn thumbscrew to clamp lockout securely onto switch, then snap the cover closed to prevent thumbwheel from being loosened
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 2AD54 |
| Fastenal | 99088196 |
-
Alternative Part Number8386225
-
UNSPSC39121901
-
IDEA Index ID8386225
-
Package Description6/PK
-
Standards/ApprovalsANSI Z244.1|ASSE Z244.1|ECCN: EAR99|NFPA 704|NPCA-HMIS Rating|OSHA 29 CFR 1910.147 (4)(ii)( A)(1)/(c) (5)(ii)(C)(1)|UL 94 HB Flammability Rating|CSA Approved
-
Technical Bulletin
-
Specification Sheet
-
Owners/User Manual
-
Catalog
