Master Locks STEERING WHEEL CABLE LOCKOUTS MAS S-806

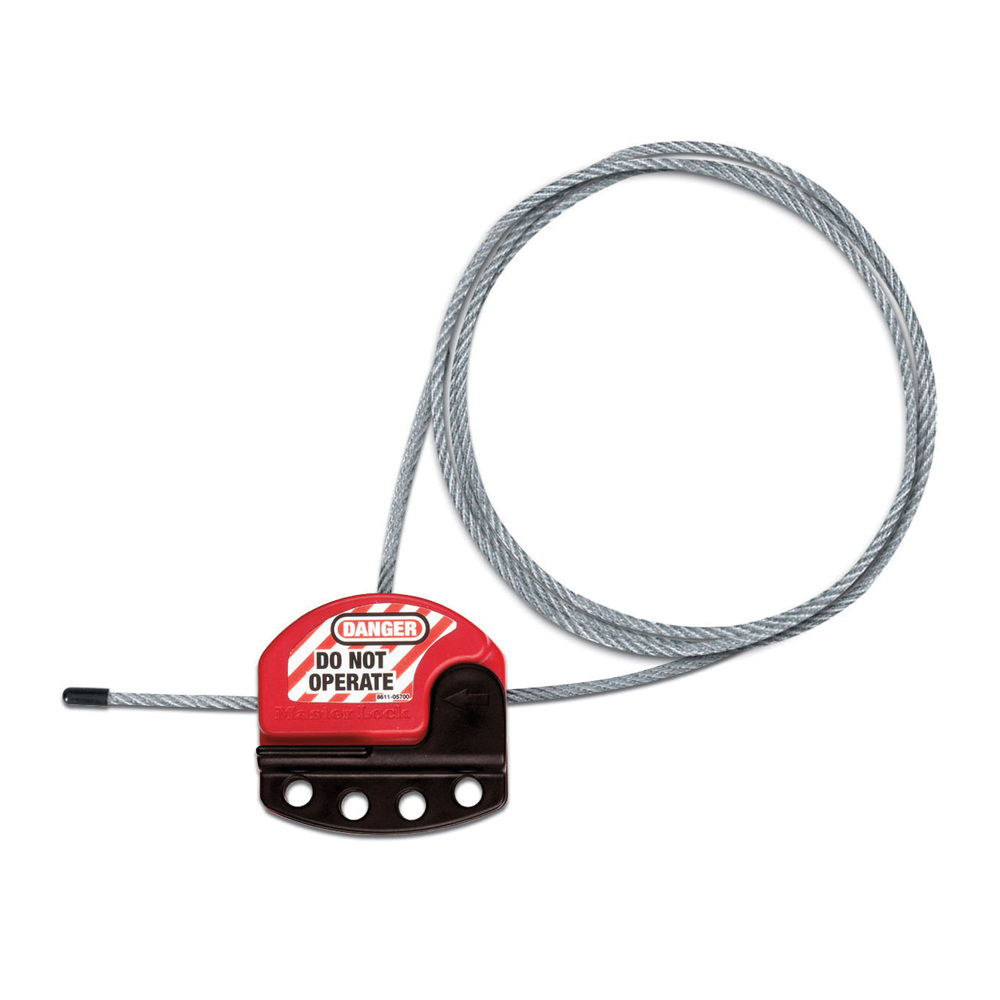

The Master Lock® No. S806 adjustable Cable Lockout device, ideal for group and multi-point lockouts, features a tough, flexible multi-stranded steel cable insulated with a clear plastic coating. A tough, lightweight Zenex™ thermoplastic body withstands chemicals and performs effectively in extreme conditions. Includes high visibility, re-usable write on safety labels to identify the responsible person and then erase for the next job.
-
BrandMaster Lock®
-
Manufacturer Part NumberS806
-
CountryUSA|Canada
-
Maximum Number of Padlocks4
-
ColorRed
-
TypeAdjustable
-
Specifications MetOSHA 1910.147
-
Body MaterialPBT/PC Thermoplastic
-
LegendDANGER DO NOT OPERATE
-
Suitable For Use WithMultiple Circuit Breaker Panel and Side-By-Side Gate Valves Lockouts
-
Padlock Shackle Maximum Diameter5/16 in
- Patented 5/32 in diameter x 6 ft pull-tight cable adjusts for a secure fit every time

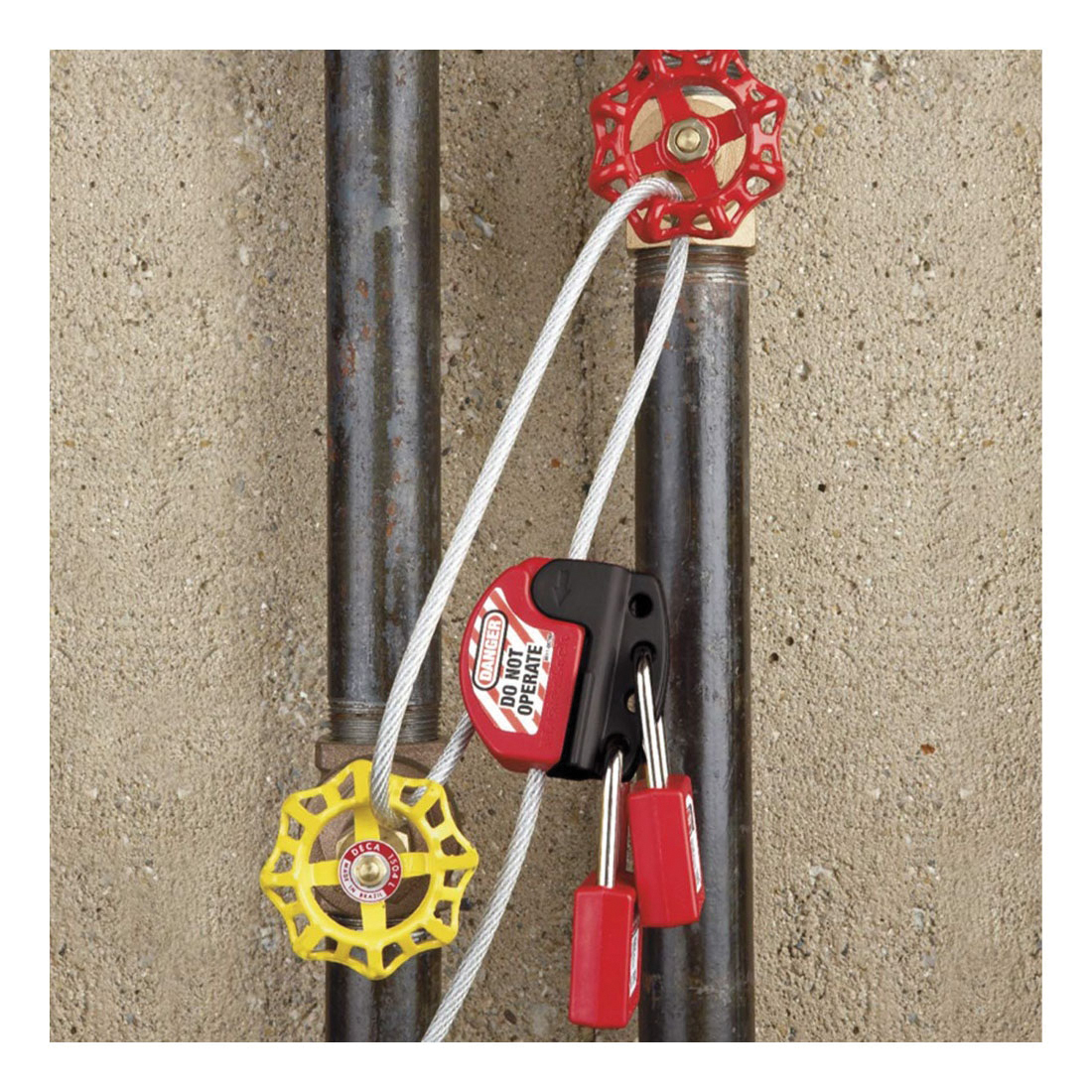

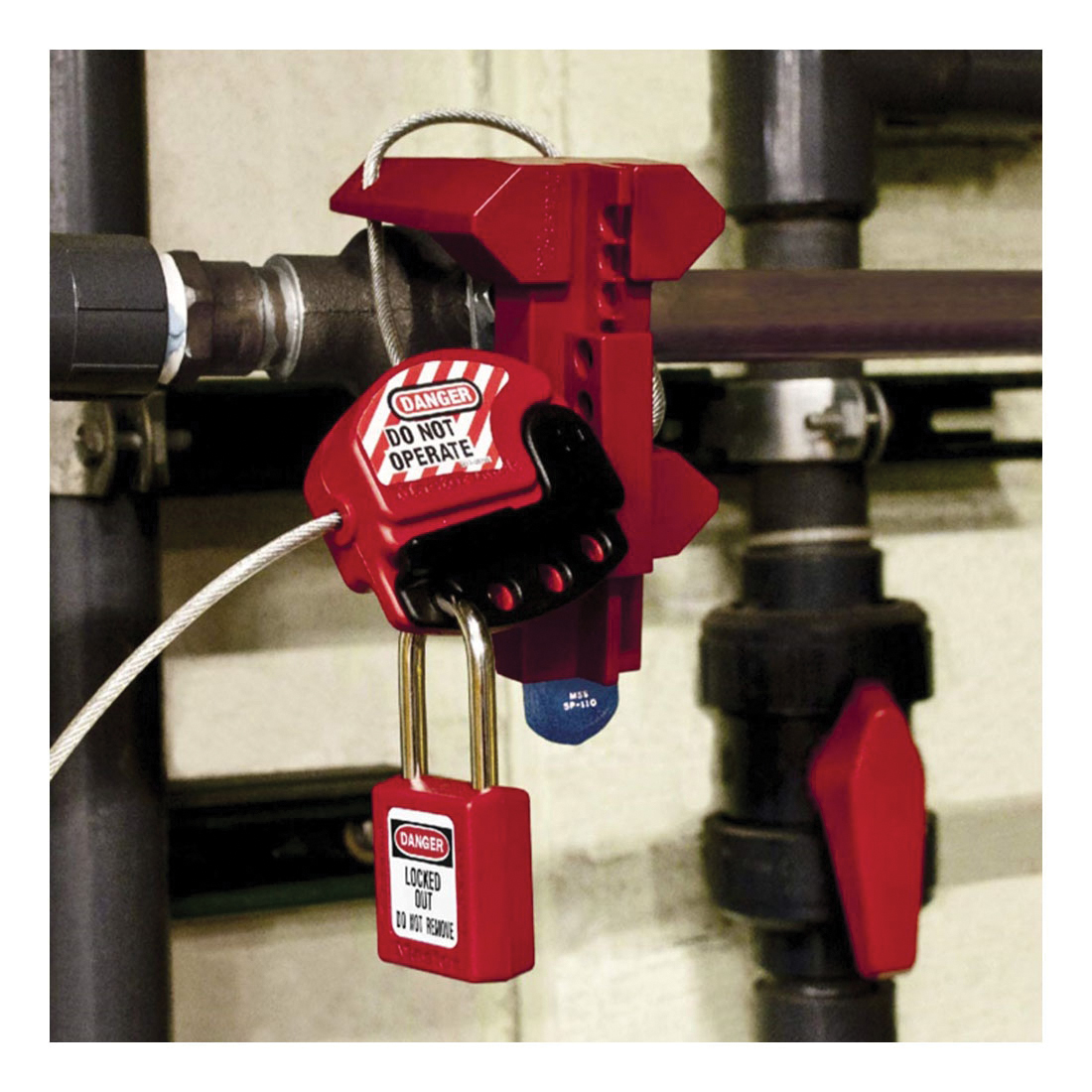

- Integrated safety lockout hasp and cable is ideal for multiple circuit breaker panels and side by side gate valve lockouts
- Tough, flexible multi-stranded steel cable is insulated with a clear plastic coating (PVC-free)
- Feed the cable end through the points to be locked out, then back through the lockout body
- Cinch it tight to remove any slack with the patented locking feature
- Tough, lightweight thermoplastic body withstands chemicals
- Performs effectively in extreme conditions
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 1006649 |
-
UNSPSC39121900
-
Package Description6/CT
-
WarrantyLimited Lifetime
-
Specification Sheet
-
Warranty Information
-
Instruction/Installation Manual
