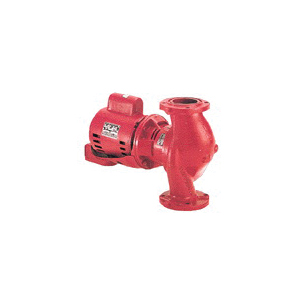

Bell & Gossett 106189 100 3-Piece Booster Pump, 115 V AC, 1 ph
For applications requiring higher flow and head pressures, Bell & Gossett provides an entire range of booster pumps. The designs of these pumps are based on 3-part configuration which offers complete field repairability and compact construction. All Bell & Gossett boosters are equipped with the incomparable Bell & Gossett manufactured motor for quiet and efficient operation.
-
BrandBell & Gossett
-
UPC683328061894
-
Manufacturer Part Number106189
-
CountryUSA
-
Temperature Rating225 deg F
-
Power Rating1/12 hp
-
Maximum Pressure125 psi
-
Frequency Rating60 Hz
-
Type3-Piece
-
Motor Speed1725 rpm
-
Voltage Rating115 V AC
-
Amperage Rating1.75 A
-
Series100
-
Impeller TypeCentrifugal
-
Dimensions14-7/8 in L x 6-3/8 in H
-
Bearing TypeSleeve
-
Phase1
- Oil lubricated circulator
- Cast iron body
- 115V With built-in overload protection
- Sleeve bearing, oil lubricated with replaceable resilient motor mounts
- Noise dampening coupler
- Bell & Gossetts own flexible spring design adds to quiet operation, do not accept a substitute
- Long bronze sleeve bearings maintain exact shaft alignment
- Provides for constant circulation of oil over bearing surfaces
- Precision ground pump shaft is oversized to provide large bearing surfaces
- Hardened integral thrust collar minimizes end-thrust to ensure long seal and bearing life
- The Bell & Gossett mechanical seal is designed to withstand the wide range of water temperatures, pressures, additives and dissolved solids common in hydronic systems
- Centrifugal impeller prevents accumulation of air at seal faces to assure long life
- Close impeller/body tolerances minimize water slippage and maximize efficiency
- 3/4, 1, 1-1/4 and 1-1/2 in NPT flange
- Model 100NFI
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | B106189 |
-
UNSPSC40151504
-
Standards/ApprovalsCSA Certified|cUL/UL Listed|SA Registered
-
