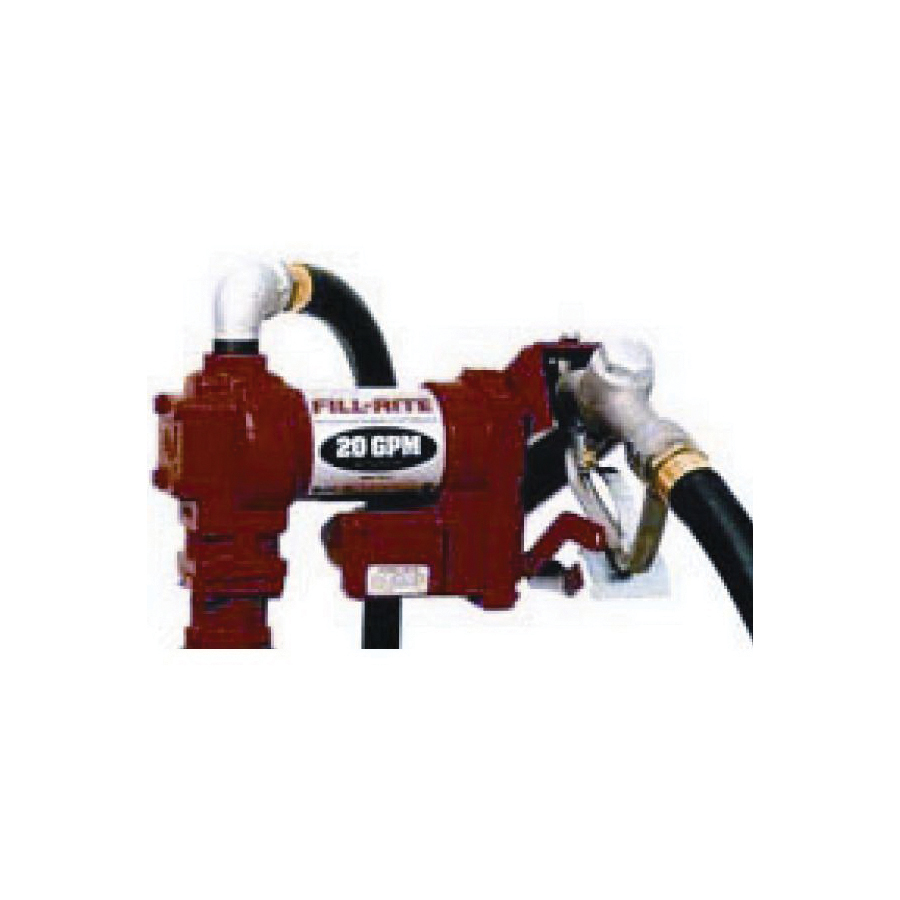

FILL-RITE® FR4210G Heavy Duty High Flow Transfer Pump, 20 gpm Flow Rate, 1 in MNPT Inlet x 1 in FNPT Outlet, 1/4 hp, Aluminum/Cast Iron

0 Ratings
$999.51
In Stock
SKU: TUTFR4210D
noimage_new

FILL-RITE® FR4210G Heavy Duty High Flow Transfer Pump, 20 gpm Flow Rate, 1 in MNPT Inlet x 1 in FNPT Outlet, 1/4 hp, Aluminum/Cast Iron

In Stock
HCI of Jackson: 0
HCI of Dyersburg: 8
HCI of Humboldt: 1
HCI of Union City: 1
HCI of Gallatin: 0
My Wishlist
Compare
Main specs
  • Brand
    FILL-RITE®
  • UPC
    089404223161
  • Manufacturer Part Number
    FR4210G
  • Country
    USA
Specification
  • Material
    Aluminum/Cast Iron
  • Flow Rate
    20 gpm
  • Type
    Heavy Duty High Flow
  • Motor Speed
    2600 rpm
  • Voltage Rating
    12 VDC
  • Cord Length
    18 ft
  • Seal Material
    Ceramic/Carbon
  • Amperage Rating
    22 A
  • Seal Type
    Mechanical
  • Horsepower
    1/4 hp
  • Hose Diameter
    1 in
  • Hose Length
    12 ft
  • Housing Material
    Cast Iron
  • Inlet Size
    1 in MNPT
  • Dimensions
    13 in L x 9 in W x 12 in H
  • Bearing Type
    Ball
  • Outlet Size
    1 in FNPT
Features
  • Compatible with diesel, gasoline, kerosene, E15, biodiesel up to B20
  • 2 in threaded base for tank mounting
  • Cast bronze rotor with bronze rotary vanes
  • Built-in strainer
Additional Information
  • UNSPSC
    40151532
  • Includes
    Pump, 1 in Manual Nozzle, 1 x 12 in Hose with Static Ground Wire, 18 ft Battery Cable and 20 to 34 in Steel Telescoping Suction Pipe
  • Standards/Approvals
    cULus Listed
  • Warranty
    2 Year
Attachments
Reviews

There are yet no reviews for this product.
