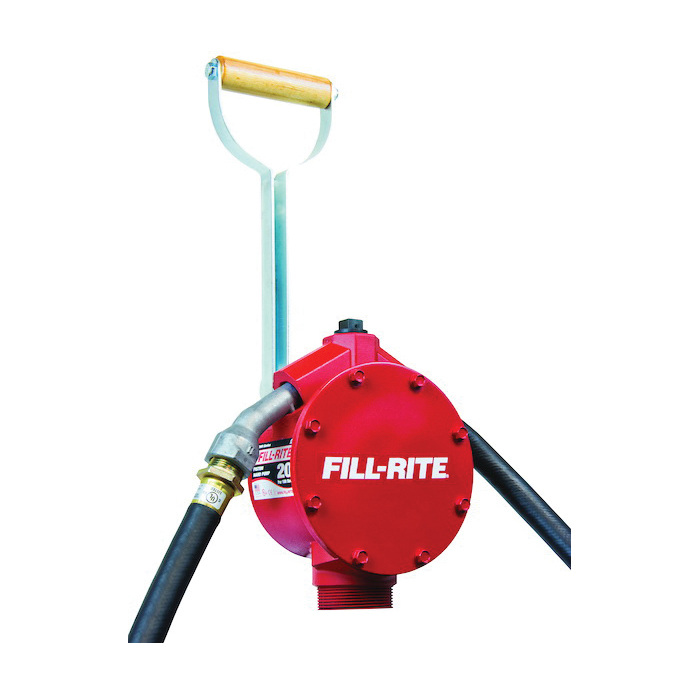

FILL-RITE® FR152 5200 Heavy Duty Self-Priming Piston Hand Pump, 20 gal/100 Strokes Flow Rate, 1 in FNPT Inlet x 3/4 in FNPT Outlet
FILL-RITE® FR152 5200 Heavy Duty Self-Priming Piston Hand Pump, 20 gal/100 Strokes Flow Rate, 1 in FNPT Inlet x 3/4 in FNPT Outlet
-
BrandFILL-RITE®
-
UPC089404004289
-
Manufacturer Part NumberFR152
-
CountryUSA
-
Flow Rate20 gal/100 Strokes
-
TypeHeavy Duty Self-Priming
-
Viscosity1500 SUS
-
Series5200
-
Housing MaterialCast Aluminum
-
Inlet Size1 in FNPT
-
Dimensions6-1/2 in W x 8 in H
-
Outlet Size3/4 in FNPT
- Aluminum fuel transfer piston hand pump with stainless steel liner, designed for gasoline, diesel, biodiesel up to B20, E-15 and kerosene
- Aluminum body with stainless steel liner
- Anti siphon valve
- Pumps may be padlocked
- Pumps can be set up for reverse flow
- Corrosion proof adjustable suction pipe
- Compatible with light oils, anti-freeze, hydraulic oils and coolant
- 2 in NPT bung mount
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1P892 |
-
UNSPSC40151506
-
IncludesVaccum Breaker, 20 to 34-3/4 in Steel Telescoping Suction Pipe, 3/4 in x 8 ft Hose and 3/4 in Hose End Spout
-
Standards/ApprovalsATEX Approved|CE Certified|cULus Listed
-
Warranty2 Years
-
