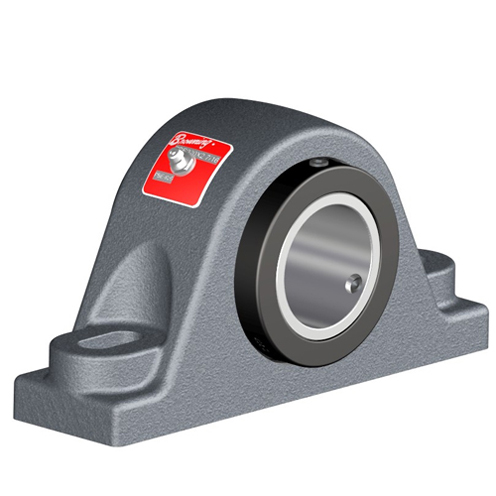

PBE-920 1-15/16 a high-capacity, 2-bolt base mounted tapered roller bearing pillow block assembly built for a 1-15/16 inch shaft
• Bore Diameter (Shaft Size): 1-15/16 inches (1.9375")
• Housing Type: 2-Bolt Base Mounted Pillow Block
• Expansion Type: Non-Expansion (Fixed Unit)
• Locking Mechanism: Double Concentric Locking Collars (with 120° spaced diamond-faceted setscrews)
• Base to Bore Centerline Height: 2-1/4 inches (2.2500")
• Bolt Center-to-Center Range: 6-3/16 inches to 7-1/4 inches
• Radial Dynamic Load Capacity: 8,070 lbf
• Max Speed Rating: 2,000 RPM
• Housing Finish: Premium gray powder-coat epoxy cast iron
• Lubrication: Pre-greased with lithium complex EP grease; relubricatable via an integrated 1/8" NPT grease zerk.
