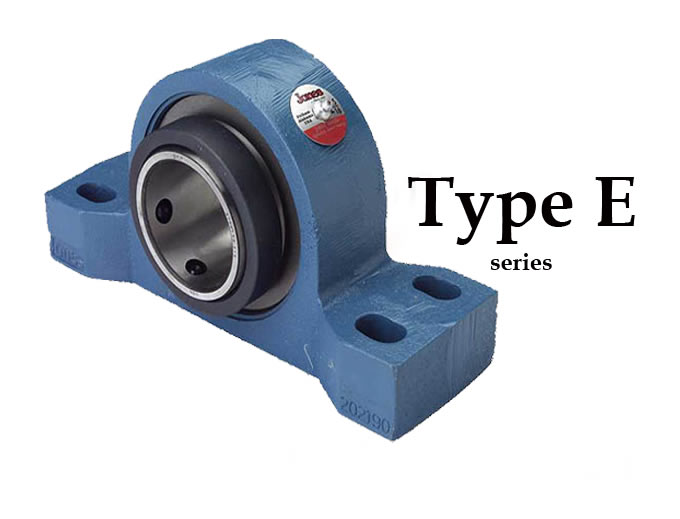

JE-2215-F 2-15/16 inch bore, 4-bolt base mounted spherical roller bearing pillow block manufactured by the Jones Bearing Company. Part of the heavy-duty JE-2000 series, the "F" suffix specifically designates a 4-bolt mounting base footprint rather than th
• Shaft Bore Diameter: 2-15/16 inches
• Housing Type: JE Series Type-E Dimension Interchanged Pillow Block
• Mounting Base: 4-Bolt Base (The standard JE2215 uses a 2-bolt base; adding the F switches it to a 4-bolt pattern).
• Unit Weight: 22.0 lbs
• Total Length (A): 12 inches
• Bolt Hole Spacing (B): Min 9-1/8 inches to Max 9-7/8 inches
• Bolt Diameter (H): Accommodates 5/8 inch mounting bolts
• Standard Configuration: Built as a Non-Expansion (NXP) unit by default.
