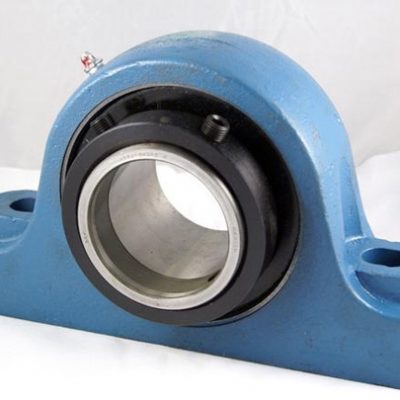

JA-2107 is a 1-7/16 inch bore, 2-bolt base mounted spherical roller bearing pillow block manufactured by the Jones Bearing Company.
• Shaft Bore Diameter: 1-7/16 inches
• Housing Type: JA-2000 Series 2-Bolt Pillow Block
• Internal Bearing: Fully self-aligning double-row spherical roller element
• Unit Weight: 6.5 lbs (some manufacturing catalogs note up to 7.6 lbs depending on grease packing)
• Housing Physical Dimensions:
• Total Base Length (A): 6-7/8 inches
• Bolt Hole Spacing (B): Min 4-11/16 inches to Max 5-5/16 inches
• Footprint Width (C): 1-3/16 inches
• Base to Center Height (D): 1-7/8 inches
• Total Assembly Height (E): 3-7/8 inches
• Total Width / Cap Space (F): 2-1/8 inches
• Bolt Hole Diameter Requirement: Designed for 1/2 inch mounting hardware
