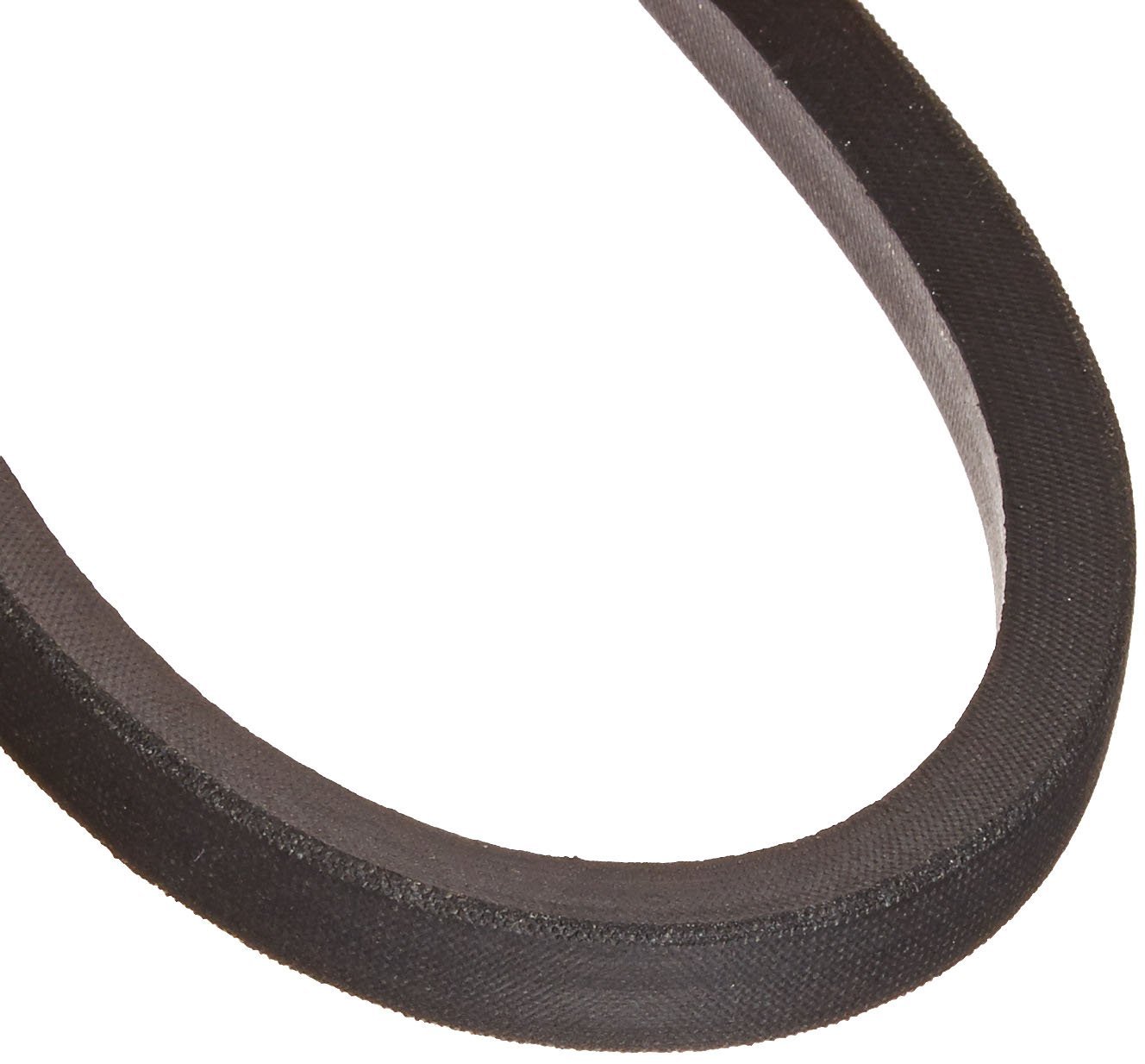

B-40 BROWNING 21/32" x 7/16" Super Gripbelt w/ 41.8" Pitch
Regal Beloit Corporation (Browning) SUPER GRIPBELT® 21/32" x 7/16", 43" Outside Circumference, 41.8" Pitch Length, Type B, V-Belt
Browning® Classical v-belts are designed to deliver maximum performance and service life. Classical belts feature single wrap design, which provides greater flexibility when using small diameter sheaves. Classical single wrap v-belts also have less fabric overlap, which reduces center distance variation and vibration.
Features & Benefits
Unique Design Enhances Performance and Provides Increased Horsepower Capacity in a Shorter Center Drive
Single Fabric Design Allows for the Belt to be More Flexible in Addition, it can Now be Used with Sub-Min Pitch Diameters Sheaves to Reduce Drive Cost
Reduced Overlap Provides Lower Vibration and Reduced Noise During Operation
High Strength, Synthetic Fiber Cords Carry the Horsepower Load and Minimize Stretching
Static Conducting
Specifications
Type: B
Outside Circumference: 43 Inch
Top Width: 21/32 Inch
Thickness: 7/16 Inch
Application: Aggregate and Cement, Agriculture, HVAC, Minerals and Mining, Oil and Gas, Pulp and Paper and Unit Handling
Pitch Length 41.8 Inch
Temperature Rating 140 Deg F
Recently Viewed
Regal Beloit Corporation (Browning) SUPER GRIPBELT® 21/32" x 7/16", 43" Outside Circumference, 41.8" Pitch Length, Type B, V-Belt
Browning® Classical v-belts are designed to deliver maximum performance and service life. Classical belts feature single wrap design, which provides greater flexibility when using small diameter sheaves. Classical single wrap v-belts also have less fabric overlap, which reduces center distance variation and vibration.
Features & Benefits
Unique Design Enhances Performance and Provides Increased Horsepower Capacity in a Shorter Center Drive
Single Fabric Design Allows for the Belt to be More Flexible in Addition, it can Now be Used with Sub-Min Pitch Diameters Sheaves to Reduce Drive Cost
Reduced Overlap Provides Lower Vibration and Reduced Noise During Operation
High Strength, Synthetic Fiber Cords Carry the Horsepower Load and Minimize Stretching
Static Conducting
Specifications
Type: B
Outside Circumference: 43 Inch
Top Width: 21/32 Inch
Thickness: 7/16 Inch
Application: Aggregate and Cement, Agriculture, HVAC, Minerals and Mining, Oil and Gas, Pulp and Paper and Unit Handling
Pitch Length 41.8 Inch
Temperature Rating 140 Deg F
V-BELT-BRWA96>
V-BELTS-BRWB285>
B-437-FASTENER ROCKER PIN TOOLS-BRWB43740RPTOOL >
Wrapped construction - Provides smooth quiet operation. Single fabric design allows greater flexibility. Wrapped Belts are more tolerant to slipping and misalignment than Raw Edge Belts.
Close Belt tolerance - Browning Belts offer the "Code 1" Match belt system on all classical and "358" Belts, allowing easy selection of just one match number for each belt size. This ensures tighter than RMA standards.
High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt.
Outside Length: 66"
Pitch Length: 64.8"
Belt Section: B
