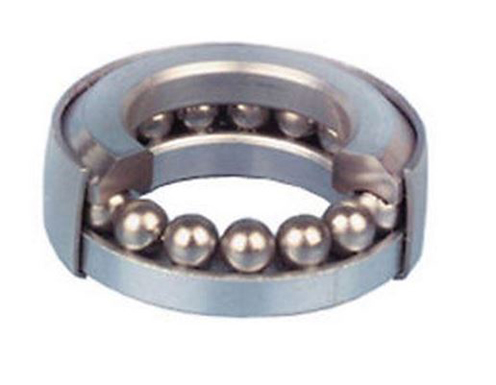

4454-00 an industrial-grade, unground, single-direction, banded thrust series ball bearing.
• Bore Diameter 1 (Shaft Washer): 0.4375 inches (7/16" or 11.113 mm)
• Bore Diameter 2 (Housing Washer): 0.4630 inches (11.76 mm)
• Outside Diameter: 0.9380 inches (15/16" or 23.825 mm)
• Overall Width / Height: 0.3440 inches (~11/32" or 8.738 mm)
• Dynamic Load Capacity: 805 lbf
• Bearing Construction: Single row, full complement (cageless) of hardened steel balls built into a banded steel housing.
• Precision Class: Unground (Low Precision / ABEC 1 footprint).
