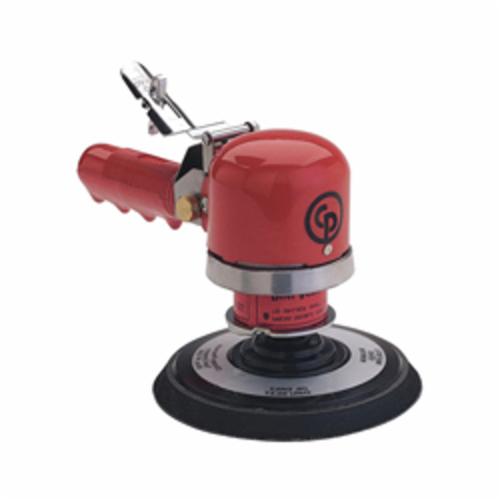

Chicago Pneumatic CP-9164 Dual-Action Heavy Duty Air Sander, 6 in Pad, 0.3 hp, 4.5 cfm Air Flow, 90 psi, Tool Only
Designed for body shops applications like blending and smoothing filler, feather edging and pre-paint preparation, this 6 Inch (150mm) dual action sander series offers the possibility to choose between an pneumatic orbital sander (3/8 Inch - 10mm orbit) and a pneumatic rotary sander.
-
BrandChicago Pneumatic
-
UPC015451394837
-
Manufacturer Part NumberT023990
-
CountryUSA|Canada
-
Throttle StyleLever
-
Tool/KitBare Tool
-
Minimum Hose Size3/8 in
-
TypeDual-Action Heavy Duty
-
Air Flow Rate4.5 cfm
-
Air Inlet1/4 in NPT
-
Air Pressure90 psi
-
Horsepower0.3 hp
-
Housing MaterialPlastic
-
Dimensions4.2 in L
-
Sound Level94 dBA
-
Speed10000 rpm
-
Exhaust LocationRear
-
Pad Size6 in
- Operator comfort
- excellent for blending and smoothing filler, feather edging and pre-paint preparation
- General-duty sander with rotary or random orbital options
- PSA sanding pad
- Insulated grip and lock off throttle to prevent accidental start ups
- Power regulator for precise control
- 5/16-24 spindle thread
- 4.7 in height over spindle
- 6.2 m/S2 vibration
- Required pressure 90 psi
- 3/8 in dia orbit
- Non-vacuum
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 11C967 |
-
Alternative Part NumberCP870
-
UNSPSC27112742
-
Package Description1/PK
-
Standards/ApprovalsEN292|PROP65: This Product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
