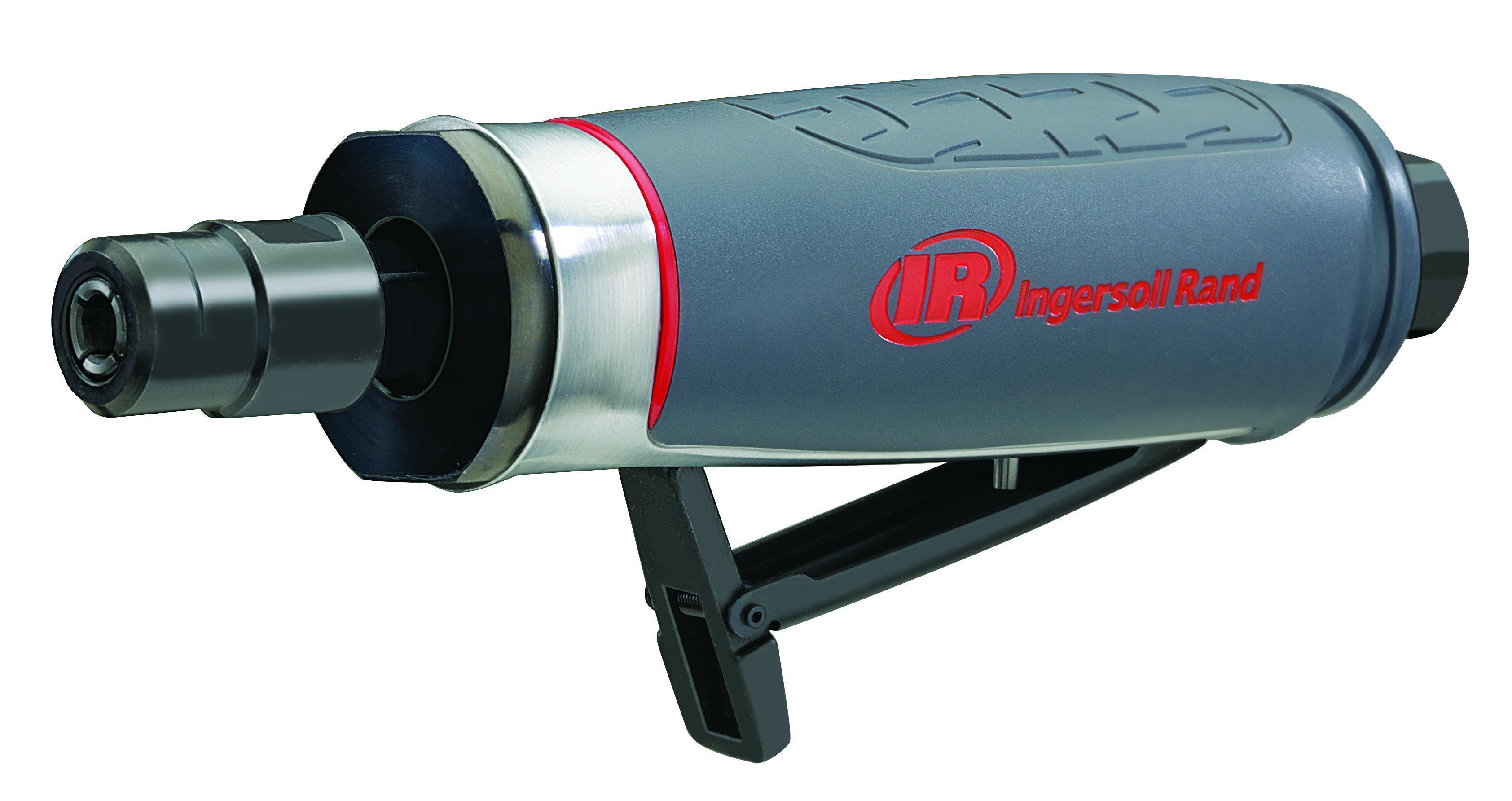

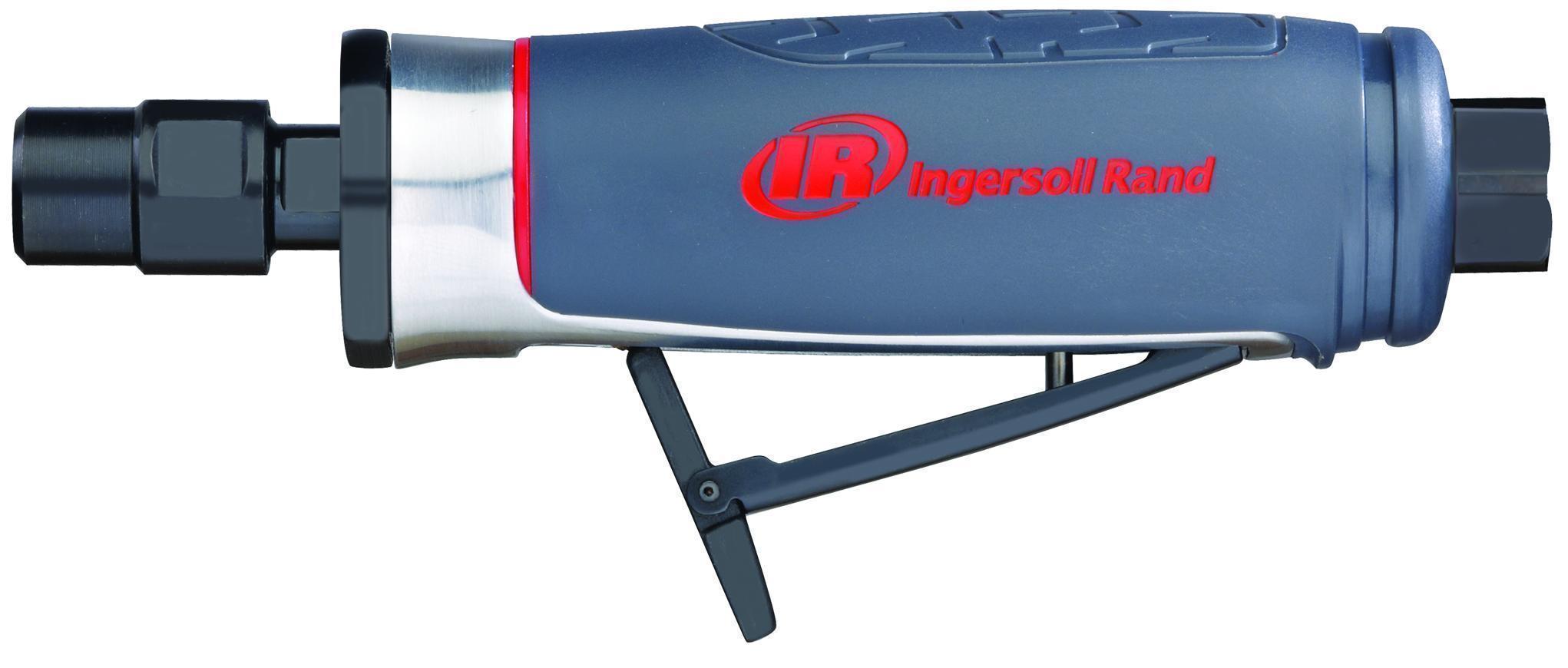

Ingersoll-Rand 5108MAX Straight Air Die Grinder, 1/4 in Collet, 0.4 hp, 25 cfm Air Flow, 90 psi, 25000 rpm Speed
MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.
-
BrandIngersoll Rand
-
UPC663023106151
-
Manufacturer Part Number5108MAX
-
CountryUSA
-
Collet Capacity1/4 in
-
Minimum Hose Size3/8 in
-
Handle TypeErgonomic Grip
-
Air Flow Rate25 cfm
-
Air Inlet1/4 in NPT
-
Air Pressure90 psi
-
Horsepower0.4 hp
-
Dimensions6-9/16 in OAL
-
Exhaust LocationRear
-
Throttle StyleLever
-
Tool/KitBare Tool
-
TypeStraight
-
Sound Level94.3 dB
-
Speed25000 rpm
- MAX Power, With a 0.4HP (0.3kW) motor and speeds up to 25,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs
- MAX Comfort, Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue and maximizes operator comfort during extended runtimes
- MAX Cleanliness, Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 23Z013 |
| Fastenal | 0247338 |
| Ferguson | I5108MAX |
-
UNSPSC27111905
-

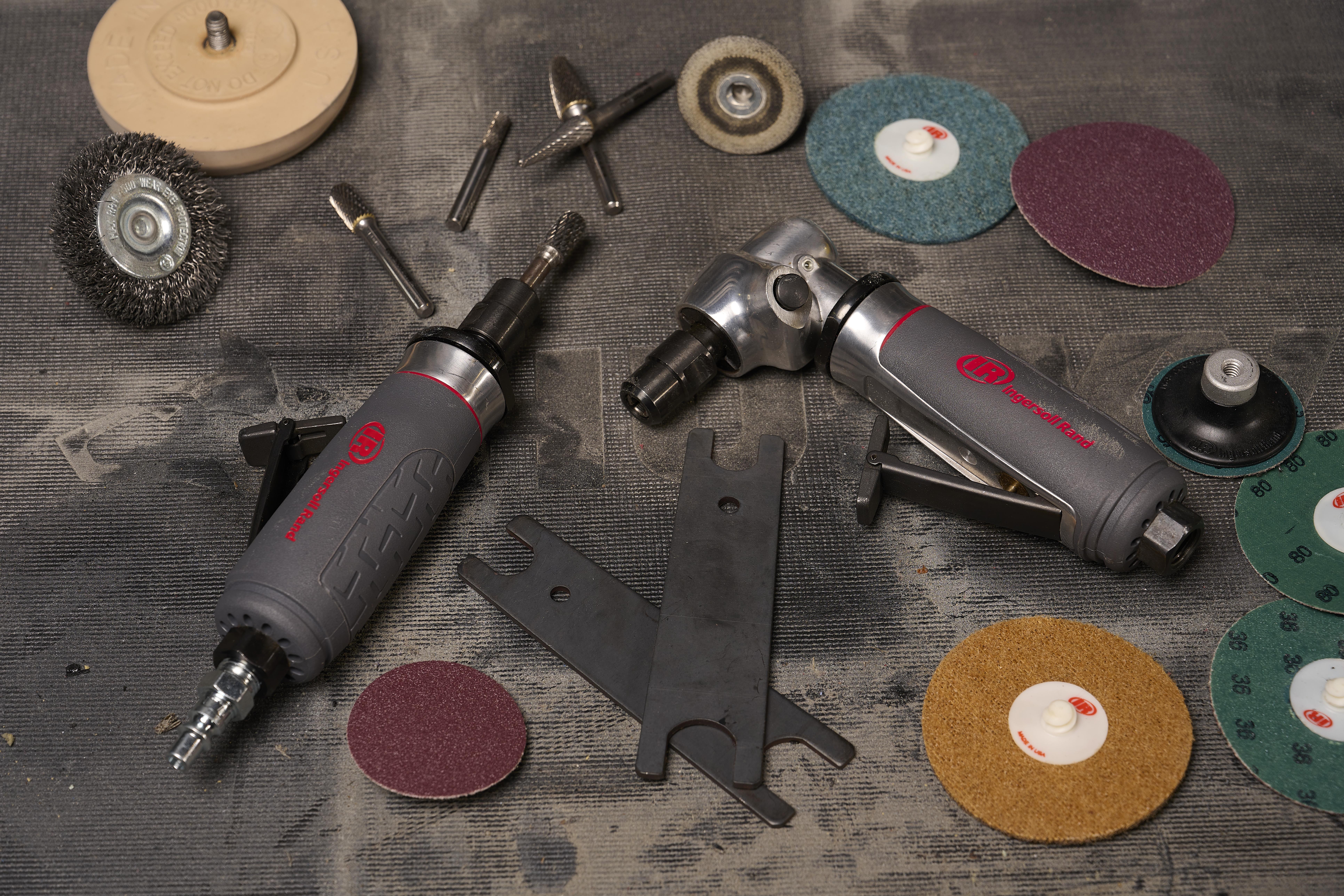

Includes(3) Wrenches, (1) 6mm Collet, (1) Piped Away Exhaust Kit, (1) Service Clamp Block, (1) Manual and (1) Tool
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
-
Line Drawing
-
Technical Bulletin
