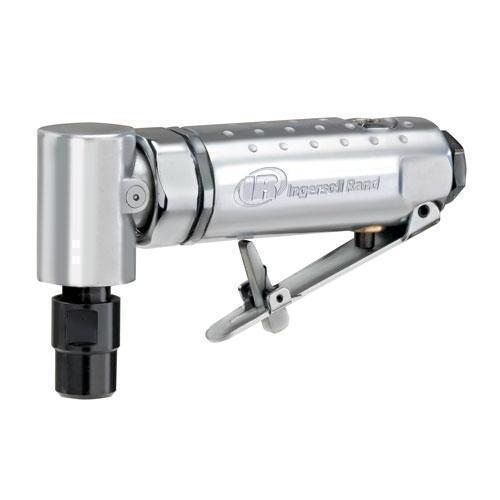

Ingersoll-Rand 301B Right Angle Air Die Grinder, 1/4 in Collet, 0.25 hp, 24 cfm Air Flow, 90 psi, 21000 rpm Speed
As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere!
-
BrandIngersoll Rand
-
UPC663023106106
-
Manufacturer Part Number301B
-
CountryUSA
-
Throttle StyleLever
-
Tool/KitBare Tool
-
Collet Capacity1/4 in
-
Minimum Hose Size3/8 in
-
TypeRight Angle
-
Air Flow Rate24 cfm
-
Air Inlet1/4 in NPT
-
Air Pressure90 psi
-
Horsepower0.25 hp
-
Housing MaterialAluminum
-
Dimensions5-1/4 in OAL
-
Sound Level92 dB
-
Speed21000 rpm
-
Exhaust LocationFront
- Performance, Powerful motor with precision gearing offers .25 HP at 21,000 RPM
- Durable, Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life
- Strong, Aluminum housing withstands tough operating conditions
- Lightweight, Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots
- Front exhaust, Helps keep work surface clean
- Safety - 1/4 in collet and a integral self-locking throttle lever that prevents accidental start up
- Usage, Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 23Z008 |
| MSC | 42178277 |
| Fastenal | 0245030 |
| Ferguson | I301B |
-
UNSPSC27111905
-
Includes(2) Wrenches, (1) 6mm Collet, (1) Manual and (1) Tool
-
Instruction/Installation Manual
-
Owners/User Manual
-
Line Drawing
-
Line Drawing
