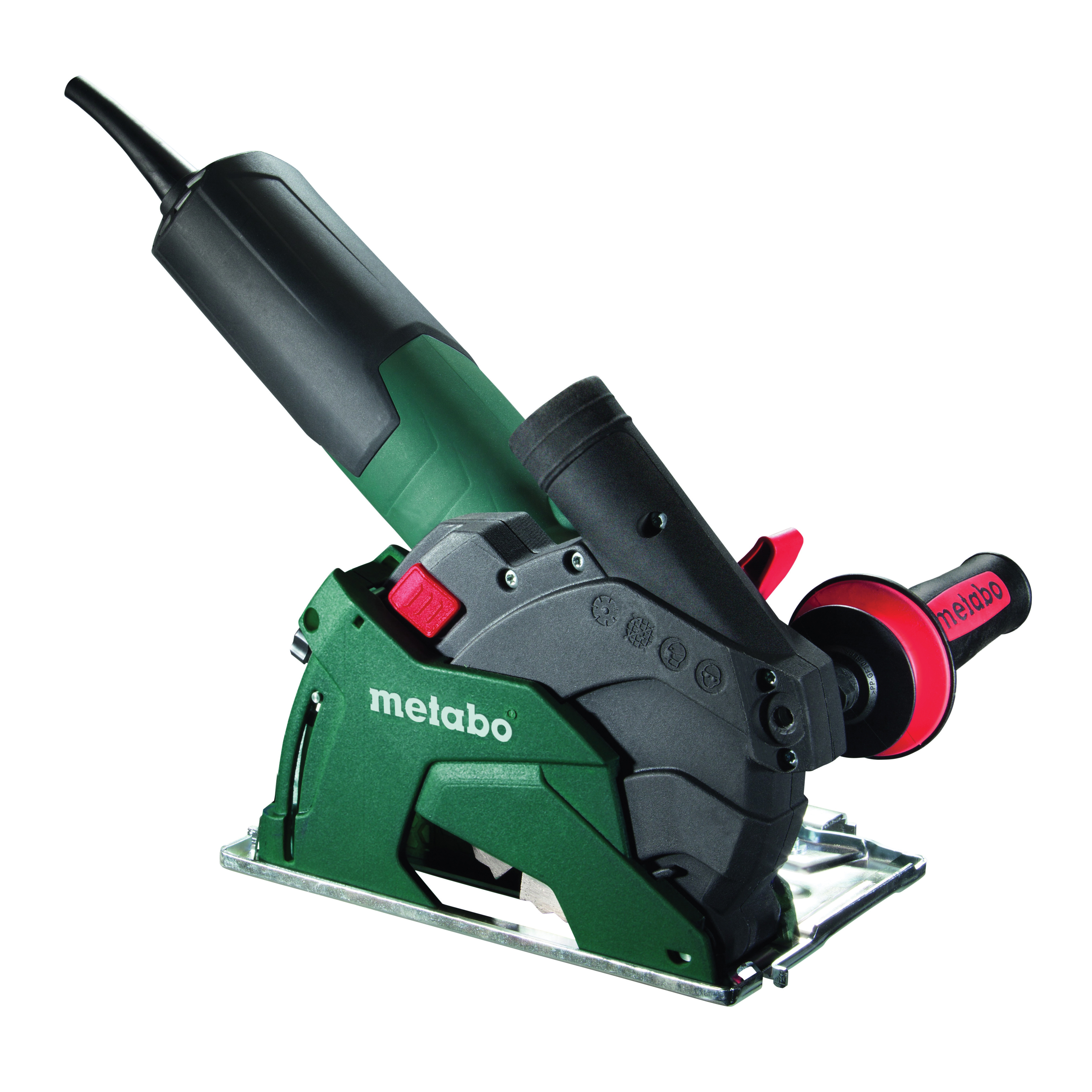

metabo® 600408620 CED Concrete Cutter, 5 in Dia Wheel, 5/8-11 UNC Arbor/Shank, 110 to 120 V AC
metabo® 600408620 CED Concrete Cutter, 5 in Dia Wheel, 5/8-11 UNC Arbor/Shank, 110 to 120 VAC
-
Brandmetabo®
-
Manufacturer Part Number600408620
-
CountryUSA
-
Tool/KitBare Tool
-
Handle TypeBarrel Grip/metabo® VibraTech
-
Voltage Rating110 to 120 V AC
-
Control TypeLock-On Slide Switch
-
Cord Type13 ft
-
Wheel Diameter5 in
-
Amperage Rating10.5 A
-
Arbor/Shank Size5/8-11 UNC
-
SeriesCED
-
Dimensions13-25/32 in L x 7-1/2 in W x 10-13/16 in H
-
Sound Level94 dBA Pressure Level/105 dBA Power Level
-
Speed9600 rpm No Load/8800 rpm Rated Load
- System for low-dust cutting up to 27 mm indoors and outdoors
- Longer service life, more drive - the Metabo LongLife Motor with patented dust guard, up to 20 Percent more high overload capacity and 50 Percent more torque

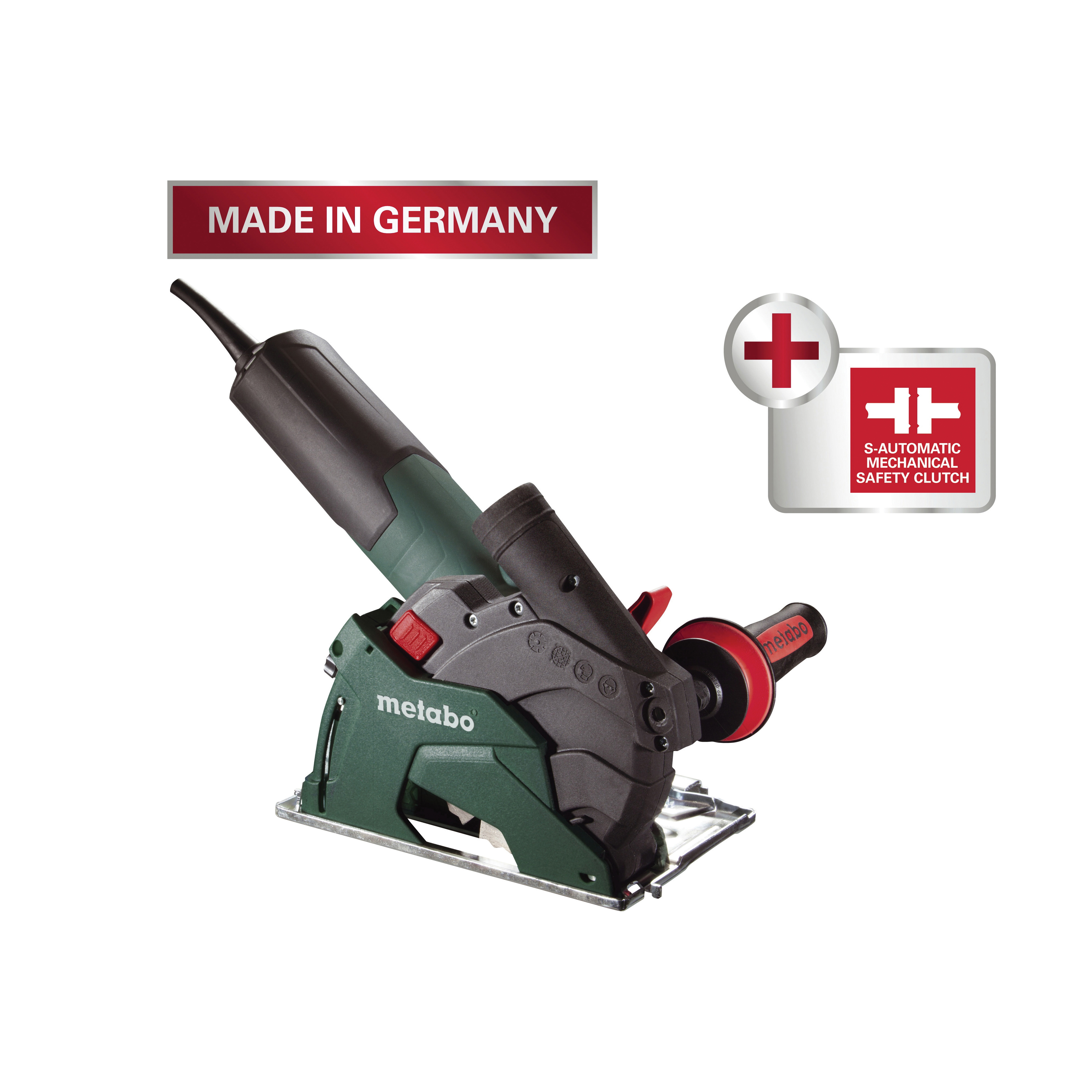

- Metabo S-automatic Torque Limiting Clutch - minimises kick-back to the lowest level when the disc jams unexpectedly - for maximum user protection and swift progress
- Auto-stop carbon brushes to protect the motor
- Suitable for 120 V direct current (DC)
- Aluminum flange for long service life using heavy accessories, e.g diamond discs
- Extraction hood CED 125 that can be mounted tool-free, made of anti-static plastic with plunge function
- Robust, detachable metal table for stable working near walls and for free-hand cuts
-
Alternative Part NumberW12-125HDSetCED
-
UNSPSC27112749
