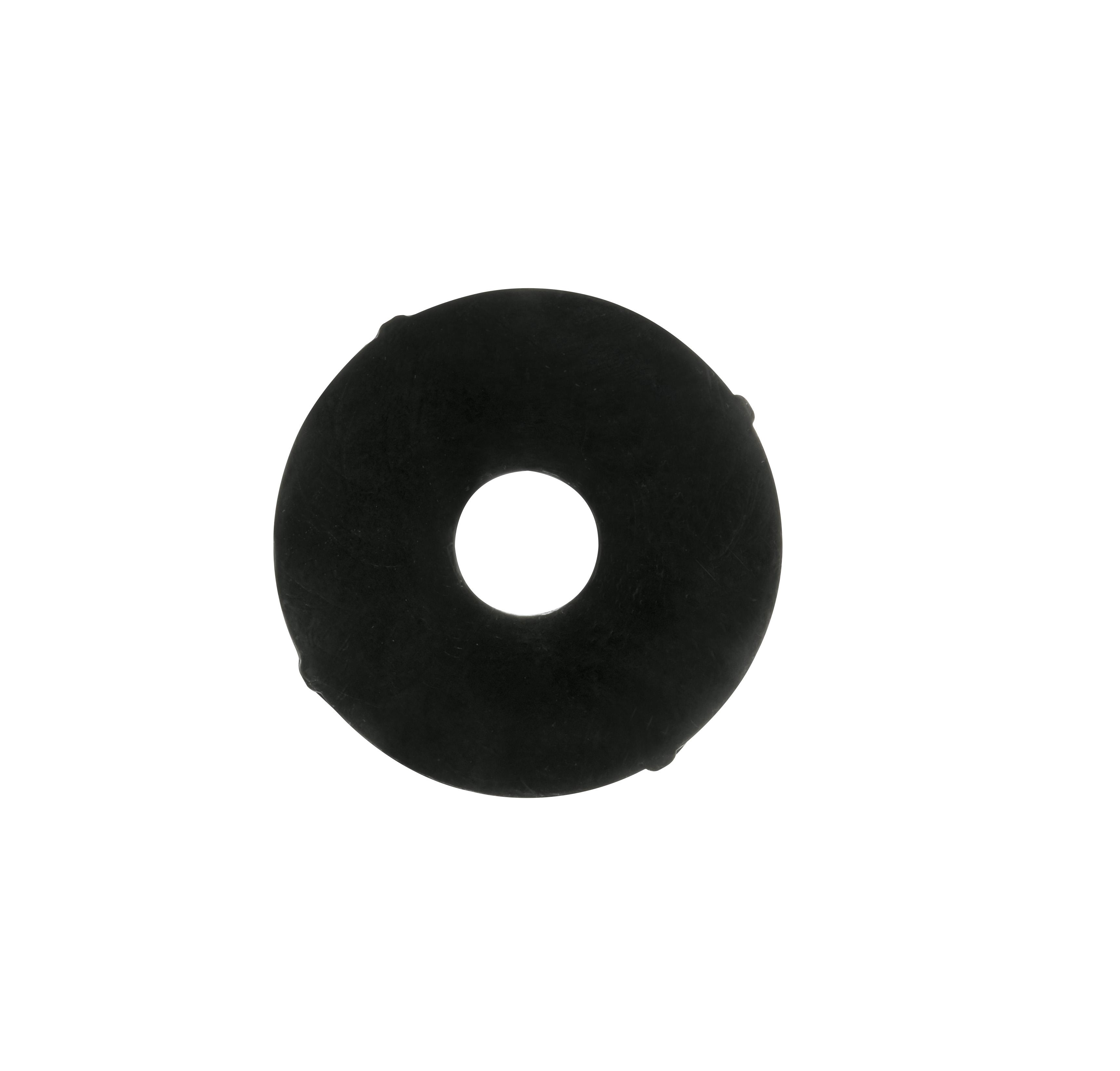

Milwaukee® 48-20-5171 Replacement Guide Plate, For Use With 48-20-5150 3-1/2 in Thickwall Core Bit and 48-20-5199 Centering Pin
Increase your precision in masonry and concrete drilling with the Milwaukee® guide plate for thick wall core bit. You'll see reduced bit walk and improved bit stability when you use Milwaukee's durable plastic guide plate and centering pin (not included) for starting holes with your SDS plus rotary hammer drill.
-
BrandMilwaukee®
-
UPC045242106301
-
Manufacturer Part Number48-20-5171
-
CountryUSA|Canada
-
MaterialPlastic
-
Dimensions2-1/2 in Dia
-
Suitable For Use With48-20-5150 3-1/2 in Thickwall Core Bit and 48-20-5199 Centering Pin
- Increased drilling precision - reduces bit walk and improves bit stability
- For bit stability - reduces bit walk
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 22UR22 |
-
Alternative Part Number8576470
-
UNSPSC23153002
-
IDEA Index ID8576470
-
Package Description1/PK
-
Warranty5 years
