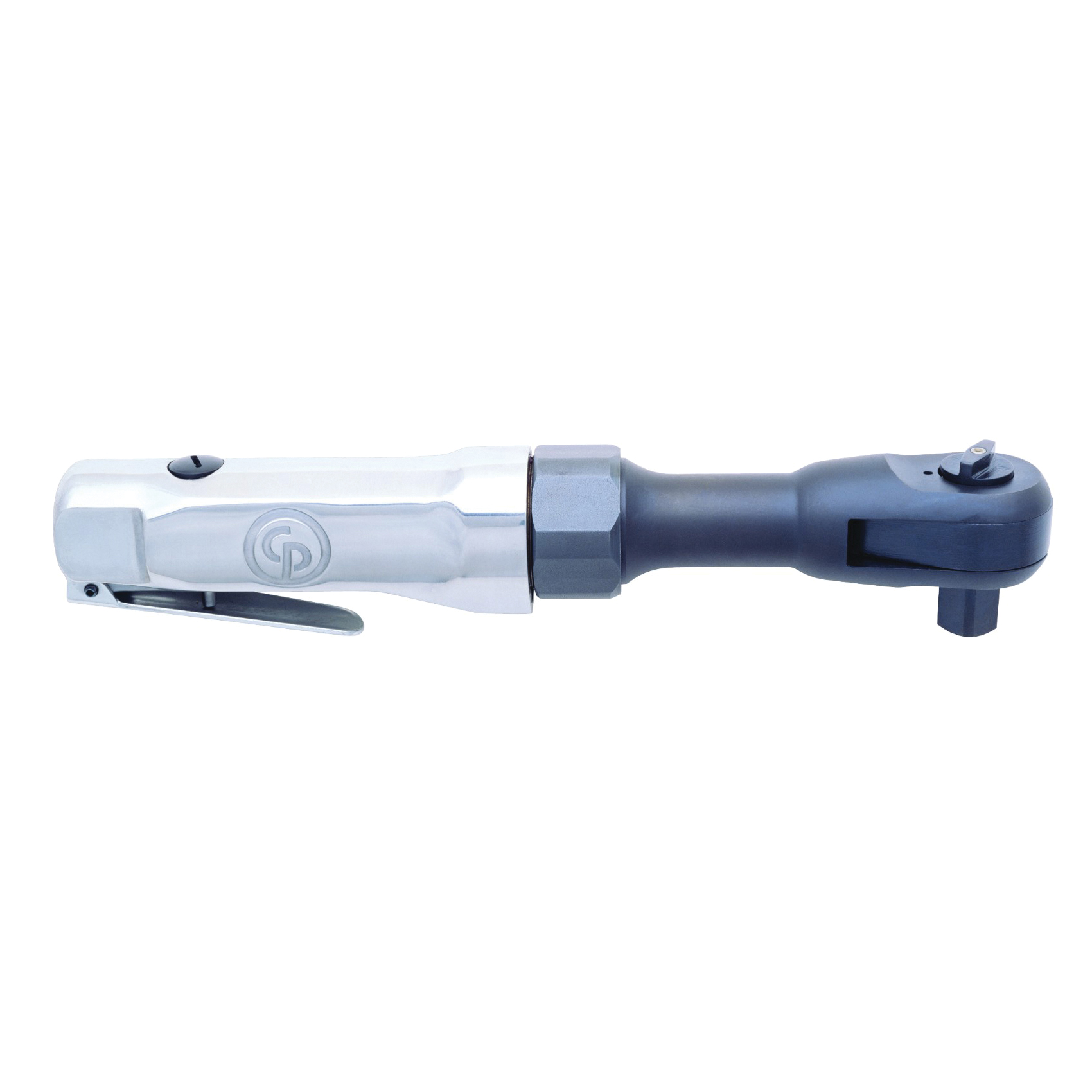

Chicago Pneumatic CP-9429-H Ratchet Wrench, 1/2 in Drive, 70 N-m Torque, 150 rpm Speed, 15 cfm Air Flow, 90 psi
The CP828 series pneumatic ratchet wrench is designed for general maintenance with its torque of 50 ft.lbs / 70 Nm. The CP828 Series is composed of 2 models: 3/8 Inch and 1/2 Inch anvil.
-
BrandChicago Pneumatic
-
UPC015451028909
-
Manufacturer Part NumberT022970
-
CountryUSA|Canada
-
Tool/KitBare Tool
-
Torque Rating70 N-m
-
Minimum Hose Size3/8 in
-
Air Flow Rate15 cfm
-
Air Inlet1/4 in
-
Air Pressure90 psi
-
Dimensions10 in L
-
Sound Level103 dB
-
Speed150 rpm
-
Drive Size1/2 in
-
Drive TypeSquare
-
Exhaust LocationHandle
- Ratchets for general maintenance with excellent durability
- Chicago Pneumatic's patented tri spring anti-slip head design
- Grease fitting on the reverse lever
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 11C963 |
| Grainger | 11C963 |
-
Alternative Part NumberCP828H
-
UNSPSC27111711
-
Package Description1/PK
-
Standards/ApprovalsISO-28927-2|PROP65: This Product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Instruction/Installation Manual
-
Owners/User Manual
-
Catalog
