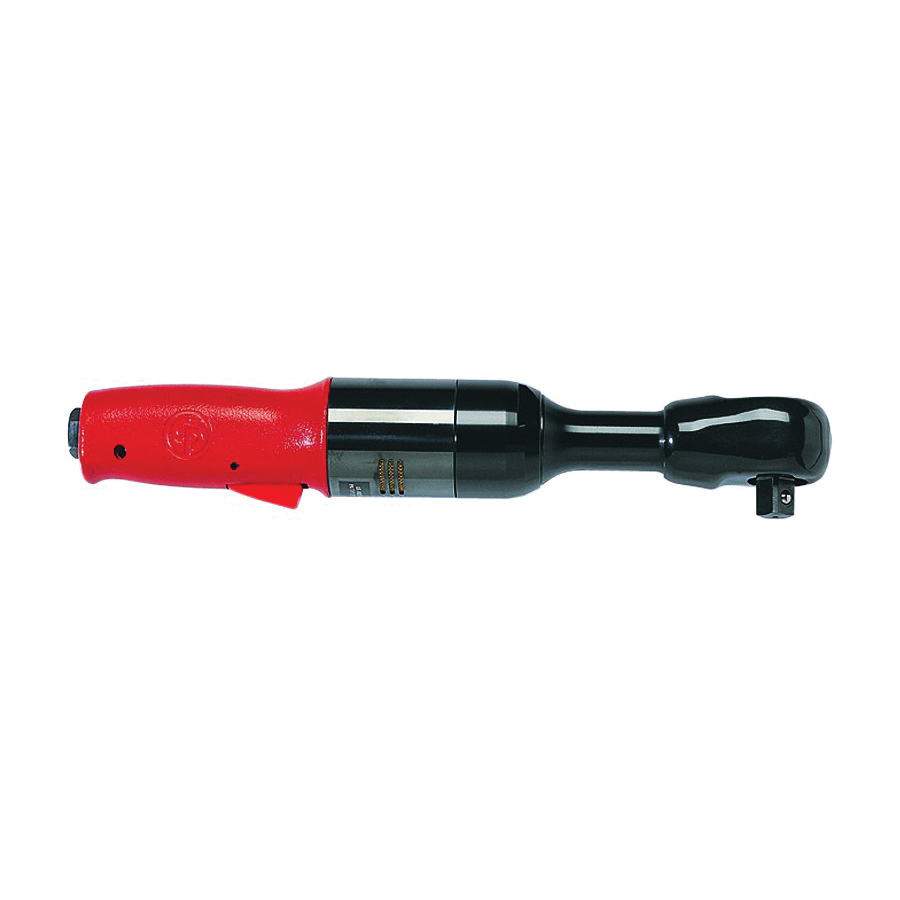

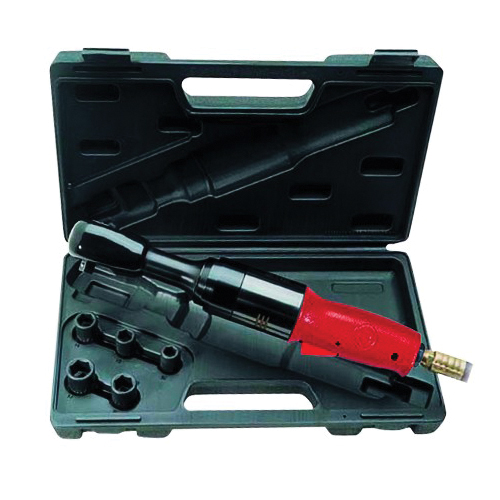

Chicago Pneumatic CP7830H Ratchet Wrench, 1/2 in Drive, 122 N-m Torque, 190 rpm Speed, 21 cfm Air Flow, 90 psi
The CP7830 features a maximum torque up to 90 ft.lbs / 122 Nm allowing quick and easy fastening. The progressive throttle allows users to apply the necessary amount of power safely and effectively. The tool benefits from the patented TriSpring Technology which guarantees anti-slip head design. The grease fitting option on the reverse button allows for easier lubrication. The pneumatic ratchet wrench CP7830 Series is composed of 2 models: 3/8 Inch and 1/2 Inch anvil.
-
BrandChicago Pneumatic
-
UPC015451561659
-
Manufacturer Part Number8941078308
-
CountryUSA|Canada
-
Tool/KitBare Tool
-
Torque Rating122 N-m
-
Minimum Hose Size3/8 in
-
Air Flow Rate21 cfm
-
Air Inlet1/4 in
-
Air Pressure90 psi
-
Dimensions12 in L
-
Sound Level96 dB
-
Speed190 rpm
-
Drive Size1/2 in
-
Drive TypeSquare
- Ratchet for general maintenance applications
- High torque and durable
- Lightweight and well balanced tool
- 1/2 in high power ratchet
- Adjustable side exhaust low noise
- Progressive tease throttle
- Highest torque on the market
- Grease fitting on the reverse button
- Sturdy aluminum alloy head
- CP's patented tri spring anti-slip head design with protective head cover
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 11C948 |
-
Alternative Part NumberCP7830HQ
-
UNSPSC27111711
-
Package Description1/PK
-
Standards/ApprovalsISO-28927-2|PROP65: This Product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
