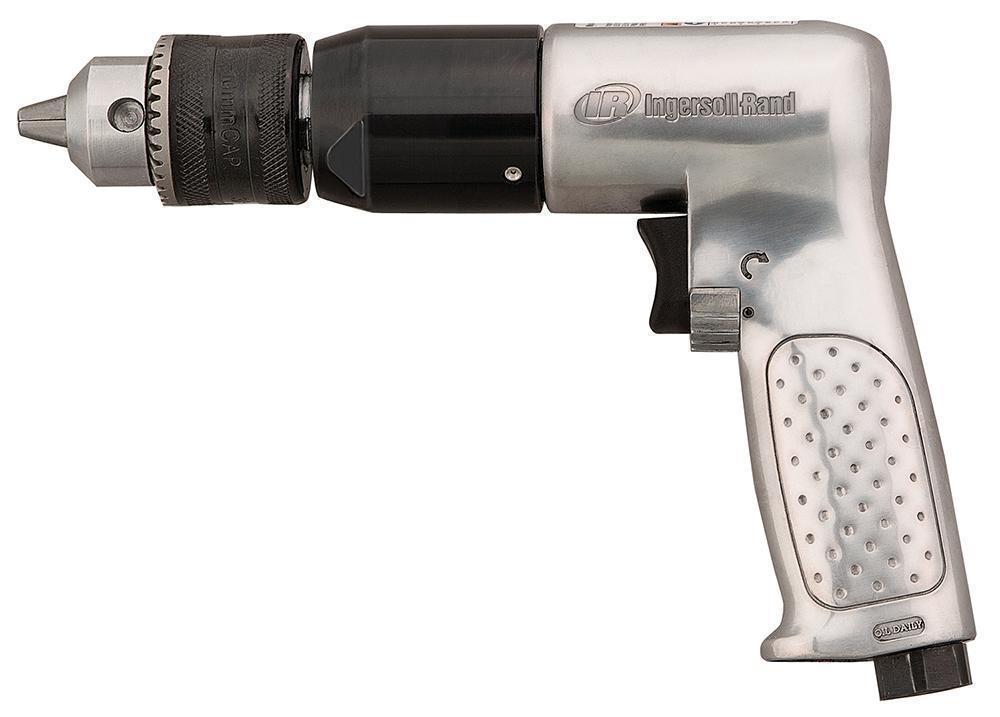

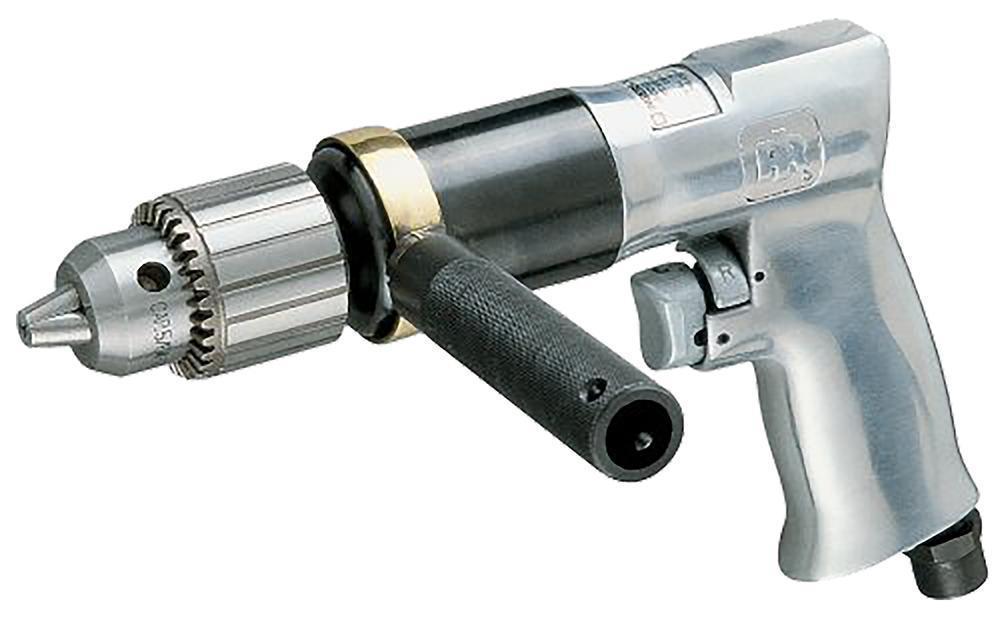

Ingersoll-Rand 7803RA 7803 Air Drill, 1/2 in Keyed Chuck, 1/2 hp, 27 cfm Air Flow, 90 psi, 8-7/8 in OAL
A classic pistol-shaped 1/2” reversible air drill with a feather trigger for variable speed options and a keyed chuck. this drill is as versatile as it is efficient.
-
BrandIngersoll Rand
-
UPC066302300019
-
Manufacturer Part Number7803RA
-
CountryUSA
-
Throttle StyleTrigger
-
Tool/KitBare Tool
-
Chuck Size1/2 in
-
Chuck TypeKeyed
-
Minimum Hose Size3/8 in
-
ReversibleYes
-
Handle TypePistol Grip
-
Air Flow Rate27 cfm
-
Air Inlet1/4 in NPTF
-
Air Pressure90 psi
-
Series7803
-
Horsepower1/2 hp
-
Housing MaterialAluminum
-
Sound Level83 dBA
-
Speed500 rpm
-
Overall Length8-7/8 in
- Reliable, With the durability of its aluminum housing, you can count on this tool to be reliable and work well time after time
- Reversible Motor, The quick reverse lever allows you to choose between forward and reverse on the .5 HP motor
- Balanced, Planetary gear reduction balances the load
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5KB25 |
| MSC | 41002387 |
| Fastenal | 1591-7803R |
| Ferguson | I7803RA |
-
UNSPSC27112703
-
Instruction/Installation Manual
-
Owners/User Manual
-
Line Drawing
-
Line Drawing
