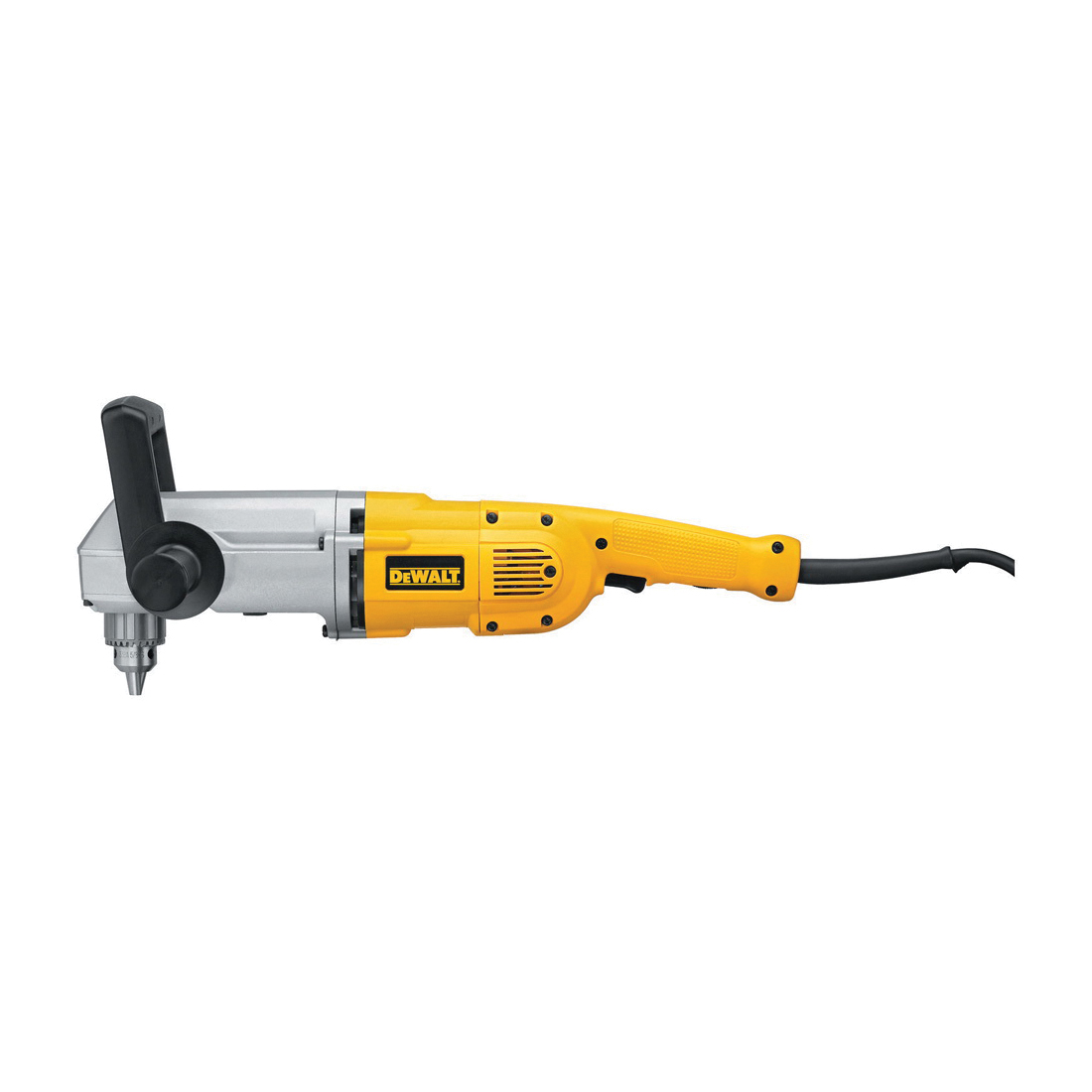

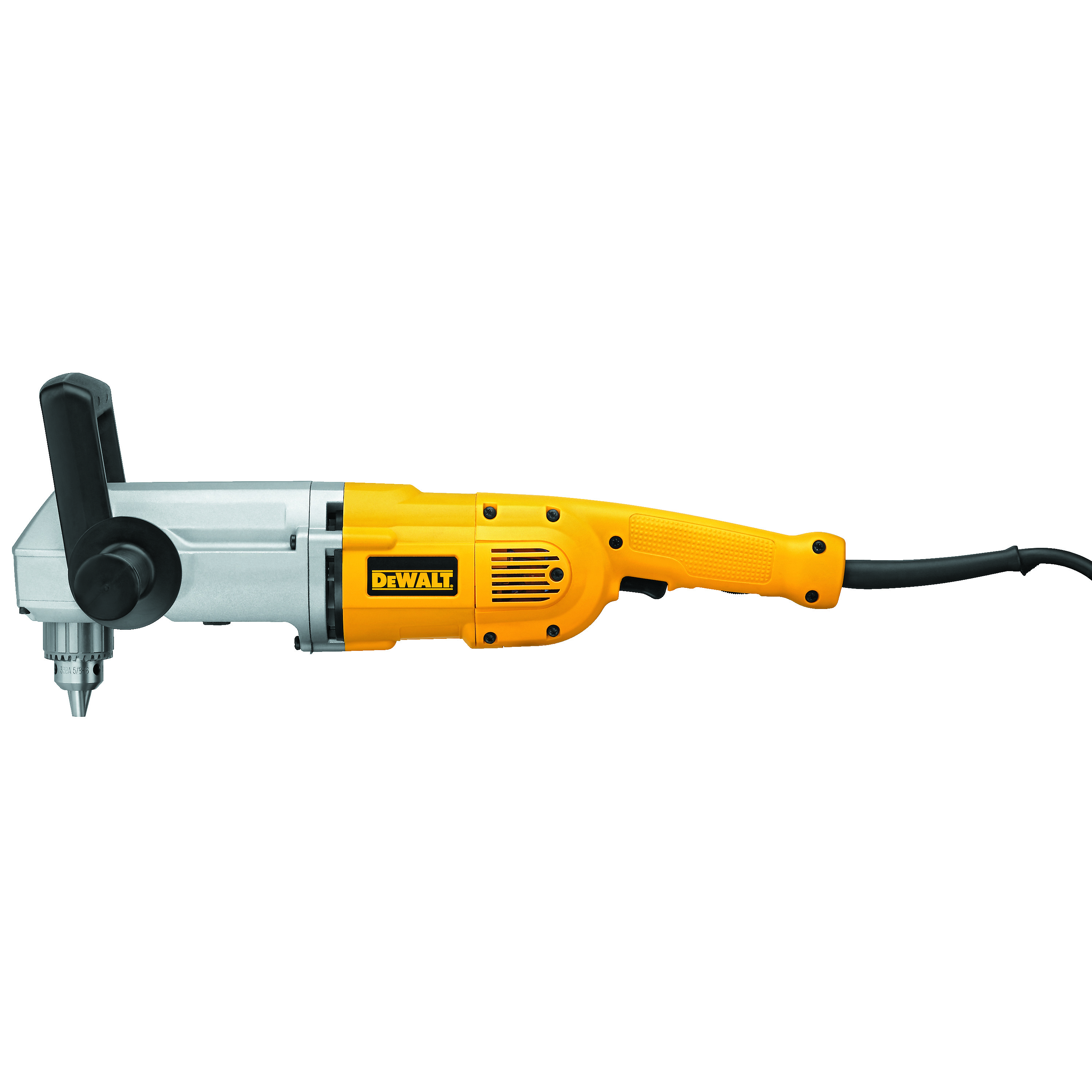

Black&Decker 1/2" JOIST/STUD DRILL KITS BD- DW-124-K
The 100% ball bearing construction of the DW124K 1/2 in stud and joist drill kit provides durability and longer tool life. Take control by setting the mechanical slip clutch in low gear with the adjustable front handle and 2-position side handle and 21 in OAL.
-
BrandDeWALT®
-
UPC028876101249
-
Manufacturer Part NumberDW124K
-
CountryUSA
-
Tool/KitKit
-
Chuck Size1/2 in
-
Chuck TypeKeyed
-
ColorYellow
-
TypeCorded Reversible
-
Handle Type2-Position Side/Adjustable Front/Bail/Straight
-
Voltage Rating120 V AC
-
Control TypeMechanical Clutch/Trigger Switch
-
Amperage Rating11.5 A
-
Housing MaterialPlastic
-
Number of Speeds2
-
Speed300/1200 rpm
-
Overall Length21 in
- Mechanical-slip clutch in low gear to prevent bit lock-up and to provide control of reactionary torque
- Triple gear reduction provides increased torque and reduces gear stress
- Mechanically controlled 2-speed to match rpm/torque to application requirement
- 100% ball-bearing construction provides durability and longer tool life
- Adjustable front handle and 2-position side handle provide maximum leverage and control
- 21 in overall length provides greater control and leverage
- Independently certified to meet applicable standards
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 3MH99 |
| Grainger | 3MH99 |
-
UNSPSC27112703
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant
-
Warranty3 years Limited
-
Full Engineering Drawing
