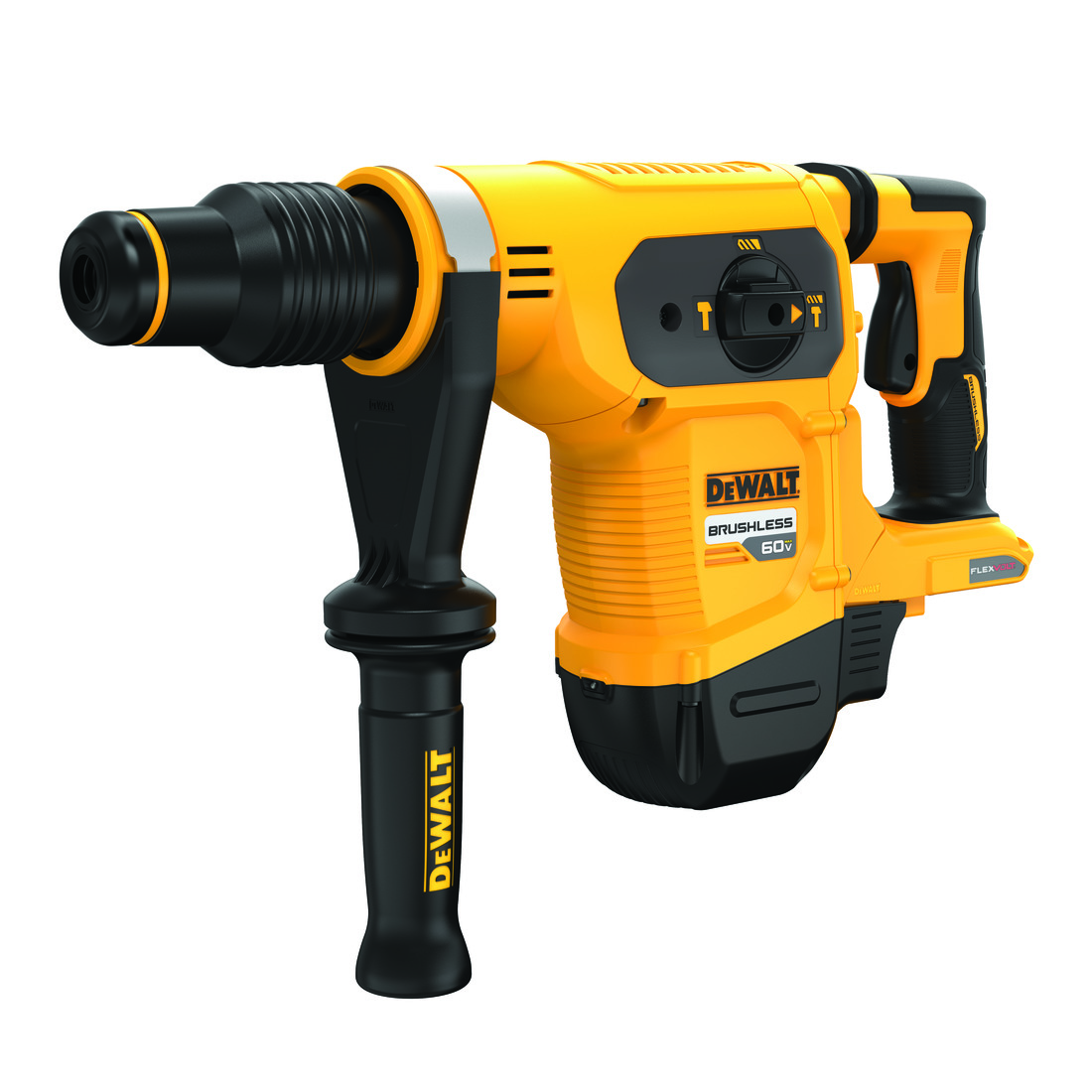

Black&Decker 60-VOLT 1-9/16" MAX ROTOHAMMERS BD- DC-H-481-B

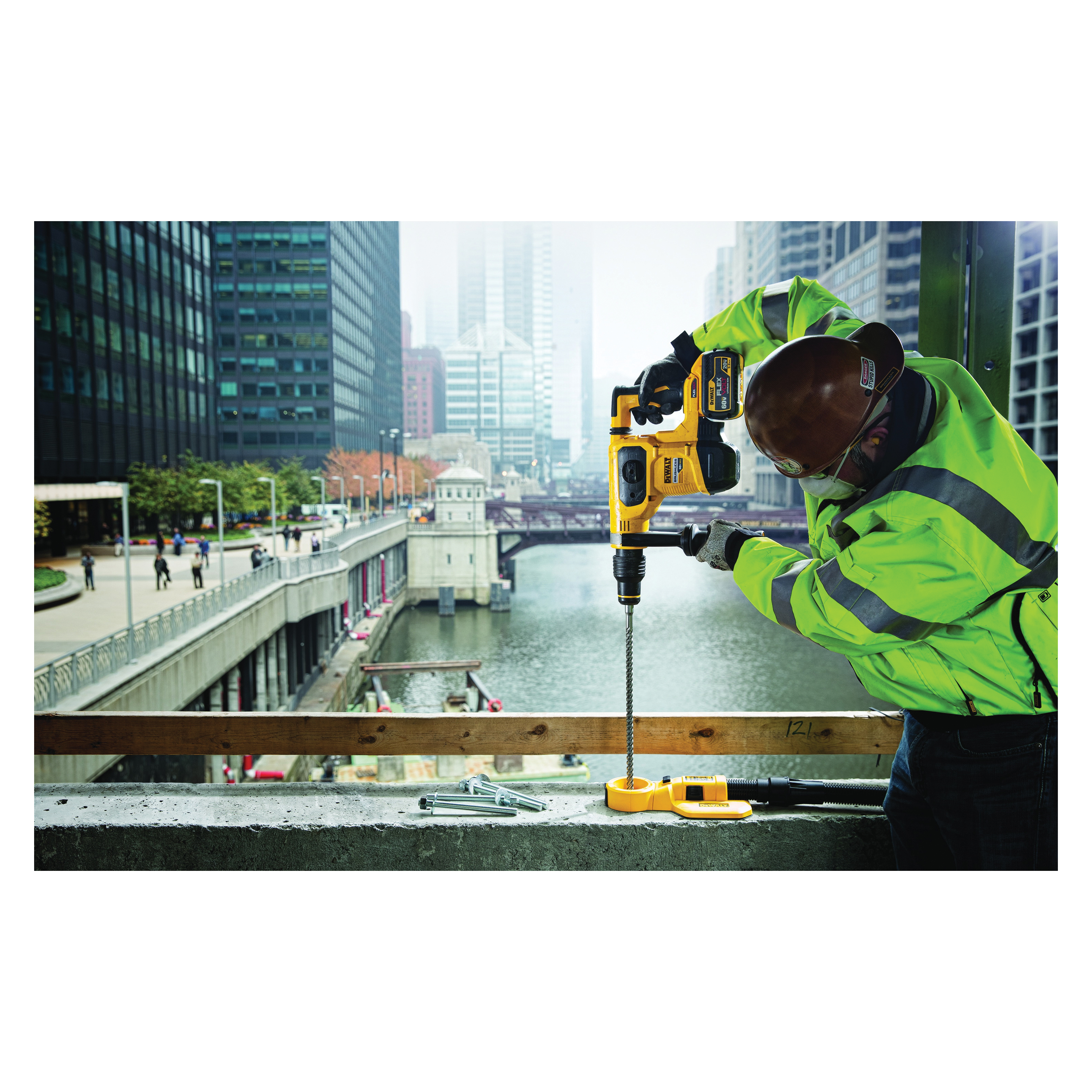

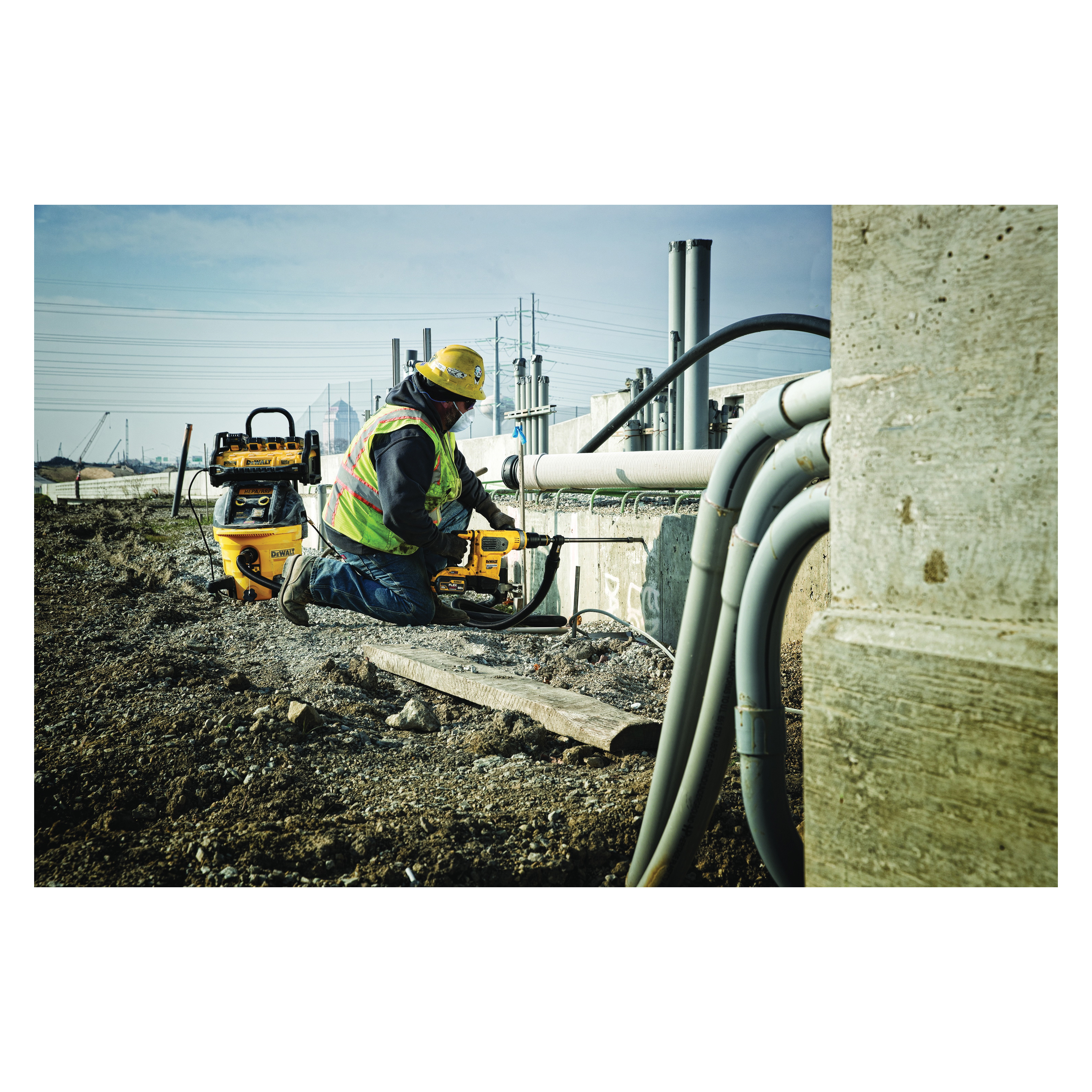

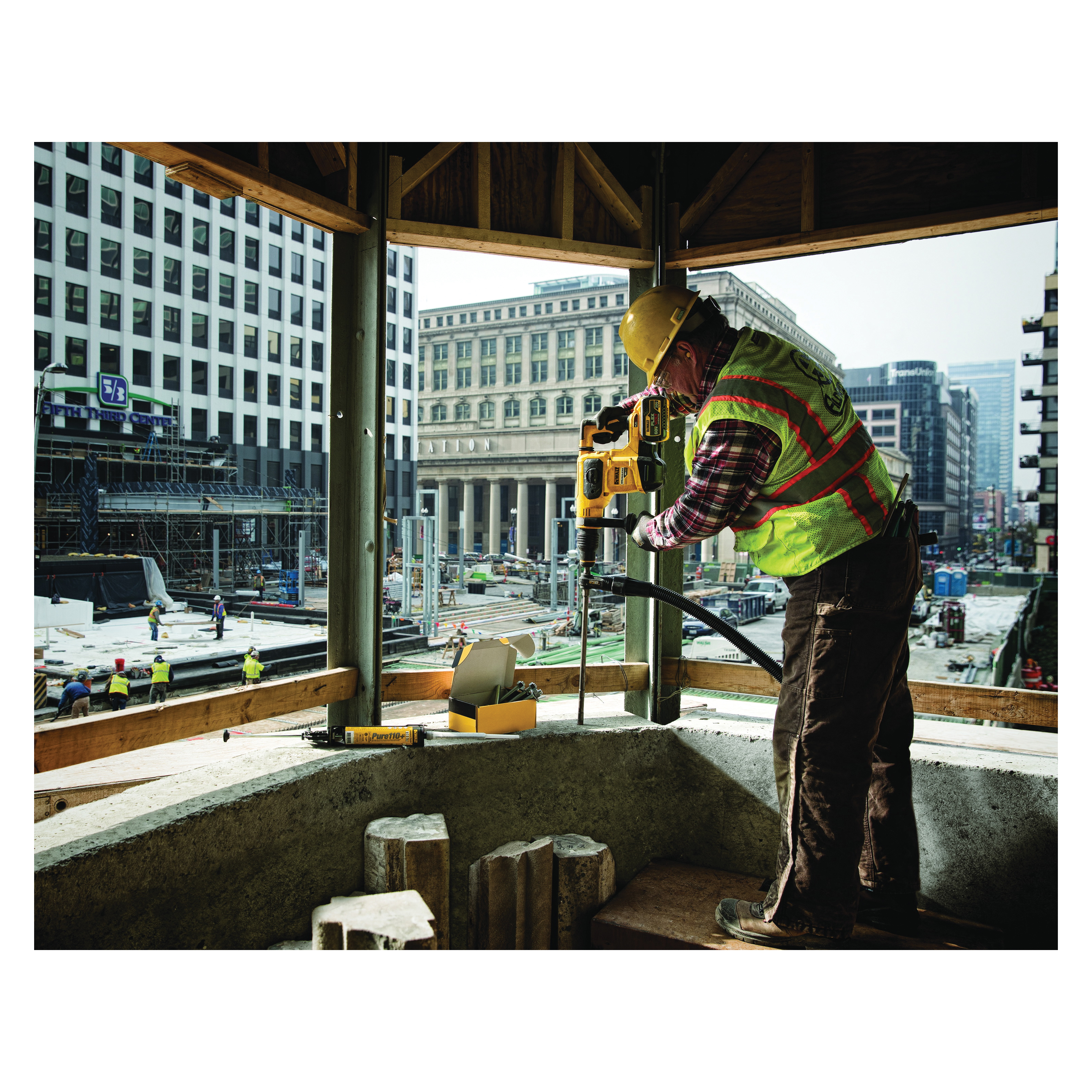

The DCH481X2 60V MAX* brushless 1-9/16 in SDS max combination hammer is a lightweight high performance hammer that is powered by a DeWALT® brushless motor and durable German engineered mechanism. The DCH481 delivers 6.1 J of impact energy for fast drilling, even in the hardest concrete. The lightweight design makes it ideally suited for horizontal serial drilling for #4 to #8 rebar, dry coring and chipping in any mid to upper wall and ceiling application. The patented E-Clutch® system provides enhanced control to the user in a bind up situation and can help minimize sudden torque reaction compared to standard clutches. The active vibration Control® technology employed delivers reduced user vibration for less user fatigue and greater productivity. with its balanced design, Shocks® active vibration Control® technology and extreme run time, this hammer is ideally suited for all day use, even in the hardest concrmaximum.
-
BrandDeWALT®
-
UPC885911477413
-
Manufacturer Part NumberDCH481B
-
CountryUSA|Canada
-
Chuck Size1-9/16 in
-
Chuck TypeSDS Max®
-
ReversibleYes
-
Handle TypeD-Ring
-
Voltage Rating60 V DC
-
Control TypeVariable Speed
-
No-Load Speed540 rpm
-
Housing MaterialPlastic
-
Impact Energy6.1 J
-
Bare Tool/KitKit
-
Battery Capacity9 Ah
-
Battery IncludedNo
-
Battery TypeLi-Ion
-
Dimensions19-3/4 in L x 18 in W
-
Blows per Minute3150 bpm
- 6.1 J of impact energy provides corded power without the cord
- E-Clutch™ for maximum control in bind-up situations - a perform and protect feature
- Shocks - Active vibration Control™ reduces vibration felt by the user at the handles, a perform and protect feature
- DeWALT® built brushless motor for all day runtime and durability
- Two 20 V/ 60 V MAX* FLEXVOLT® 9 Ah batteries
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 2144080 |
-
UNSPSC27112703
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm
-
Instruction/Installation Manual
