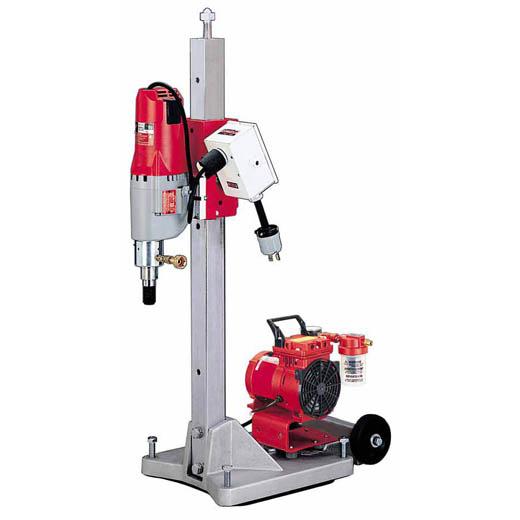

Milwaukee® 4120-22 Diamond Coring Rig, 4.8 hp, 120 VAC, 20 A
This contractor series large base stand features a cast aluminum base with 4 leveling screws for fast accurate leveling adjustment. The durable precision-ground 2-1/2 in. steel column is 43-1/2 in. high and has a universal motor adapter plate. The reversible feed handle helps the operator use the unit from either side. Model 4120-22 comes with model 4096 coring motor, Vac-U-Rig® kit as well as a meter box. The Vac-U-Rig® assembly uses a vacuum pump to apply suction to a large pad mounted on the bottom of the rig. This aids in stability when coring holes.
-
BrandMilwaukee®
-
UPC045242009596
-
Manufacturer Part Number4120-22
-
CountryUSA
-
Tool/KitBare Tool
-
Voltage Rating120 V AC
-
Amperage Rating20 A
-
Horsepower4.8 hp
-
Housing MaterialMetal
-
Dimensions43-1/2 in H
-
Speed450 to 900 rpm
- Comes with 4096 diamond coring motor
- Cast aluminum base with four levelling screws for fast accurate levelling adjustment
- Durable precision-ground 2-1/2 in steel column
- Rear mounted rack and pinion feed
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 38D748 |
| Grainger | 38D748 |
| Grainger | 38D748 |
-
Alternative Part Number8564609
-
UNSPSC20102007
-
IDEA Index ID8564609
-
Package Description1/PK
-
Warranty5 years
