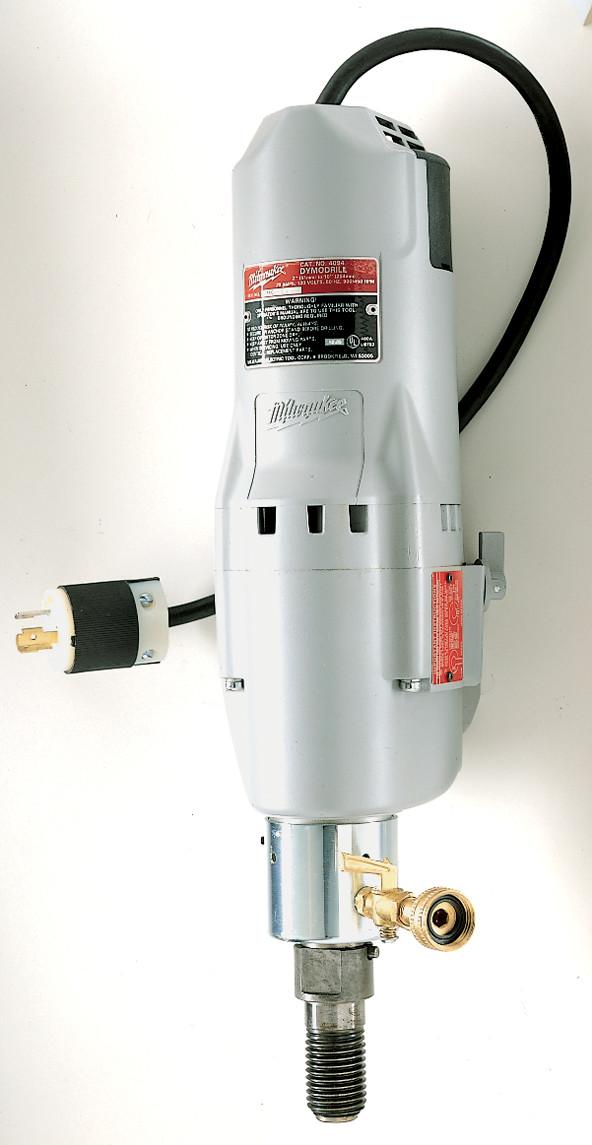

Milwaukee® 4090 Diamond Coring Motor, 375 to 750 rpm Speed, 2-1/2 hp, 120 VAC, Metal Housing, 15 A
Diamond coring motors are used with Vac-U-Rig® and Dymo-Rig diamond core rigs to drill holes into reinforced concrete. This 15 amp model provides core drilling power where 20 amp service is unavailable. This unit has a 375 RPM or 750 RPM operating speed. The 4090 uses a shear pin to protect gears and motor against overload. Shear pins are easily replaced and extra pins are included with the unit. This unit will handle core bits from 2-1/2 in. to 8 in. in diameter.
-
BrandMilwaukee®
-
UPC045242009350
-
Manufacturer Part Number4090
-
CountryUSA|Canada
-
Tool/KitKit
-
Voltage Rating120 VAC
-
Cord Type2.79 ft Corded
-
Amperage Rating15 A
-
Horsepower2-1/2 hp
-
Housing MaterialMetal
-
Dimensions8 in D
-
Speed375 to 750 rpm
- Shear pin protection protects gears and motor
- Built-in water swivel
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 38D741 |
-
Alternative Part Number8564501
-
UNSPSC27112703
-
IDEA Index ID8564501
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|UL Listed
-
Warranty5 years
-
Instruction/Installation Manual
