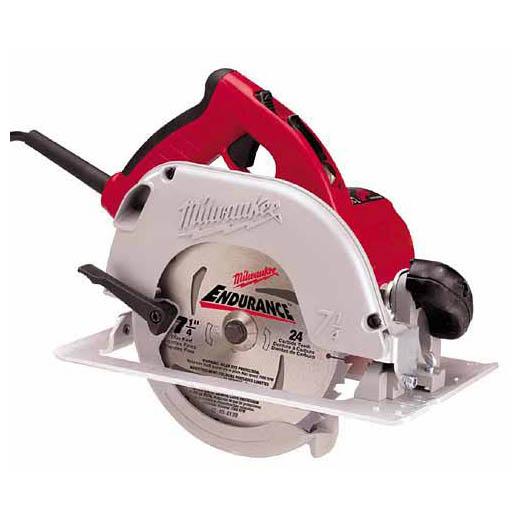

Milwaukee® TILT-LOK 6390-20 Corded Circular Saw, 7-1/4 in Dia Blade, 5/8 in Arbor/Shank, 1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in at 90 deg Cutting, Right Blade Side
The TILT-LOK™ handle on Milwaukee® 6390-20 is the most revolutionary concept for circular saws in years. The eight position cushioned top handle adjusts to any cutting application maximizing comfort and control. Weighing in at 10.4 lb and delivering 3.25 hp maximum, this tool offers the best power to weight ratio in the industry. The blade can bevel to 50 deg and offers superior visibility and a clear sight-line from either side. Helical steel gears and a 22 A switch are just two of the features that ensure the Milwaukee® reputation for durability.
-
BrandMilwaukee®
-
UPC045242049578
-
Manufacturer Part Number6390-20
-
CountryUSA|Canada
-
Tool/KitBare Tool
-
Handle TypeFront Palm/Soft Grip/Top D-Handle
-
Voltage Rating120 VAC/VDC
-
Control TypeOn/Off
-
Cord TypeFixed Double Insulated
-
Amperage Rating15 A
-
Arbor/Shank Size5/8 in
-
Horsepower3-1/4 hp
-
Cutting Angle45/50/90 deg
-
Cutting Capacity1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in at 90 deg
-
Housing MaterialPlastic
-
Shoe MaterialAluminum
-
Dimensions13-3/4 in L
-
Bevel Capacity50 deg
-
Speed5800 rpm
-
Blade SideRight
-
Blade Size7-1/4 in Dia
- New exclusive tilt-lo main handle adjusts to the work or most comfortable work position
- 15 A, 3.25 peak horsepower motor - most powerful circle saw cuts tough materials including headers, micro lams and wet lumber with ease
- Wide, clear sight line - superior blade visibility from either side
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 4YJ79 |
-
Alternative Part Number8566261
-
UNSPSC27112709
-
IDEA Index ID8566261
-
Package Description1/PK
-
Standards/ApprovalsCSA Certified|UL Listed
-
Warranty5 years
-
Owners/User Manual
