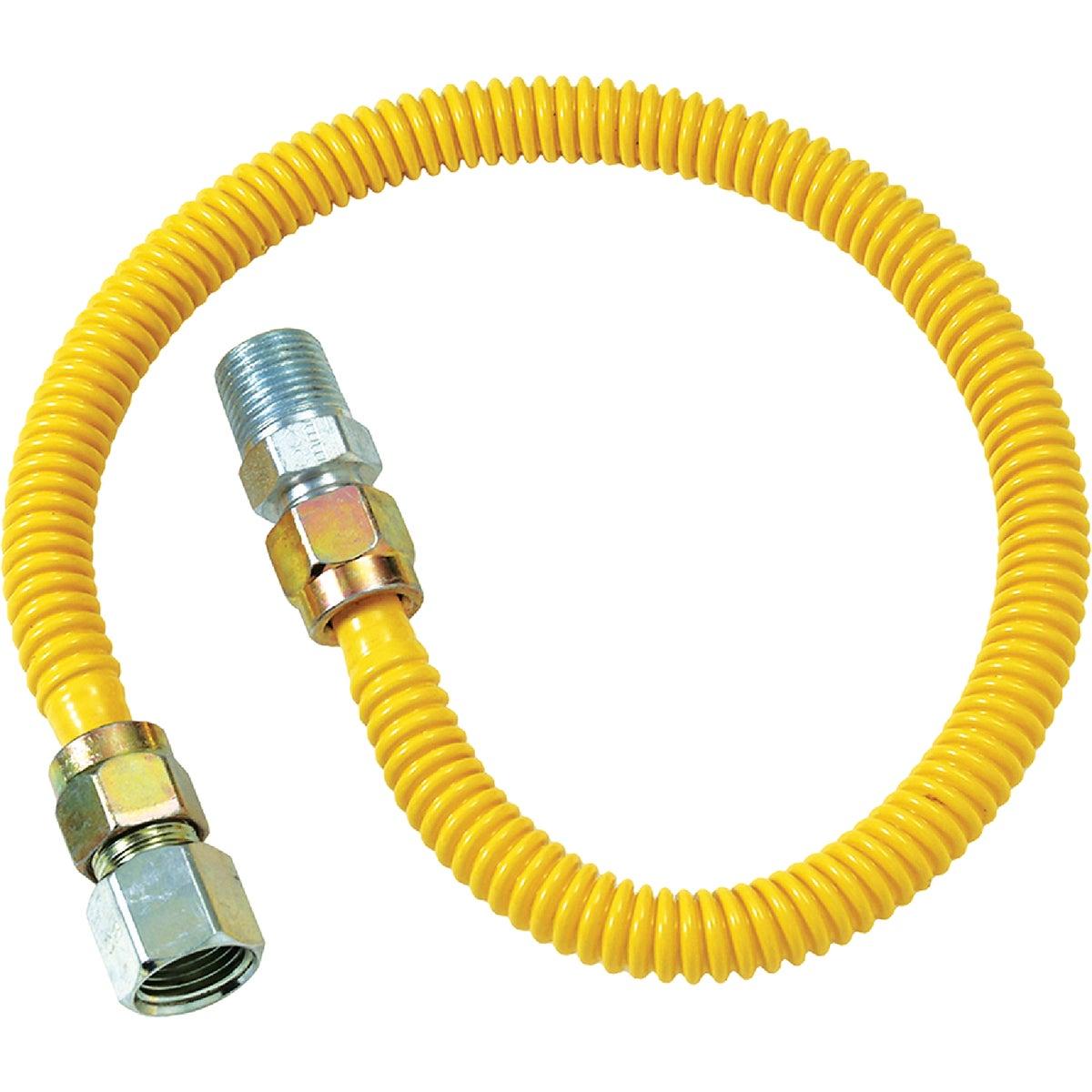

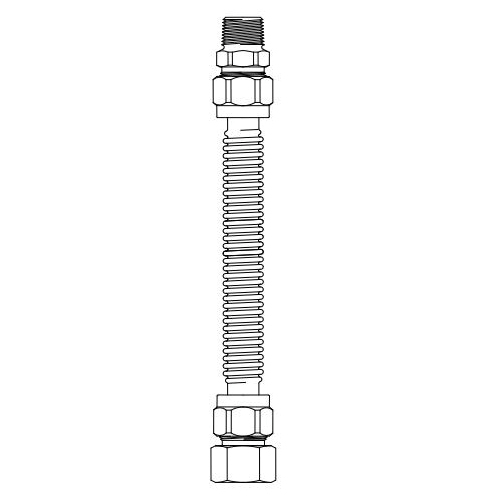

BrassCraft® ProCoat® CSSD54-18 P Gas Connector, 1/2 in Nominal, MNPT x FNPT End Style, 18 in L, Stainless Steel
BrassCraft's ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.
-
BrandBrassCraft®
-
UPC026613114286
-
Manufacturer Part NumberCSSD54-18 P
-
CountryUSA
-
FinishCoated
-
MaterialStainless Steel
-
Nominal Size1/2 in
-
SeriesCSSD54
-
Outside Diameter1/2 in
-
Length18 in
-
End StyleMNPT x FNPT
- 3/8 in ID (1/2 in OD) corrugated stainless steel with corrosion resistant coating
- Ideal for moderate demand appliances such as 4-burner gas ranges, cook-tops, dryers and water heaters
- Use with natural, manufactured, mixed and liquefied petroleum (LP or propane) gases and LP gas-air mixtures
- ProCoat coating corrosion resistant to harsh chemicals as well as UV rays and salt
- Smooth, burnished connector ends seal with less torque, making installation easier
- High tensile strength stainless steel is less susceptible to work hardening
- Deep corrugations enhance flexibility and maneuverability of connector during installation
- Gas connector is 100% leak tested
- Approved for indoor and outdoor use
- -40 to 150 deg F temperature
- 1/2 psi max pressure
| Cross-Reference Number |
|---|
| 401412 |
-
UNSPSC40141700
-
Package Description5/CTN
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Catalog
-
Instruction/Installation Manual
-
Specification Sheet
