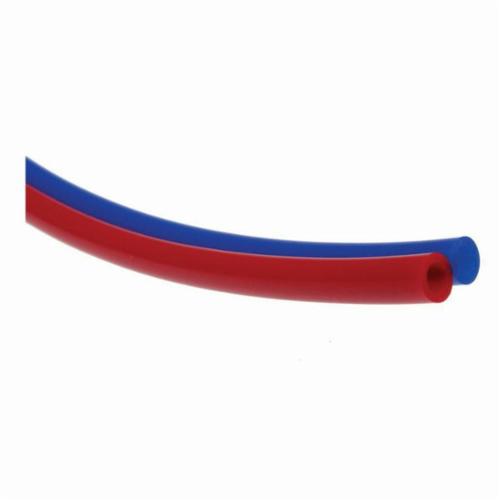

Coilhose® PT0404-100RB Bonded Standard Polyurethane Tubing, 0.16 in ID x 1/4 in OD x 100 ft L x 0.045 in THK Wall, 95A Polyurethane, Domestic
Coilhose® PT0404-100RB Bonded Standard Polyurethane Tubing, 0.16 in ID x 1/4 in OD x 100 ft L x 0.045 in THK Wall, 95A Polyurethane, Domestic
-
BrandCoilhose®
-
UPC029292502214
-
Manufacturer Part NumberPT0404-100RB
-
CountryUSA
-
Temperature Rating-40 to 165 deg F
-
Material95A Polyurethane
-
ColorBlue/Red
-
TypeBonded Standard
-
Wall Thickness0.045 in
-
Working Pressure175 psi at 75 deg F
-
Inside Diameter0.16 in
-
Domestic/ImportDomestic
-
Outside Diameter1/4 in
-
Length100 ft
- Polyurethane tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water
- Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking
- In addition, it stands up very well to fuels and oils
- Compatible with Coilock fittings and poly-tube fittings
- 28 in hg Vacuum
- 1/8 - 9/16 in +/- 0.005 - 3/4 in +/- 0.007 in Dia tolerance
- UV Stabilized
-
UNSPSC40183008
-
Package Description1/PK
-
Standards/ApprovalsNSF61|UL94HB
-
