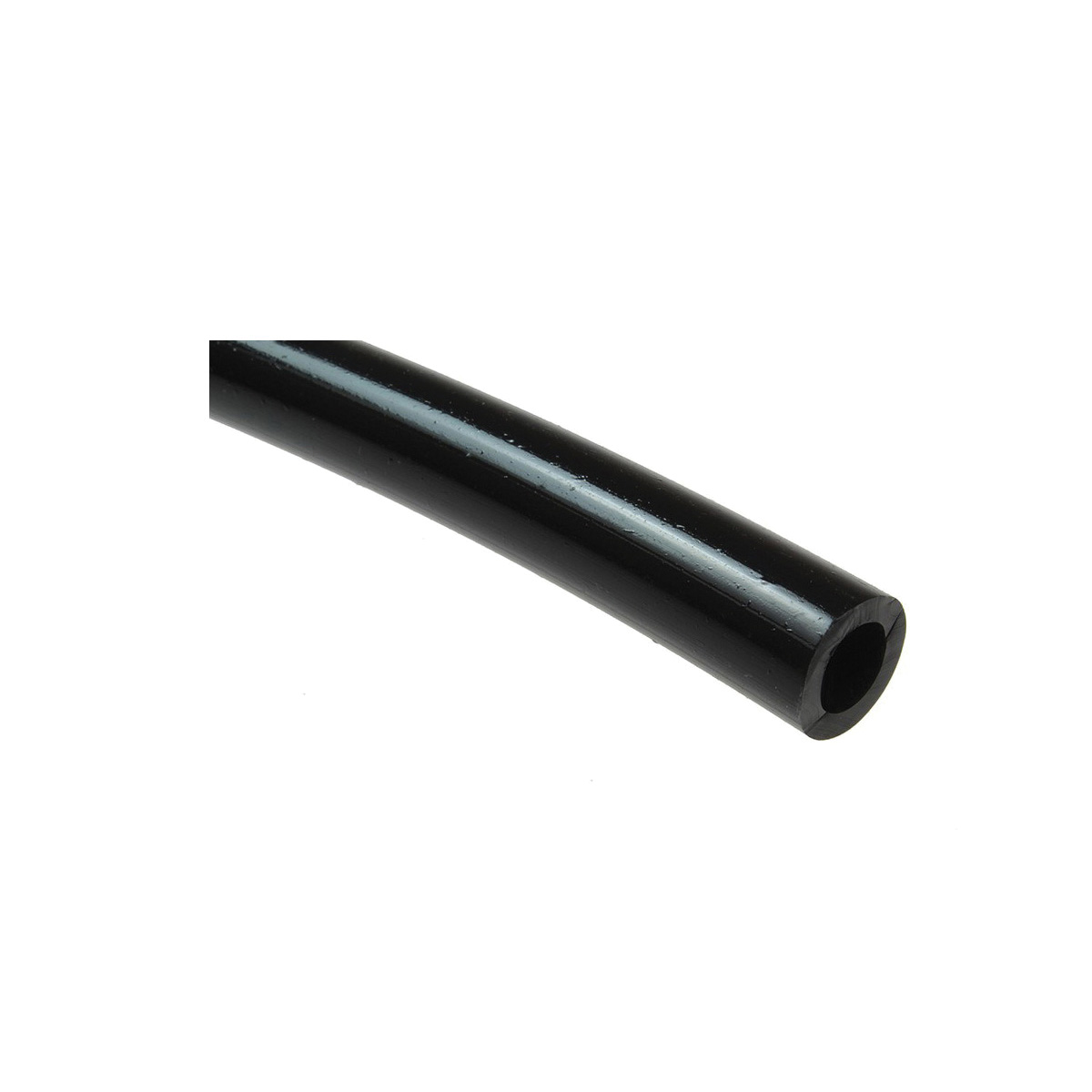

Coilhose® PE0610-100K Tubing, 4 mm ID x 6 mm OD x 100 ft L x 1 mm THK Wall, Polyethylene
Polyethylene is one of the most popular choices for low pressure tubing due to its resistance to most chemicals and solvents, good flexibility and economical cost. Our PE Tubing is manufactured from high quality resins and extruded to close tolerances. We offer five popular sizes. Compatible with Coilock Fittings and Poly-Tube Fittings.
-
BrandCoilhose®
-
UPC029292900478
-
Manufacturer Part NumberPE0610-100K
-
CountryUSA
-
Temperature Rating-40 to 150 deg F
-
MaterialPolyethylene
-
ColorBlack
-
Wall Thickness1 mm
-
Working Pressure175 psi
-
Inside Diameter4 mm
-
Outside Diameter6 mm
-
Length100 ft
- 175 psi working at 75 deg F
- Vacuum rating: to 28 in Hg
- -0.1 mm Dia tolerances
- 44 shore D hardness
- 3 to 1 safety factor working pressure
-
UNSPSC40183008
-
Standards/ApprovalsPDA Compliant
-
