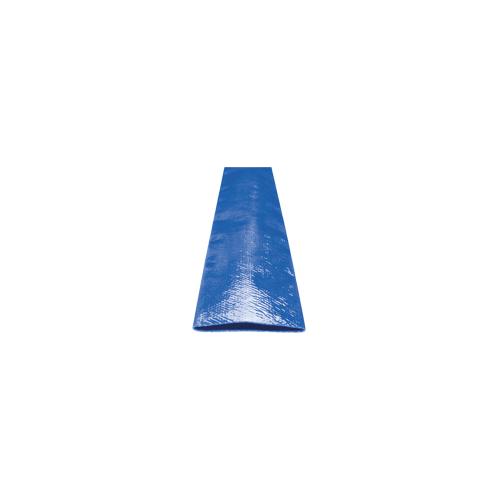

Mine-Mill 10"LAYFLAT PVC BLUE DISCHARGE HOSE M-M HOSE-2440
Kuriyama VF1000X100 VF Layflat Suction Hose, 10 in Nominal, Hose End Style, 100 ft L, 35 psi Working, Polyester Yarn, Import
-
BrandKuriyama
-
UPC822353035726
-
Manufacturer Part NumberVF1000X100
-
CountryUSA
-
Temperature Rating-20 to 76 deg F
-
MaterialPolyester Yarn
-
ColorBlue
-
TypeLayflat
-
Wall Thickness0.118 in
-
Nominal Size10 in
-
SeriesVF
-
Working Pressure35 psi
-
Inside Diameter10.118 in
-
Domestic/ImportImport
-
Length100 ft
-
End StyleHose
- Durable PVC Material - Provides good abrasion, chemical and UV resistance
- Drip Irrigation - Hose designed to be punched easily without tearing
- Smooth PVC Tube - Provides low friction loss
- PVC Cores - Hoses coiled around durable PVC cores providing for easy unwinding
- Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses
-
Package DescriptionEACH
-
Catalog
-
Specification Sheet
