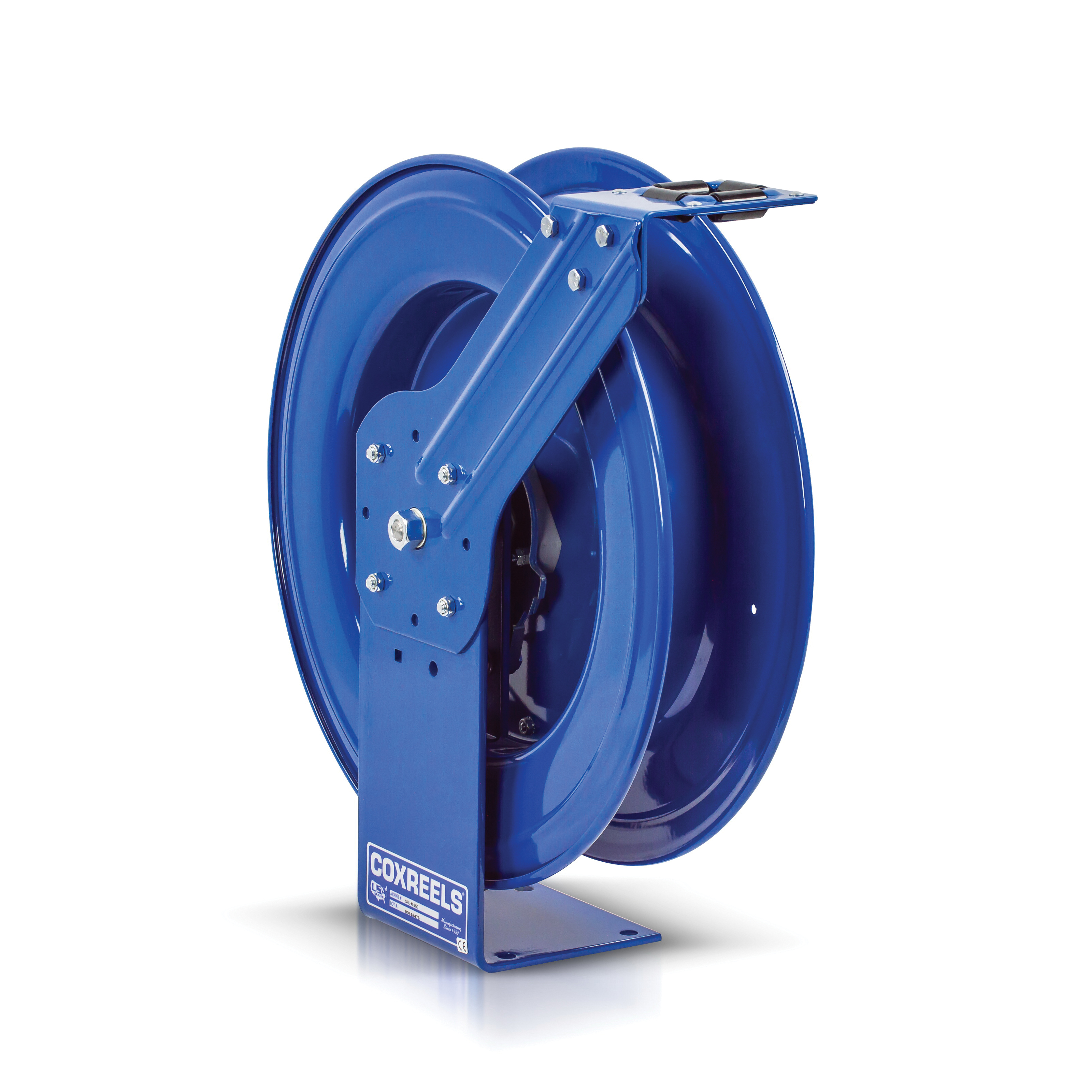

COXREELS® SHL-N-350 1-Pedestal Heavy Duty Low Pressure Spring Driven Hose Reel, 3/8 in ID x 5/8 in OD x 50 ft L Hose, 300 psi Pressure, Import
COXREELS® SH Series Super Hub™ Spring Driven Hose Reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. COXREELS® original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.
-
BrandCOXREELS®
-
Manufacturer Part NumberSHL-N-350
-
CountryCanada
-
FinishCPC™ Powder Coated
-
MaterialSteel
-
Pressure Rating300 psi
-
ColorBlue
-
Type1-Pedestal Heavy Duty Low Pressure
-
Mounting TypeBench/Ceiling/Floor/Vehicle
-
Seal TypeNitrile
-
SeriesSH Series
-
Hose Capacity3/8 in ID x 5/8 in OD x 50 ft L
-
Dimensions19-1/2 in L x 8-1/4 in W x 21-1/4 in H
-
Domestic/ImportImport
-
Drive TypeCartridge Style Spring Motor
-
Swivel MaterialBrass
- Swivel - machined from solid brass 90 deg full flow NPT swivel for simple seal maintenance and fast and easy hose installation
- No need to remove the reel from its mount
- Cartridge motor - lubricated and enclosed cartridge style motor is easily removable for safe and convenient maintenance
- CNC spun disc - heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
- 1/4 in steel base - sturdy single pedestal design with solid one-piece steel base and support post, no weld, for maximum stability
- Equipped with COXREELS® exclusive Super Hub™ dual axle support
- Multi-position guide arm - versatile multi-position guide arm adjusts to wall, floor, ceiling and vehicle mounting positions
- Long-lasting, chip-resistant and rust inhibiting CPC™ powder coat finish and sturdy permanently lubricated precision bearing
- Without hose
-
Alternative Part Number7600 OLP
-
UNSPSC40142022
-
Standards/ApprovalsREACH 1907/2016 of EU|RoHS 2011/65/EU|RoHS 2015/863/EU|CSA C22.2 File No. 308-14/21-14/E231674|CE Certified|PROP65: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to - www.p65warnings.ca.gov
-
Warranty2 years Limited
-
