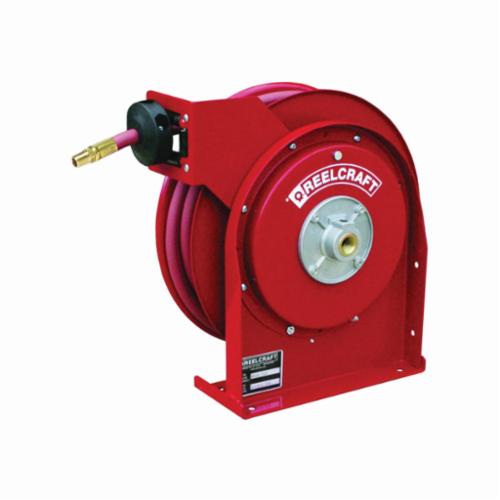

Reelcraft 1/4" X 35' AIR/WATER HOSE REELS REC 4435-OLP
Series 4000, 5000 and 5005 reels are all steel construction and compact for a wide range of applications with critical space requirements. A full flow shaft and swivel assures maximum product delivery. Guide arm adjusts to two positions.
-
BrandReelcraft®
-
UPC699567000129
-
Manufacturer Part Number4435 OLP
-
CountryUSA
-
FinishPowder Coated
-
MaterialReinforced Stainless Steel
-
Pressure Rating300 psi
-
Reel Diameter12-3/8 in
-
Reel Width2-1/2 in
-
ColorRed
-
TypeLow Pressure Premium Duty
-
Mounting TypeCeiling/Floor/Wall
-
Seal TypeBuna-N
-
Series4000
-
Hose Capacity1/4 in ID x 19/40 in OD x 35 ft L
-
Dimensions12-7/8 in H x 12-3/8 in W x 5-5/8 in D
-
Domestic/ImportDomestic
-
Drive TypeRetractable Spring
-
Swivel MaterialSteel/Zinc Dichromate
- Reinforced steel - the robotically welded steel base offers maximum strength and consistent quality
- All steel components are powder coated for maximum corrosion resistance
- Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
- Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Quiet speed latch - the latch cam is designed for reliable quiet operation
- 1/4 in MNPT hose outlet
- 3/8 in FNPT reel inlet
- 150 deg F maximum temperature rating
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
-
Owners/User Manual
-
Catalog
