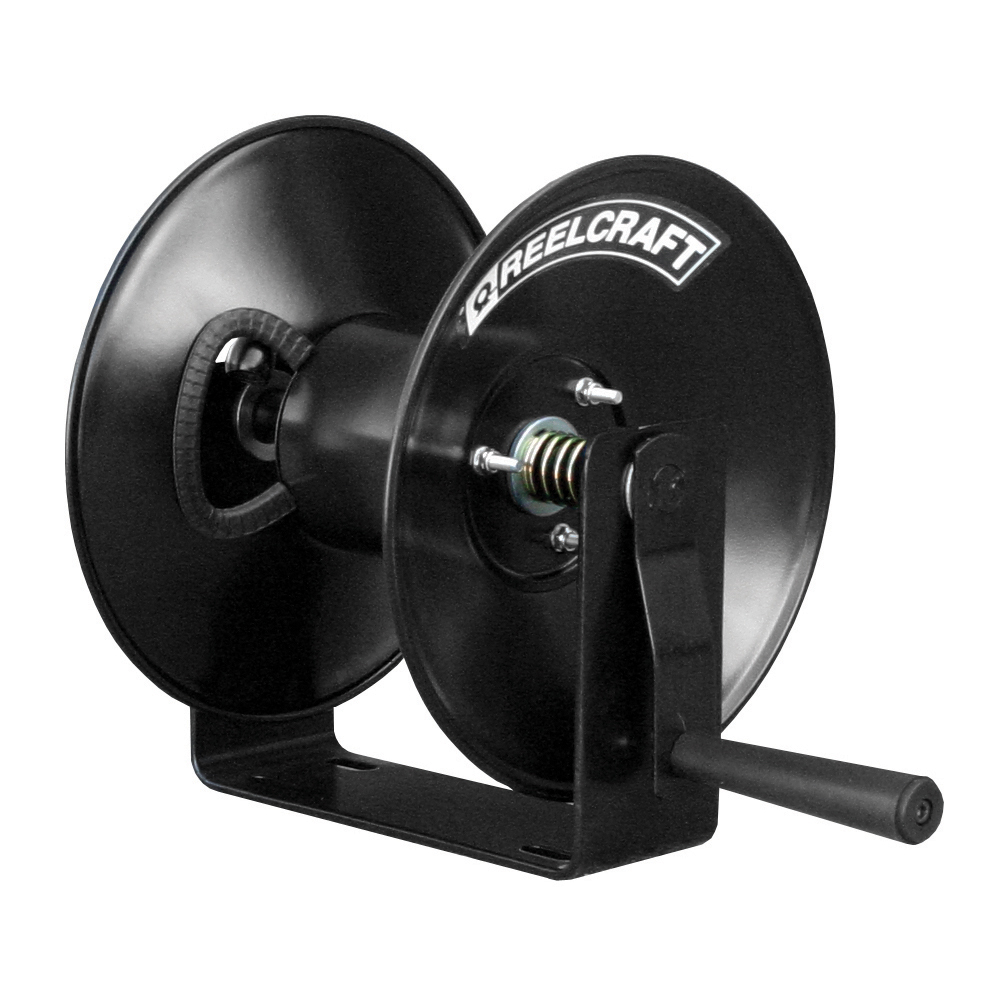

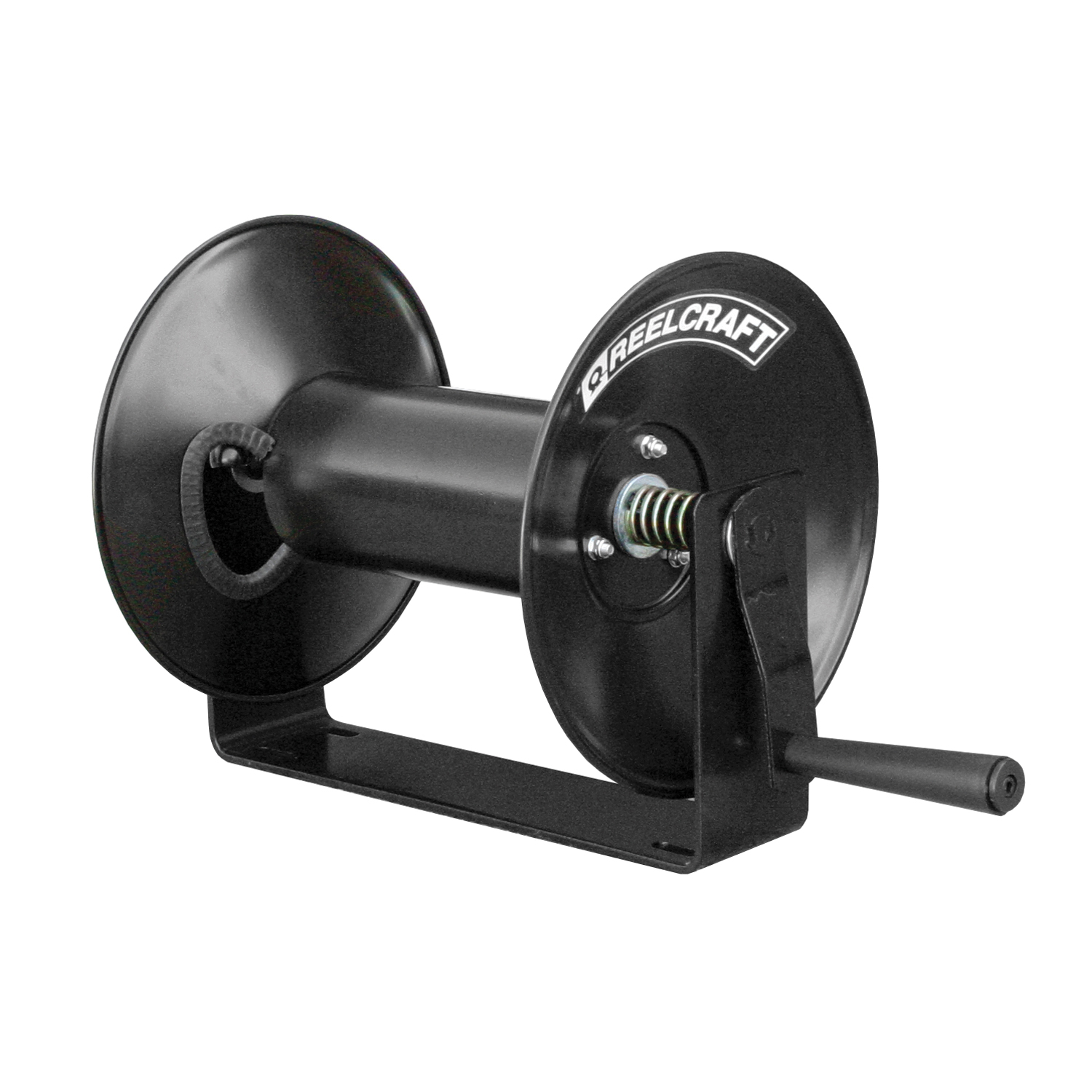

Reelcraft 3/8" CRANK-STYLE HOSE REELS REC CU-6100-LN
The series CU reels are designed for lighter duty applications that require longer lengths of low pressure air/water hose. Hand crank with a balanced brass swivel and brass inlet series CU is the product of lighter weight components and forward thinking design. An economical choice for storing and retrieving hose.
-
BrandReelcraft®
-
UPC699567006329
-
Manufacturer Part NumberCU6100LN
-
CountryUSA
-
FinishPowder Coated
-
Pressure Rating300 psi
-
Reel Diameter10-1/2 in
-
Reel Width2 in
-
ColorBlack
-
TypeLight Duty
-
Mounting TypeBench/Floor/Truck/Wall
-
SeriesCU Series
-
Hose Capacity3/8 in ID x 3/5 in OD x 100 ft L
-
Dimensions11-1/2 in H x 21-1/8 in W x 10-1/2 in D
-
Drive TypeT-Hand Crank
-
Swivel MaterialBrass
- Individually powder coated components offer the maximum protection from premature corrosion
- Simple and effective design allows the economical storage and retrieval of hose
- Rotating handle allows the hose to be retrieved with ease
- 4 slotted holes in the base make the reel easy to mount and adjust
- 3/8 in NPTF female inlet, 3/8 in NPTF female outlet
- 250 deg F maximum temperature rating
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 184W10 |
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov
-
