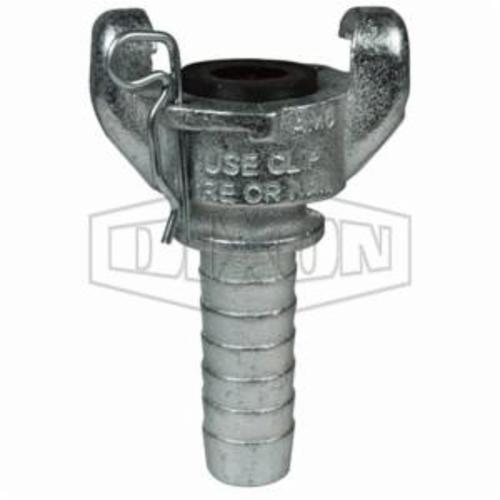

DIXON AM-11 HE Two Lug Hose Coupling, 1 in Nominal, Steel, Zinc Plated, Import

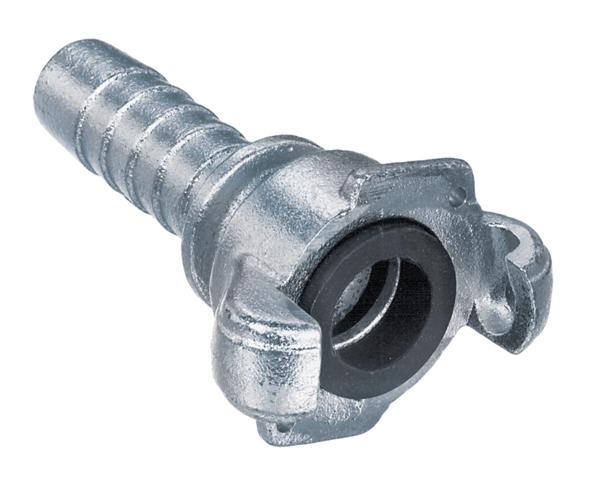

Kuriyama HE-100 HE Two Lug Hose Coupling, 1 in Nominal, Steel, Zinc Plated, Import
-
BrandKuriyama
-
Manufacturer Part NumberHE-100
-
CountryUSA
-
UPC822353032008
-
MaterialSteel
-
Pressure Rating150 psi
-
Nominal Size1 in
-
SeriesHE
-
Dimensions2-1/2 in W
-
Domestic/ImportImport
-
Length4-25/32 in
-
Temperature Rating70 deg F
-
FinishZinc Plated
-
TypeTwo Lug
- Rubber seal
- Supplied with AWR4 rubber washer
- Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
- Only one air king safety clip or wire type retainer is required for each air king universal coupling
- The use of an air king safety clip or wire type retainer is necessary to ensure air king universal couplings will not become accidentally disconnected
- To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose
- Pressure rating given at ambient temperature 70 deg F
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 58DT51 |
-
UNSPSC40141734
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65:This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm
-
