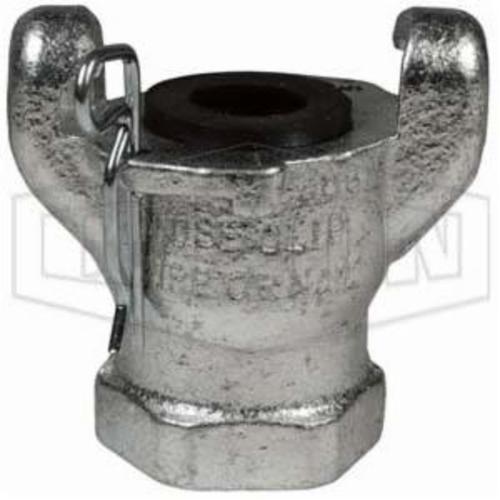

Dixon® AMC1 Air King™ Universal Hose End, 1/4 in, FNPT, Iron, Domestic
Dixon® AMC1 Air King™ Universal Hose End, 1/4 in, FNPT, Iron, Domestic
-
BrandDixon®
-
Manufacturer Part NumberAMC1
-
CountryUSA
-
MaterialIron
-
Pressure Rating150 psi
-
Nominal Size1/4 in
-
SeriesAir King™
-
Dimensions2-1/2 in W
-
Domestic/ImportDomestic
-
Length2-13/32 in
-
End StyleFNPT
- Rubber seal
- Supplied with AWR4 rubber washer
- Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
- Only one air king safety clip or wire type retainer is required for each air king universal coupling
- Air king is for air and water service only
- Never use any air king coupling for steam service!
- The use of an air king safety clip or wire type retainer is necessary to ensure air king universal couplings will not become accidentally disconnected
- To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose
- Pressure rating given at ambient temperature 70 deg F
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | DAMC1 |
-
UNSPSC40141734
-
Package Description25/BX
-
Standards/ApprovalsA-A-59553|Mil Spec. WWC-633D
-
