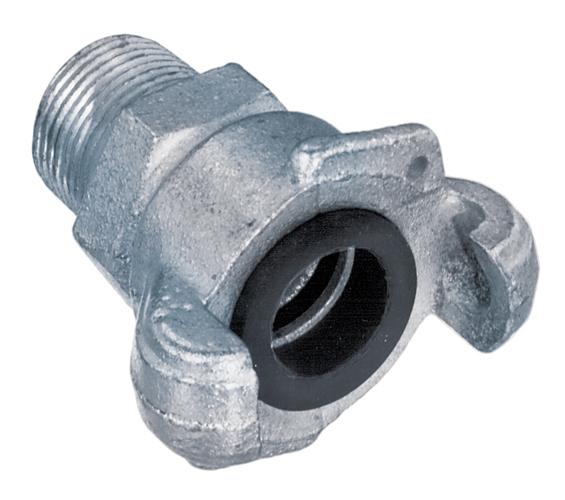

Kuriyama ME-38 ME Two Lug Threaded Coupling, 3/8 in Nominal, Male NPT End Style, Steel, Zinc Plated, Import

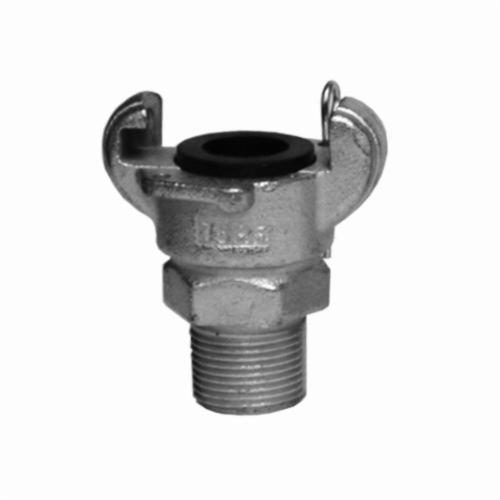

HCI Preferred Supplier 66005 Twist Claw Hose End, 3/8 in, MNPT, Ductile Iron/Malleable Iron
-
BrandKuriyama
-
Manufacturer Part NumberME-38
-
CountryUSA
-
UPC822353032053
-
MaterialSteel
-
Pressure Rating150 psi
-
TypeTwo Lug
-
Nominal Size3/8 in
-
Hex Size9/16 in
-
SeriesME
-
Dimensions2-1/2 in W
-
Domestic/ImportImport
-
Length2-9/16 in
-
End StyleMale NPT
-
Temperature Rating70 deg F
-
FinishZinc Plated

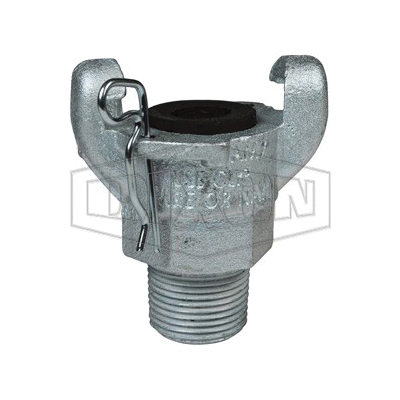

- Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
- Air king meets pressure requirements as specified in A-A-59553 commercial item description superseding mil Spec.WWC-633D
- Supplied with rubber washer, part no AWR4
- Rubber seal
- Never use any air king coupling for steam service!
- The use of an air king safety clip or wire type retainer is necessary to ensure air king universal couplings will not become accidentally disconnected
- To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose
- 150 psi at ambient temperature 70 deg F
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
-
UNSPSC40141734
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65:This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm
-
IncludesSafety Clip
-
Catalog
-
Specification Sheet
