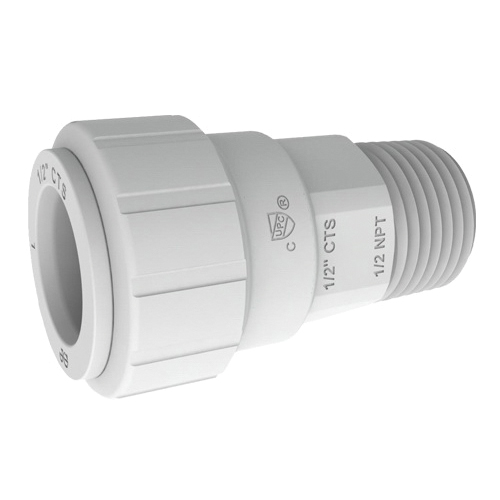

John Guest® PSEI012024 Male Connector, Adapter, 1/2 in Nominal, CTS x MNPT End Style, Polysulfone, Domestic
The Speedfit secure range of fittings ensures a secure connection when adapting Speedfit Pipe or copper to threaded applications. To install, always use PTFE tape when preparing thread (refer to tape manufacturers recommendations), working up the full thread length. The fitting can be tightened using a spanner on the hexagon area at the middle of the component. Do not over-tighten the fitting. To lock pipe in place, push the pipe into the fitting and turn the nut clockwise. Should the need arise to release the pipe, turn the locking nut anti-clockwise, push the collet towards the fitting and pull the pipe to release.
-
BrandJohn Guest®
-
UPC665628036109
-
Manufacturer Part NumberPSEI012024
-
CountryUSA
-
Temperature Rating200 deg F
-
MaterialPolysulfone
-
Fitting/Connector TypeAdapter
-
Pressure Rating160 psi
-
ColorWhite
-
Nominal Size1/2 in
-
Domestic/ImportDomestic
-
End StyleCTS x MNPT
- Speedfit fittings can be used with: PEX, Copper and CPVC Pipes conforming to ASTM Standards
- Speedfit fittings cannot be used on stainless steel pipe
- Fittings are manufactured from high quality engineered plastic with EPDM O-Rings
- Speedfit push-in system is suitable for hot and cold water plumbing applications
- Working pressures and temperatures: 160 psi at 73 deg F, 100 psi at 180 deg F, 80 psi at 200 deg F
- Lead free
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | JPSEI012024 |
-
UNSPSC40183110
-
Package Description80/BX
-
Standards/ApprovalscUPC Listed|ESR No 1931|NSF 61
-
