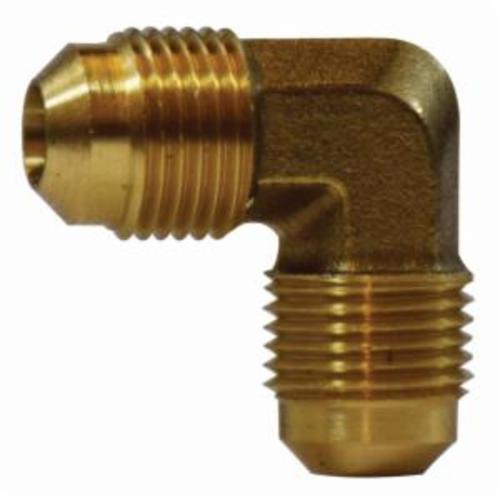

HCI Preferred Supplier 10409 90 deg Elbow, 1/2 in Nominal, SAE Male Flare Threaded UNF End Style, CA377 Brass
HCI Preferred Supplier 10409 90 deg Elbow, 1/2 in Nominal, SAE Male Flare Threaded UNF End Style, CA377 Brass
-
BrandGeneric
-
Manufacturer Part Number10409
-
CountryUSA
-
Temperature Rating-65 to 250 deg F
-
MaterialCA377 Brass
-
Fitting/Connector Type90 deg Elbow
-
Method of ManufactureForged
-
Nominal Size1/2 in
-
Dimensions1.16 in L
-
End StyleSAE Male Flare Threaded UNF
- Good vibration resistance, use long nut when greater vibration resistance is required
- /- 0.03 tolerance on all dimensions
-
UNSPSC40183101
-
Package Description1/PK
-
Standards/ApprovalsASA|ASME/MS and SAE
-
Catalog
-
Full Engineering Drawing
