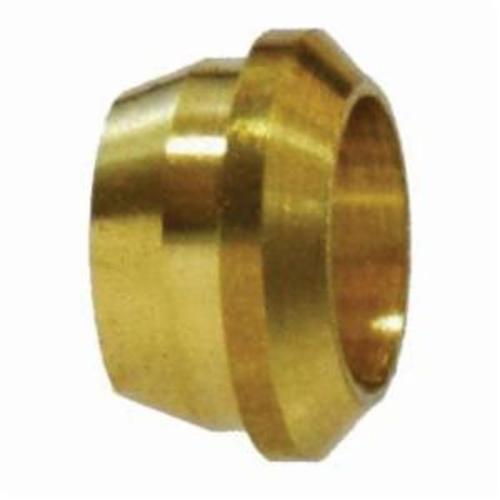

HCI Preferred Supplier 27001 Self-Align Sleeve, 1/8 in, Compression, Brass
HCI Preferred Supplier 27001 Self-Align Sleeve, 1/8 in, Compression, Brass
-
BrandGeneric
-
Manufacturer Part Number27001
-
CountryUSA
-
Temperature Rating-65 to 250 deg F
-
MaterialBrass
-
Fitting/Connector TypeFerrule
-
Pressure Rating400 psi
-
Nominal Size1/8 in
-
Dimensions0.19 in L x 0.25 in H
-
Domestic/ImportImport
-
End StyleCompression
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- Soft plastic tubing requires support inside
-
UNSPSC40183100
-
Package Description1/PK
-
Standards/ApprovalsASA|ASME and SAE
-
Catalog
-
Full Engineering Drawing
