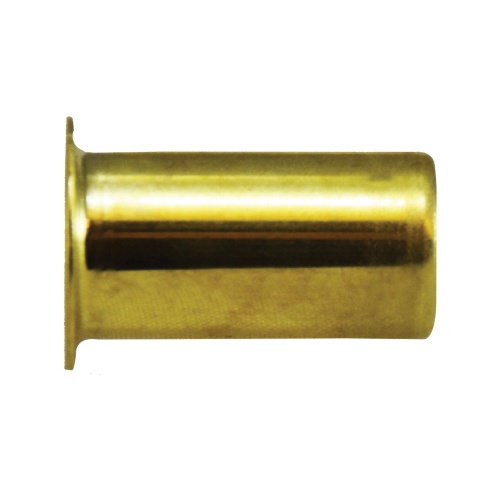

HCI Preferred Supplier 22015 Sleeve Tube Insert, 3/4 in, Compression, Brass
HCI Preferred Supplier 22015 Sleeve Tube Insert, 3/4 in, Compression, Brass
-
BrandGeneric
-
Manufacturer Part Number22015
-
CountryUSA
-
Temperature Rating-65 to 250 deg F
-
MaterialBrass
-
Fitting/Connector TypeInsert
-
Pressure Rating100 psi
-
TypeSleeve
-
Nominal Size3/4 in
-
Dimensions0.563 in OD x 1.03 in L
-
End StyleCompression
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
-
UNSPSC40183100
-
Package Description1/PK
-
Standards/ApprovalsASA|ASME and SAE
-
Catalog
-
Full Engineering Drawing
