DIXON 3" S/STEEL CAM AND GROOVE COUPLERS DXN 300-C-SS

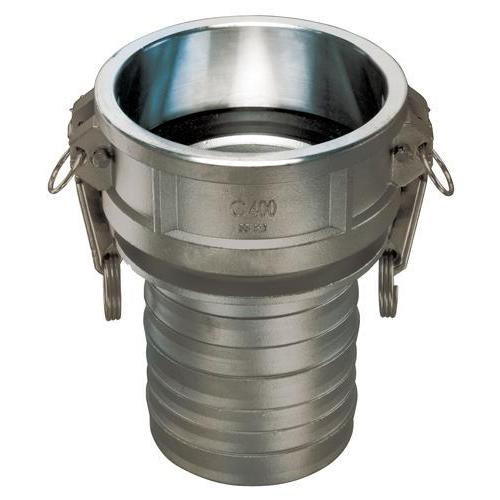

Dixon® 300-C-SS Type-C Cam and Groove Coupler, 3 in Nominal, Female Coupler x Hose Shank End Style, 316 Stainless Steel, Domestic
-
BrandKuriyama
-
UPC822353033890
-
Manufacturer Part NumberSS-C300
-
CountryUSA
-
MaterialStainless Steel
-
Fitting/Connector TypeAdapter
-
Pressure Rating150 psi
-
TypePart C
-
Nominal Size3 in
-
Domestic/ImportImport
-
End StyleFemale Coupler x Hose Shank
-
Length6-7/16 in
- 1/2 in x 1/2 in are not specified under Mil Specs
- All sizes except 1/2 in and 5 in comply with Mil-Spec A-A-59326 for material and interchangeability
- Composition test certificate is available upon request
- Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2 in
- Stainless steel alloy chemical composition is analyzed on every melt
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Only use the crimp style shanks with the crimp style sleeves and ferrules, due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
-
Package DescriptionEACH
-
Standards/ApprovalsMil-Spec A-A-59326|ASTM spec|PROP65:This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm
-
UNSPSC40141734
-
WarrantyLimited
-
Catalog
-
Specification Sheet
-
Technical Bulletin
